DATAEAGLE 4000 Series - DATAEAGLE X-Treme; Connections

3 Description
3.4 DATAEAGLE X-treme
3.4.1 Connections

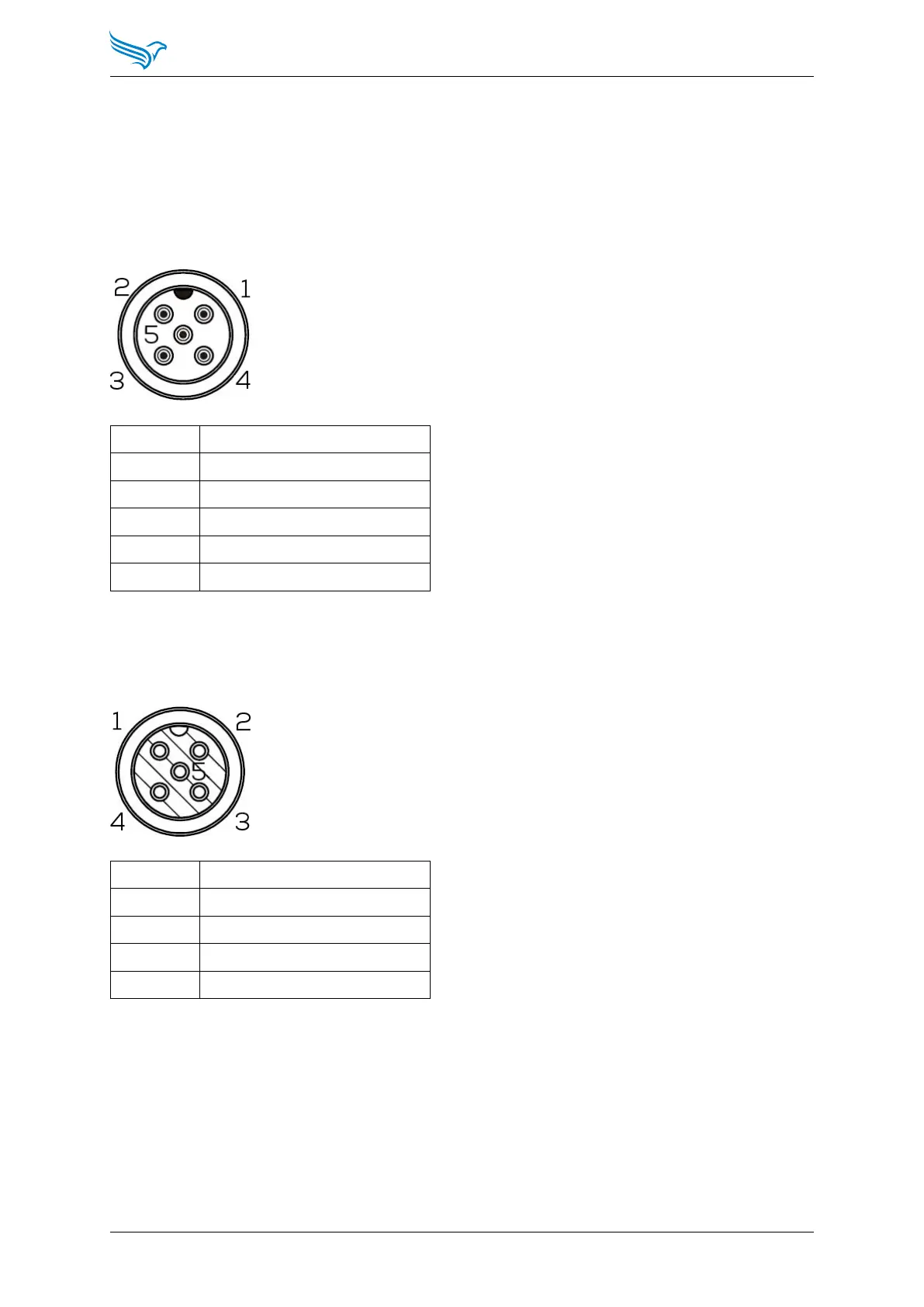

Power supply
M12, A-coded, 5 pin (male)
PIN Description
1 +24 VDC
2 not connected
3 GND
4 not connected
5 PE
Ethernet Interface
M12, D-coded, 4 pin (female)
PIN Description
1 TD+
2 RD+
3 TD-
4 RD-
