5 Installation

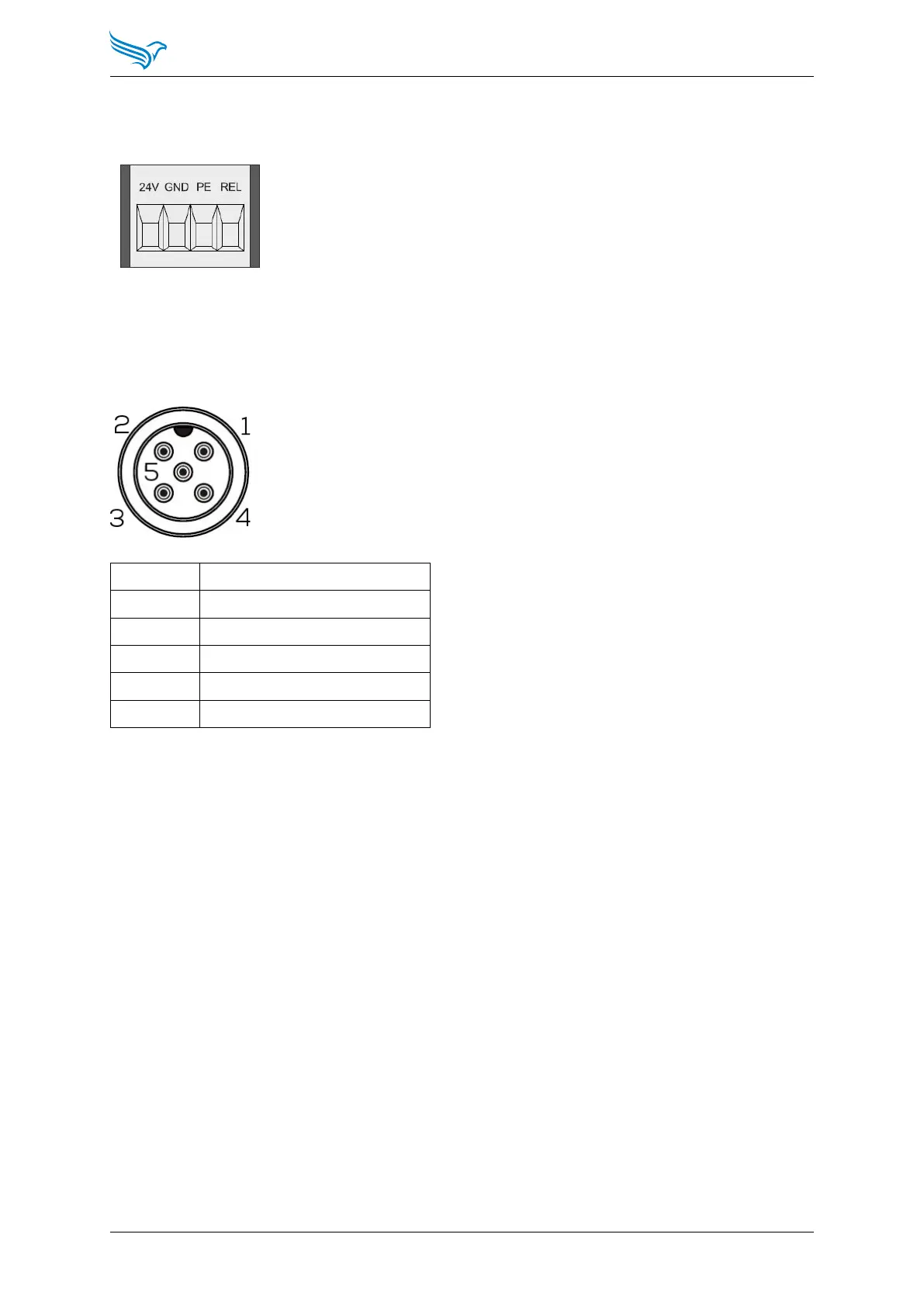

Power supply - DATAEAGLE Compact
Clamps Description
24V 24 V DC
GND 0V
PE PE
REL Switching output
Power supply - DATAEAGLE X-treme
M12, A-coded, 5 pin (male)
PIN Description
1 +24 VDC
2 not connected
3 GND
4 not connected
5 PE
