System Connections
Quick Reference Guide 7
Non-Ethernet Connection

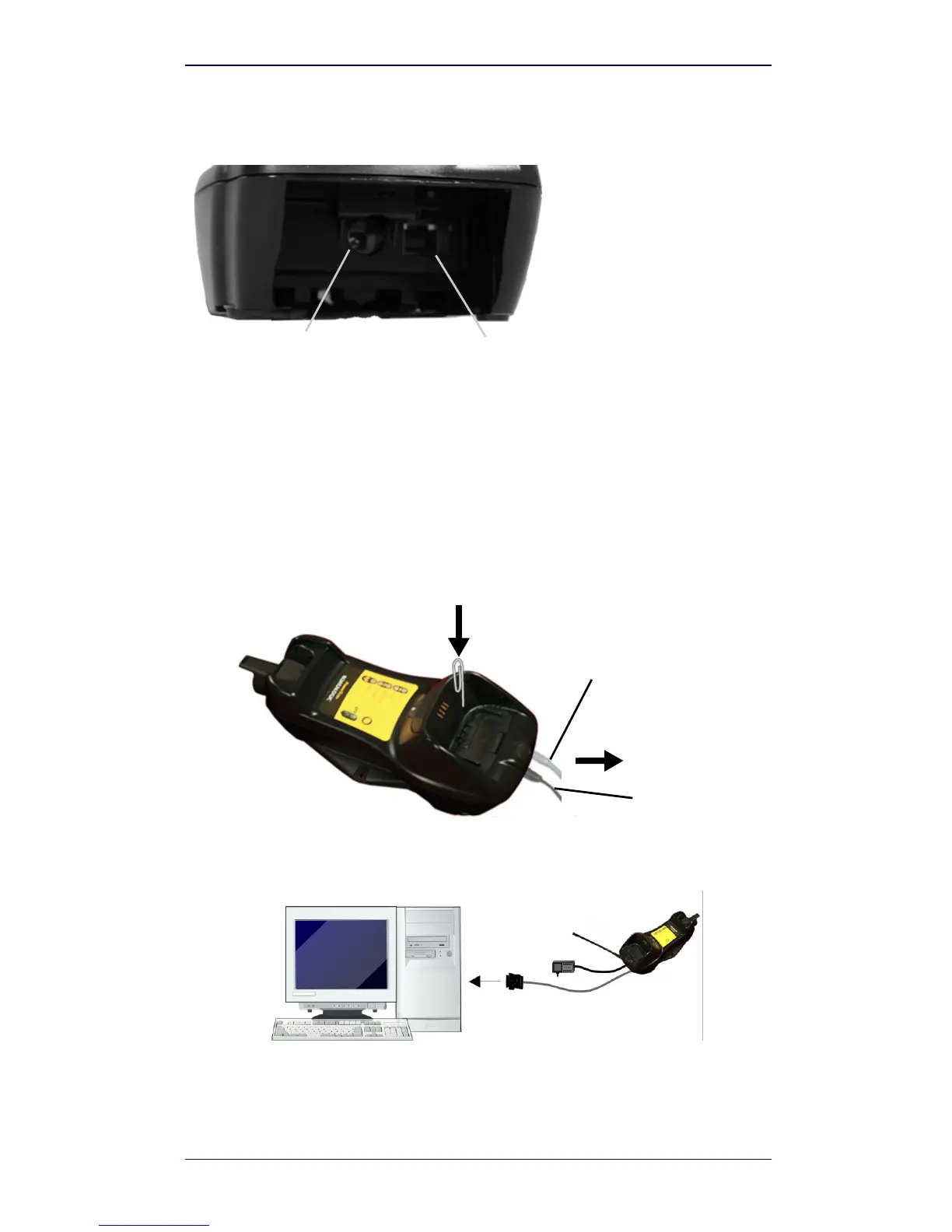

The BC9180 cradle provides a multi-interface connector and a power supply
connector as shown:
Connecting and Disconnecting the Multi-Interface Cable
The BC9180 can be connected to a Host by means of a multi-interface cable,
which must be simply plugged into the Host connector, visible on the front
panel of the cradle.
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle. Push down on
the clip while unplugging the cable. Refer to the following figures:
RS232
