Mounting the BC9180
Quick Reference Guide 3
• Desktop mount bracket has ribs to keep the scanner in place when
the cradle is horizontal
• Wall mount bracket contains bosses to keep the scanner in place
when the cradle is vertical.
To change the Bracket:
1. Remove the screw holding the Bracket in place. Retain the screw for
re-use.
2. Carefully lift off the Bracket.
3. Install the other bracket by first slipping the end tab into place on
the base station, then easing the tabs (shown in Figure 1 on page 2)
into place on the sides.
4. Replace the screw to secure the Bracket to the Base Station.

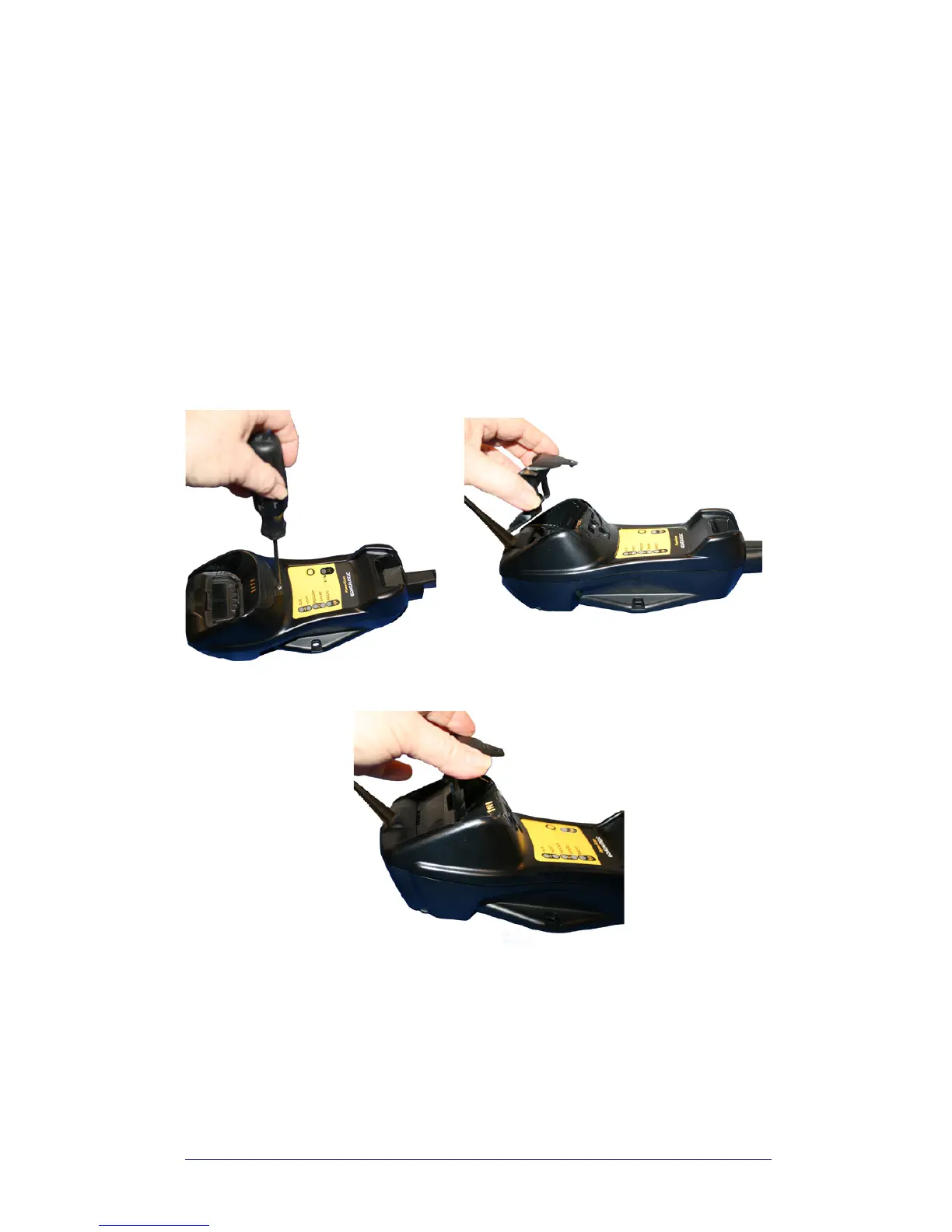

Figure 2. Changing the Bracket
