Mounting the BC9180 Cradle
4 BC 9xx0 Cradle
Permanent Mounting
For either desktop or wall mounting, the cradle can be fastened directly to a
flat surface using screws (not included).

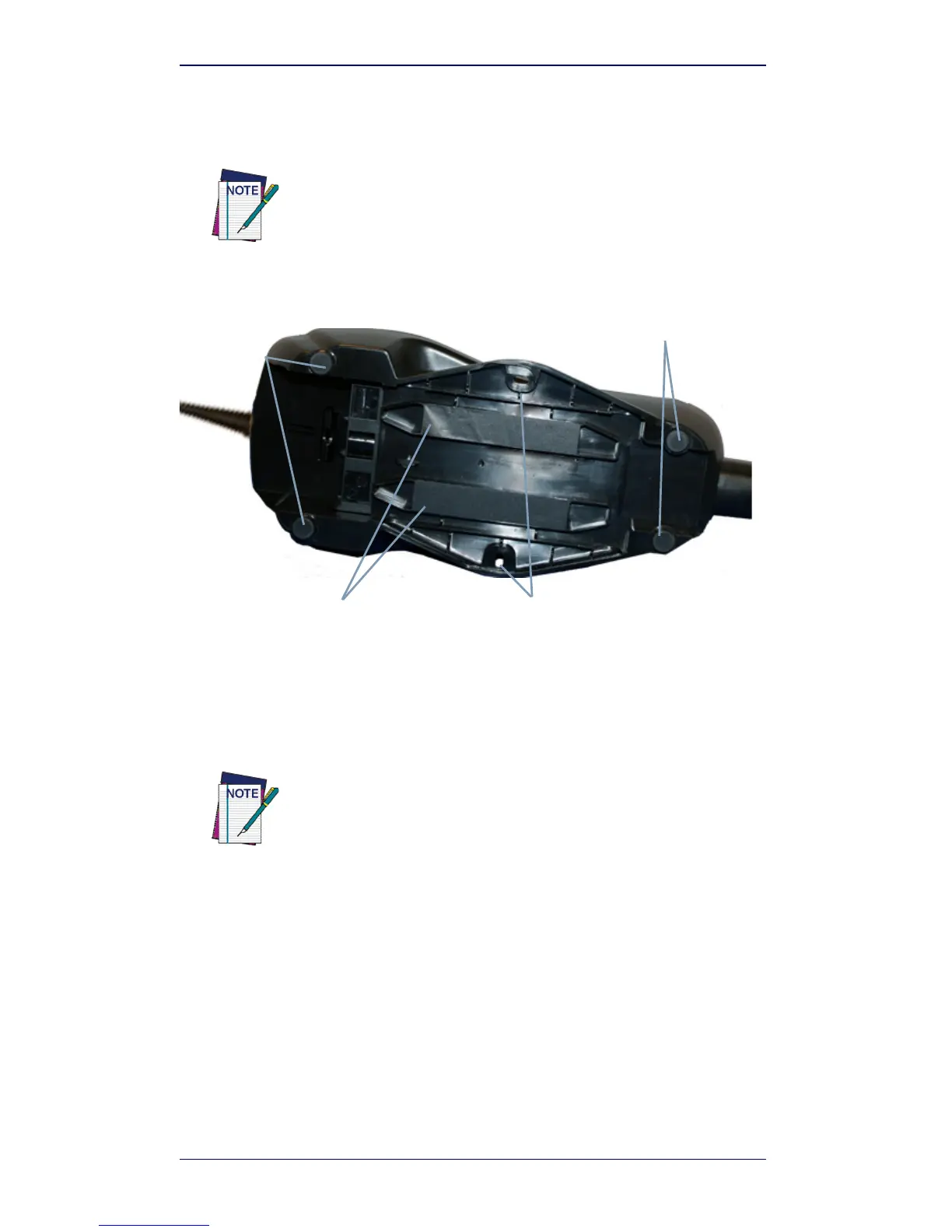

Figure 3. Base Station Bottom
Mounting for Portable Use
If portability of the cradle is required, the metal plate must be used. There are
two ways this can be done: (1) by first mounting the metal plate on a flat sur-
face so the cradle can be slid off and on, or (2) mounting the metal plate onto
the back of the base station and then screwing both to the desired surface.
Mounting the Metal Plate
1. Affix the metal plate onto the desired mounting surface using the
two center screw holes (see Figure 4 on page 5).
2. Remove the adhesive strips protecting the mounting tabs on the
cradle, shown in Figure 3.
3. Slide the tabs on the back of the cradle onto the metal plate as
shown in Figure 4.
4. After aligning the tabs, push up to lock into place.
When mounting on drywall, the base should be screwed to a wall
stud or supporting beam for additional support.
For additional security on wall mounting, it is strongly recom-
mended that the cradle be secured into place using two auxiliary
screws through the mounting holes on the side.
