DX8200 CONTROLLER
QUICK GUIDE
6

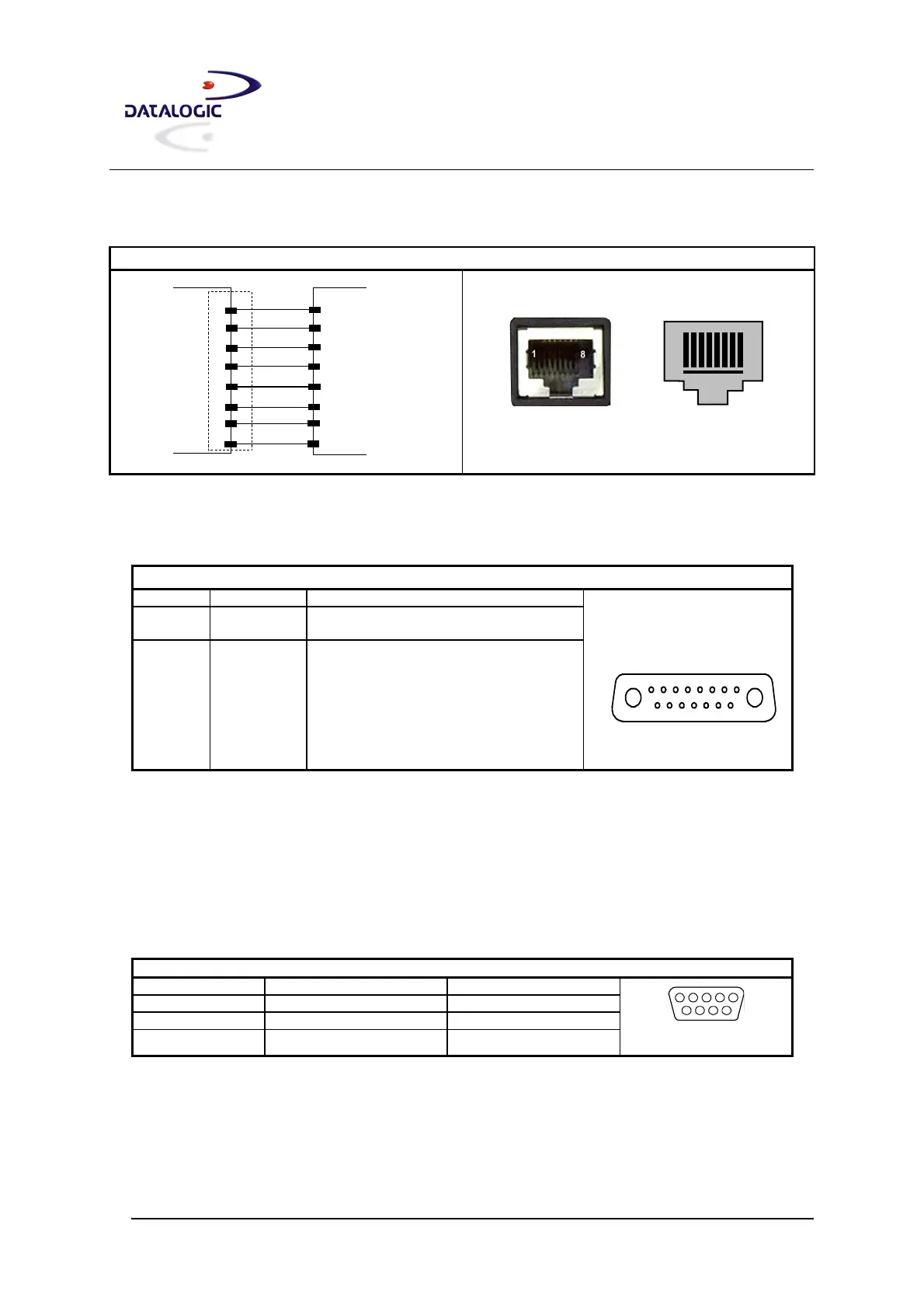

Ethernet Connector
The Ethernet Connector can be used for Host interface.
Ethernet Connector Pinout
DX8200
5
HUB / SWITCH
3
4
2
1
6
5
3
4
2
1
6
7
8
7
8
RX+
TX-
TX+
RX-
n. c.
n. c.
n. c.
n. c.
n. c. = not connected
1
8
RJ45 Modular Connector
Lonworks Network Connector
This connector is used to connect the DX8200 Controller (Master) to the network of Slave scanners.
Lonworks Network Connector Pinout
Pin Name Function
A1 GND Supply Voltage (negative pin)
A2 VS Supply Voltage 20 to 30 Vdc (positive pin)
1 Shield A
3 Shield B
8 Lon A+ Lonworks A line (positive pin)
9 Lon A- Lonworks A line (negative pin)
10 Lon B+ Lonworks B line (positive pin)
11 Lon B- Lonworks B line (negative pin)
13 SYS_ENC Regenerated Encoder output
15 Refer Reference voltage of I/O circuit
A1
A2
1
1
17-pin female
Network Termination
When building a local Lonworks system the network must be properly terminated by positioning a terminator on
the last slave reader (see Connectivity).
RS232 Debug Connector
The use of this connector is reserved for Service:
RS232 Debug Connector Pinout
Pin Name Function
2 TXD Transmitted data
3 RXD Received data
5 GND Ground
5
1
6
9
9-pin female
