DS6300 OSCILLATING MIRROR MODEL
24

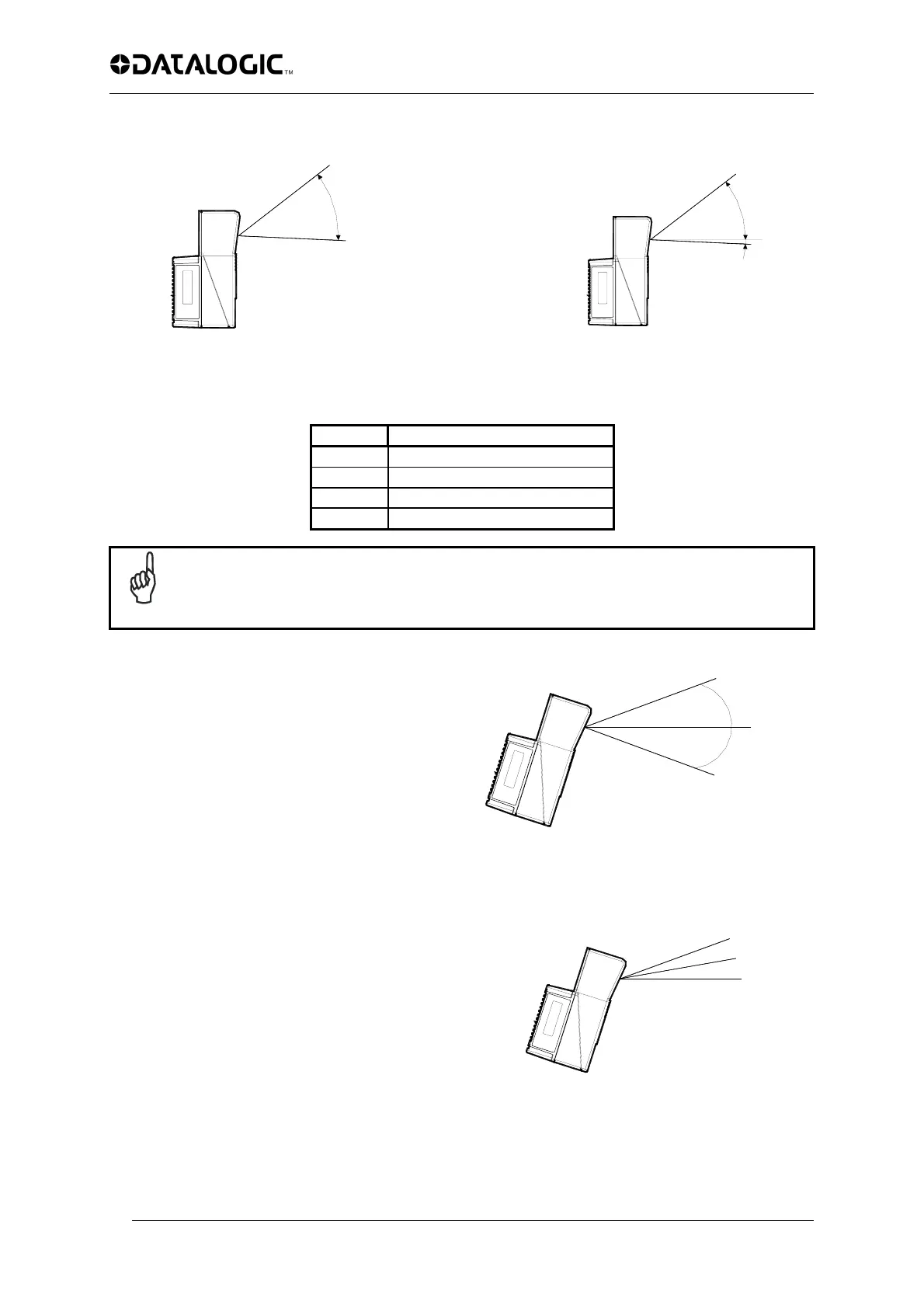

The mirror can be deflected up to 40°. Oscillation with respect to the output window median axis is asymmetrical
(see figure below).
40°
3
7
.
5
°
0°
-
2
.
5
°
Oscillating Mirror Maximum Aperture and Asymmetry
By configuring the oscillating speed up to the maximum value of 19 Hz, raster emulation can be performed for
reading fast moving objects.
Hz Max. Aperture
0-5 40°
6-10 30°
11-15 20°
16-19 10°
NOTE
By limiting the raster width to the minimum necessary, the number of scans on the reading
surface is increased.
Oscillating angles are selected in software where the
minimum and maximum angles correspond to –2.5° and
+37.5°.
The scanner can be tilted in order for the 17.5° software
setting to correspond with the 0° horizontal plane.
+17.5°
+37.5°
-2.5°
Oscillating Mirror Extreme Angle Positions
These models provide higher scanning speed (1200 scans/sec) compared to standard models and the reading
performance is not adversely effected by the oscillating mirror.
The example represents the selection of an angle of
+10° for the bottom line and an angle of +20° for the top
line (see figure beside).
+17.5°
+37.5°
+27.5°
Oscillating Mode
