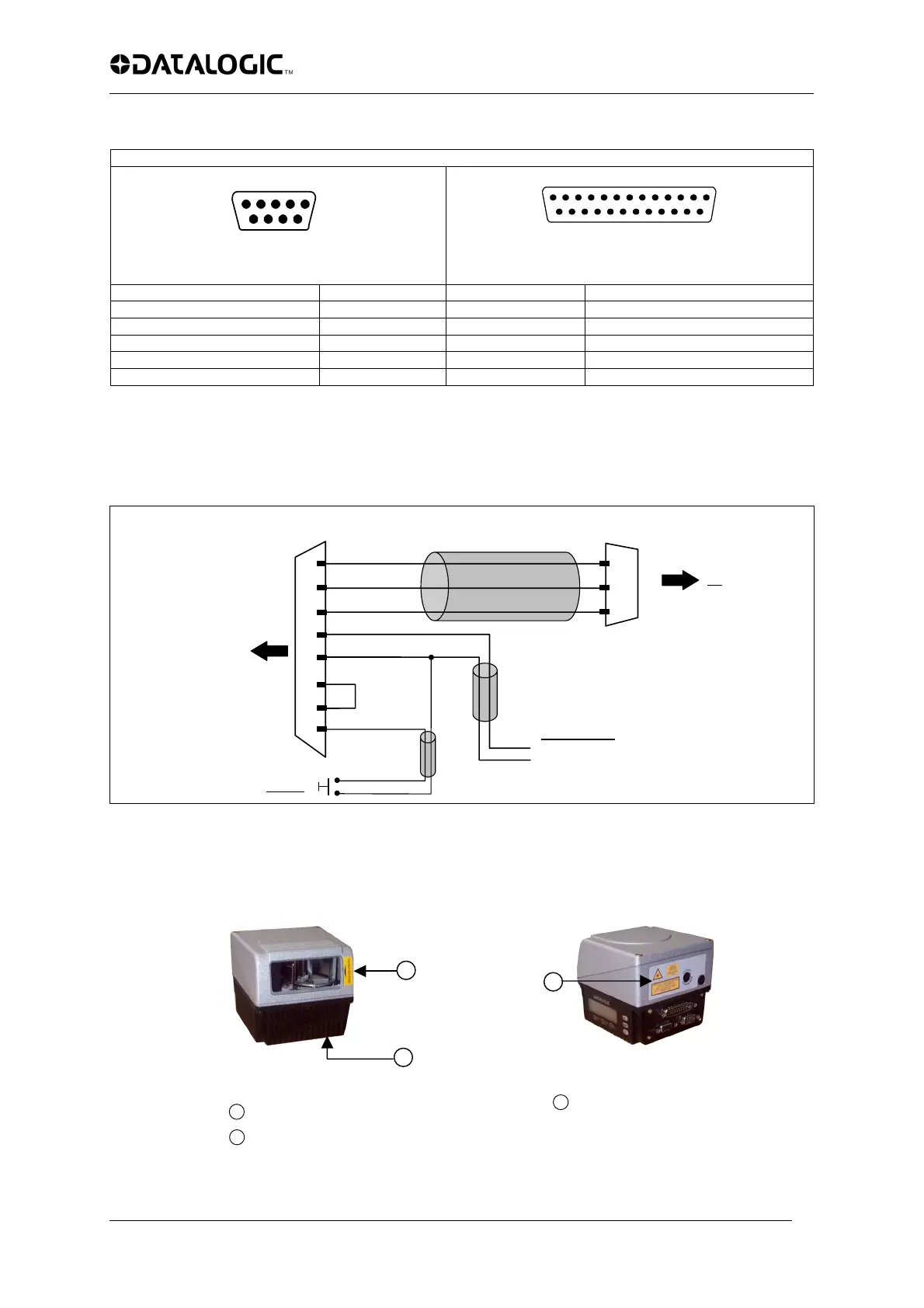

COMMON FEATURES
35
User Interface:
RS232 PC-side connections
1
5
9 6
9-pin male connector
13
25 14
1
25-pin male connector
Pin Name Pin Name
2 RX 3 RX
3 TX 2 TX
5 GND 7 GND
7 RTS 4 RTS
8 CTS 5 CTS
How To Build A Simple Interface Test Cable:
The following wiring diagram shows a simple test cable including power, external (push-button) trigger and PC
RS232 COM port connections.
25-pin D-sub female
23
20
GND
RXAUX
TXAUX
21
DS6300
25
13
GND
VS
9-pin D-sub female
GND
TX
RX
PC
2
3
5
18
9
EXT TRIG A
VS
Power Supply
VS (15 – 30 VDC)
Power GND
Trigger
EXT TRIG B
19
Compliance:
Laser Safety
Figure A
Laser Safety Label
1
Identification Label
2
Figure B
Warning and Device Class Label
1
1
2
1
