COMMON FEATURES
29
7) Use the (up arrow) and (down arrow) key to select the “Exit” item, then press the ENT (enter) key to
confirm. The scanner exits the Main Menu and returns to its current operating mode.

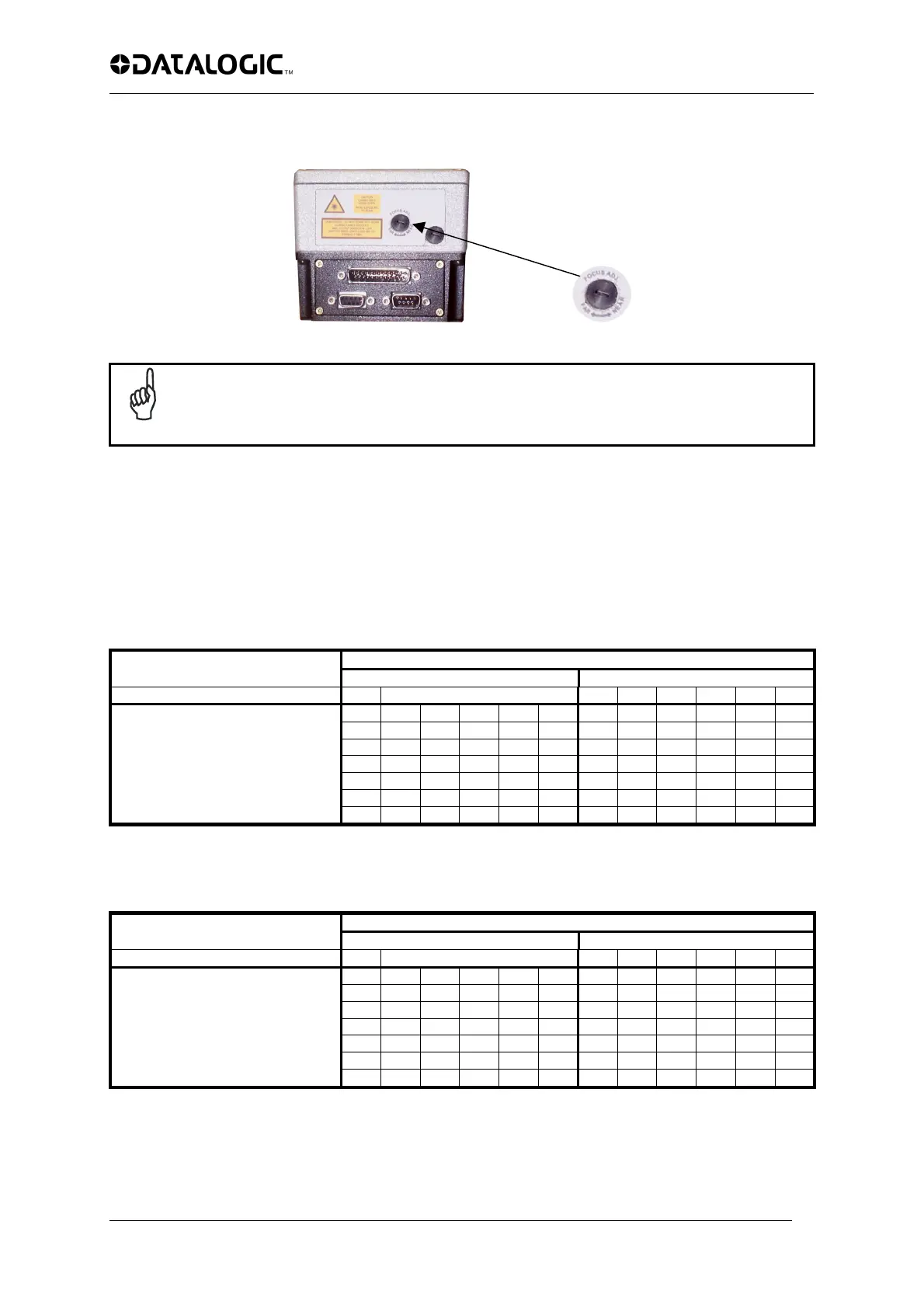

Focus Adjustment Screw
NOTE
The reader display shows the focus position only when the laser beam is activated.
It is possible to visualize the focus position and the reading percentage on the terminal tool provided by the
Genius™ configuration program (see Genius™ Help On-Line for details).
Reading Conditions:
ANSI Grade B minimum
800 scans/sec
The following tables describe the requirements for standard applications.
Minimum Code Height for ACR Reading (mm)
45° 30°
Conveyor Speed (m/s) 0.5 1 1.5 2 2.5 3 0.5 1 1.5 2 2.5 3
0.25
10 12 14 16 18 20 7 9 10 12 13 15
0.30
12 14 15 17 19 21 8 9 11 12 14 15
0.33
13 14 16 18 20 22 8 10 11 13 14 16
0.38
14 16 18 19 21 23 9 11 12 14 15 17
0.50
18 19 21 23 25 26 11 12 14 15 17 18
0.72
24 25 27 28 30 32 15 16 17 19 20 22
2/5 Interleaved
Code Resolution (mm)
1.00
33 34 35 36 38 40 20 21 22 23 25 26
Ratio 3:1
Table 1
Minimum Code Height for ACR Reading (mm)
45° 30°
Conveyor Speed (m/s) 0.5 1 1.5 2 2.5 3 0.5 1 1.5 2 2.5 3
0.25
9 10 12 14 16 17 6 7 9 10 12 13
0.30
10 11 13 15 17 18 7 8 9 11 12 14
0.33
11 12 13 15 17 19 7 8 10 11 13 14
0.38
12 13 14 16 18 20 8 9 10 12 13 15
0.50
15 16 17 18 20 22 10 10 11 13 14 16
0.72
20 21 22 23 24 26 13 13 14 15 17 18
Code 39
Code Resolution (mm)
1.00
27 28 29 30 31 32 17 17 18 19 20 21
Ratio 3:1; Interdigit = Module Size
Table 2
