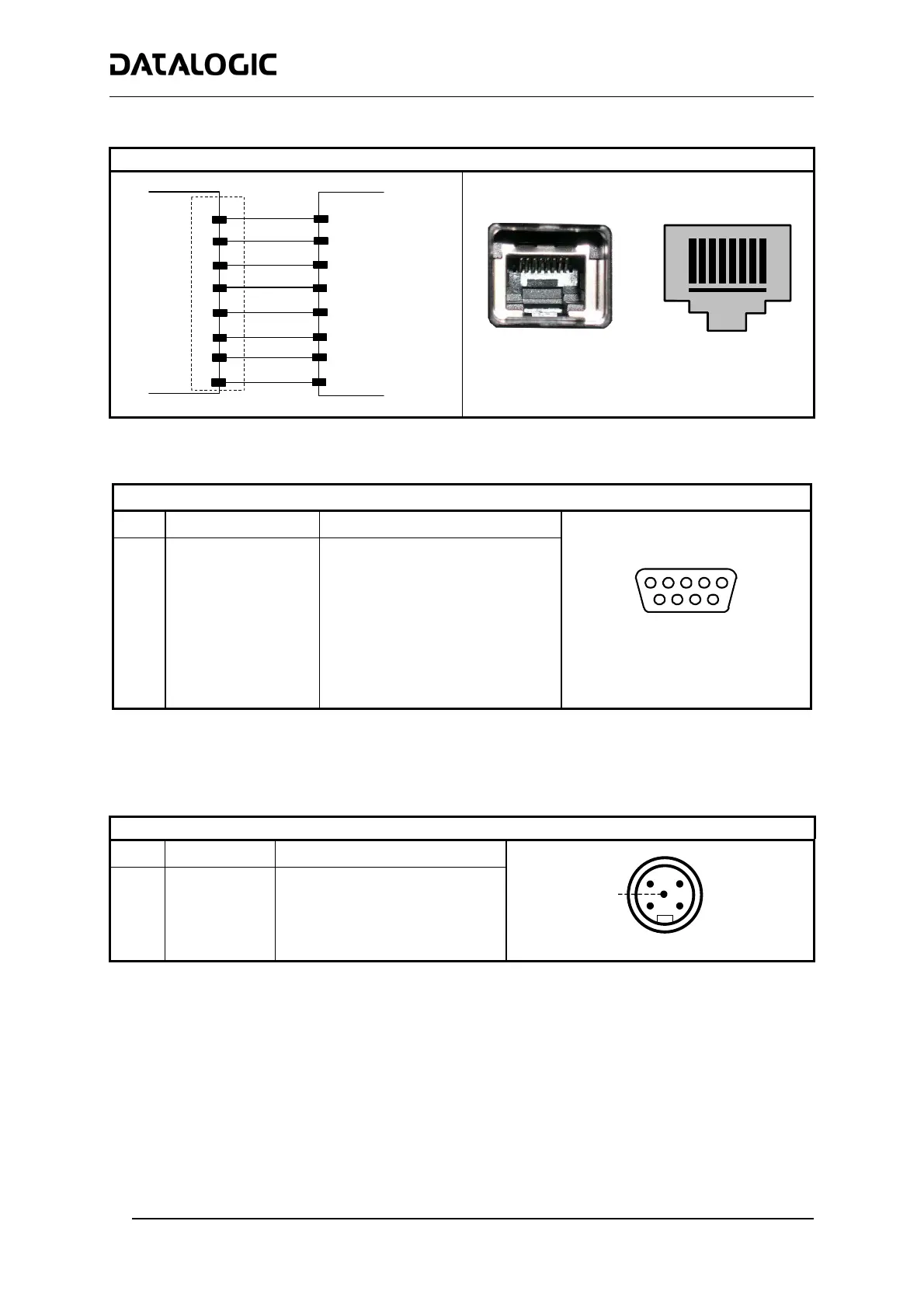

DX8200A QUICK GUIDE
6
Ethernet Version
Harting RJ Industrial® Modular Connector
DX8200A
5
HUB / SWITCH
3
4
2
1
6
5
3
4
2
1
6
7
8
7
8
RX+
TX-
TX+
RX-
n. c.
n. c.
n. c.
n. c.
n. c. = not connected
1
8
Harting RJ Industrial Female Connector
Profibus Version
Profibus Connector
Pin Name Function
1 Shield* Shield, protective ground resp.
2 Free
3 B-LINE (RxD/TxD-P) Received/Transmitted data-P
4 CNTR-P** Repeater control signal
5 DGND Data ground (M5V)
6 +5 V Voltage plus (P5V)
7 Free
8 A-LINE (RxD/TxD-N) Received/Transmitted data
9 CNTR-N** Repeater control signal
5
1
9
6
Profibus 9-pin D-sub Female
Connector
* signal is optional
** signal is optional; RS485 level
DeviceNet Version
DEVICENET CONNECTOR
Pin Name Function
2 V+ Supply voltage – positive pin
5 CAN_L CAN bus data line – L
1 SHIELD Shield
4 CAN_H CAN bus data line – H
3 V- Supply voltage – negative pin
1
3
2
4
5
5-pin male DeviceNet Connector
1
8

Datalogic DX8200A Specifications

General

Scan speed	1000 sec/page
Sensor type	Laser
Dimensions (WxDxH)	470 x 300 x 147 mm
Standard interfaces	RS-232, RS-485
Power requirements	30 VCD
Power consumption (standby)	30 W
Keys quantity	3 keys
Product color	Black
LED indicators	Charging, Power
Housing material	Steel
International Protection (IP) code	IP64
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	11000 g
