Datalogic ELF User Manual

USE AND FUNCTIONING
95
4
4.9.3 Updating the Firmware
After copying the firmware image to the host PC (see par. 4.10.1) and installing DFU
(see par. 4.9.2), you can upgrade the firmware on your Datalogic device.
The following steps require that you have already established an
ActiveSync or Windows Mobile® Device Center connection between
the host computer and the Datalogic device.
NOTE

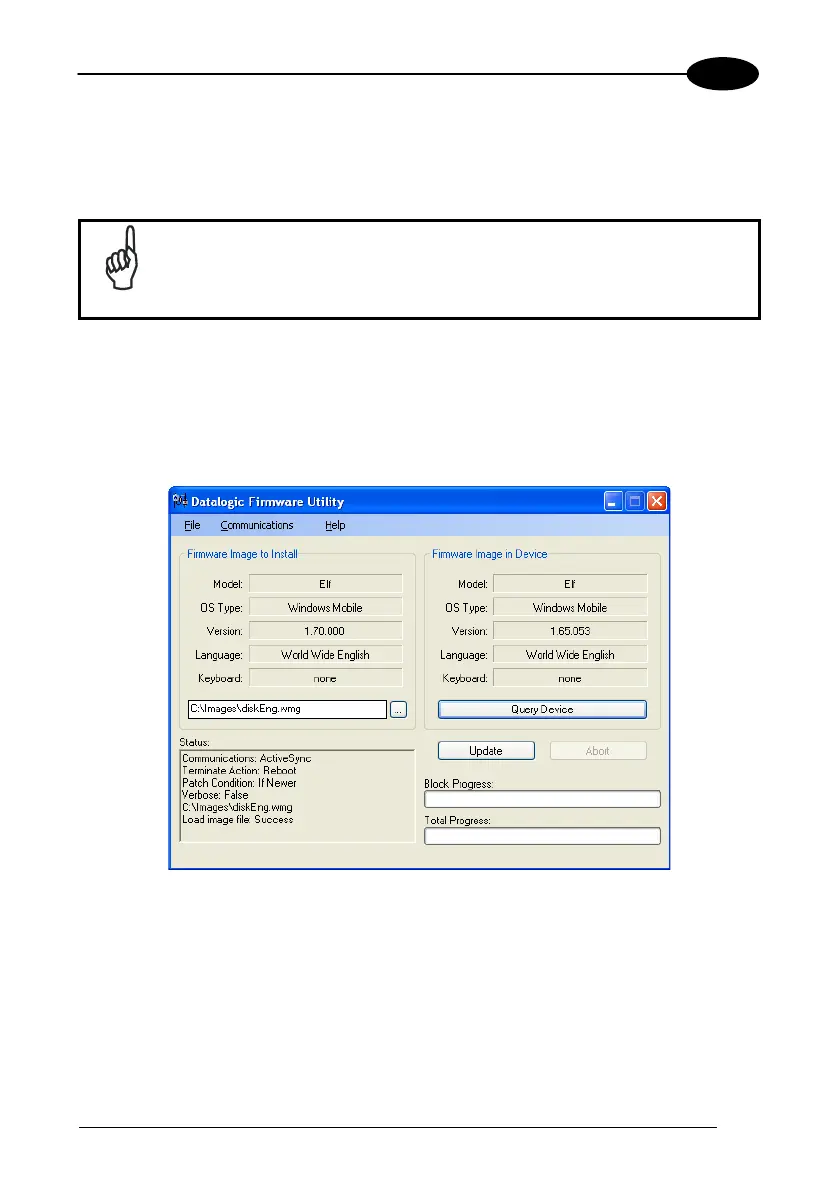

1. Go to Start > Programs > Datalogic > DFU > Datalogic Firmware Utility.
2. Verify that ActiveSync is selected by clicking Communications > WMDC/
ActiveSync.
3. Click browse (...) and navigate to the location where you saved the firmware
file for your terminal.
4. Select the current *.out file and click Open.
5. Click Update.
6. DFU will compare the selected firmware image with the firmware already
loaded on the device; if the image is compatible with the connected device,
DFU will proceed to update the firmware image on your device.
7. After the firmware of your device has been updated, DFU will automatically
perform a warm reset of the device.

Datalogic ELF Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	65536 colors
Internal memory	0.256 GB
Internal memory type	-
Compatible memory cards	SD, SDHC
Built-in processor	PXA310
Processor frequency	0.624 GHz
Product color	Black
Phone function	No
Keyboard layout	Numeric
Image formats supported	BMP, JPG
Bundled software	Windows Mobile 6.5 + Mobile tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile & Internet Explorer Mobile 6.0
Data network	EDGE, GPRS, GSM, HSDPA
Bluetooth version	2.0+EDR
GSM bands supported	850, 900, 1800, 1900 MHz
Operating frequency	2400 - 5200 MHz
Wireless technology	WiFi
Rear camera resolution (numeric)	3 MP
Power supply	11.10 W
Power requirements	3.7V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Key benefits	27

Weight and Dimensions

Depth	42 mm
Width	157 mm
Height	81 mm
Weight	415 g
