Datalogic ELF User Manual

USE AND FUNCTIONING
41
4

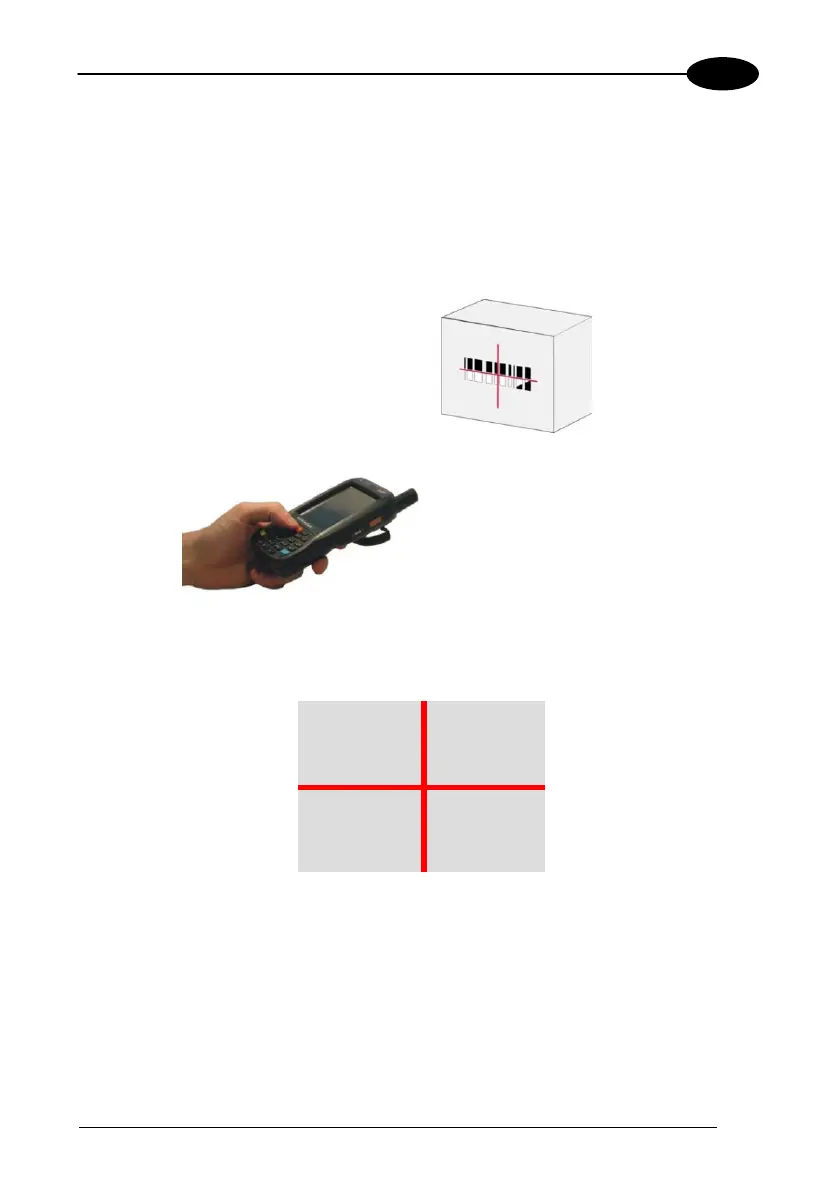

4.3.2 Imager Data Capture
The Elf Imager captures a picture of the entire bar code. The omni-directional
scanning does not require that the operator orient the bar code to align with the scan
pattern.
To read a 1D or 2D code, simply point the Elf Imager model onto the code and press
the SCAN Key.
The Elf Imager uses an intelligent aiming system pattern, similar to those on
cameras, indicating the field of view, which should be positioned over the code:
Aiming System
If the aiming system pattern is centered over the entire symbology as shown in the
following figure, either wait for the timeout or release the Scan key to capture the
image.
A red beam illuminates the code, which is captured and decoded. You will get a good
read.

Datalogic ELF Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	65536 colors
Internal memory	0.256 GB
Internal memory type	-
Compatible memory cards	SD, SDHC
Built-in processor	PXA310
Processor frequency	0.624 GHz
Product color	Black
Phone function	No
Keyboard layout	Numeric
Image formats supported	BMP, JPG
Bundled software	Windows Mobile 6.5 + Mobile tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile & Internet Explorer Mobile 6.0
Data network	EDGE, GPRS, GSM, HSDPA
Bluetooth version	2.0+EDR
GSM bands supported	850, 900, 1800, 1900 MHz
Operating frequency	2400 - 5200 MHz
Wireless technology	WiFi
Rear camera resolution (numeric)	3 MP
Power supply	11.10 W
Power requirements	3.7V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Key benefits	27

Weight and Dimensions

Depth	42 mm
Width	157 mm
Height	81 mm
Weight	415 g
