Datalogic ELF User Manual

USE AND FUNCTIONING
35
4
4 USE AND FUNCTIONING
The use of the Elf depends on the application software loaded. However there are
several parameters that can be set and utilities that can be used to perform some
basic functions such as data capture, communications, file management, etc
4.1 STARTUP
The Elf turns on when the battery pack or the external supply is inserted.
After the battery pack is installed, use the [ON/OFF] key to turn the PDA on and off.
As soon as the PDA is on, the Windows Embedded Handheld 6.5 desktop
configuration will appear on the screen. Wait a few seconds before starting any
activity so that the PDA completes its startup procedure.

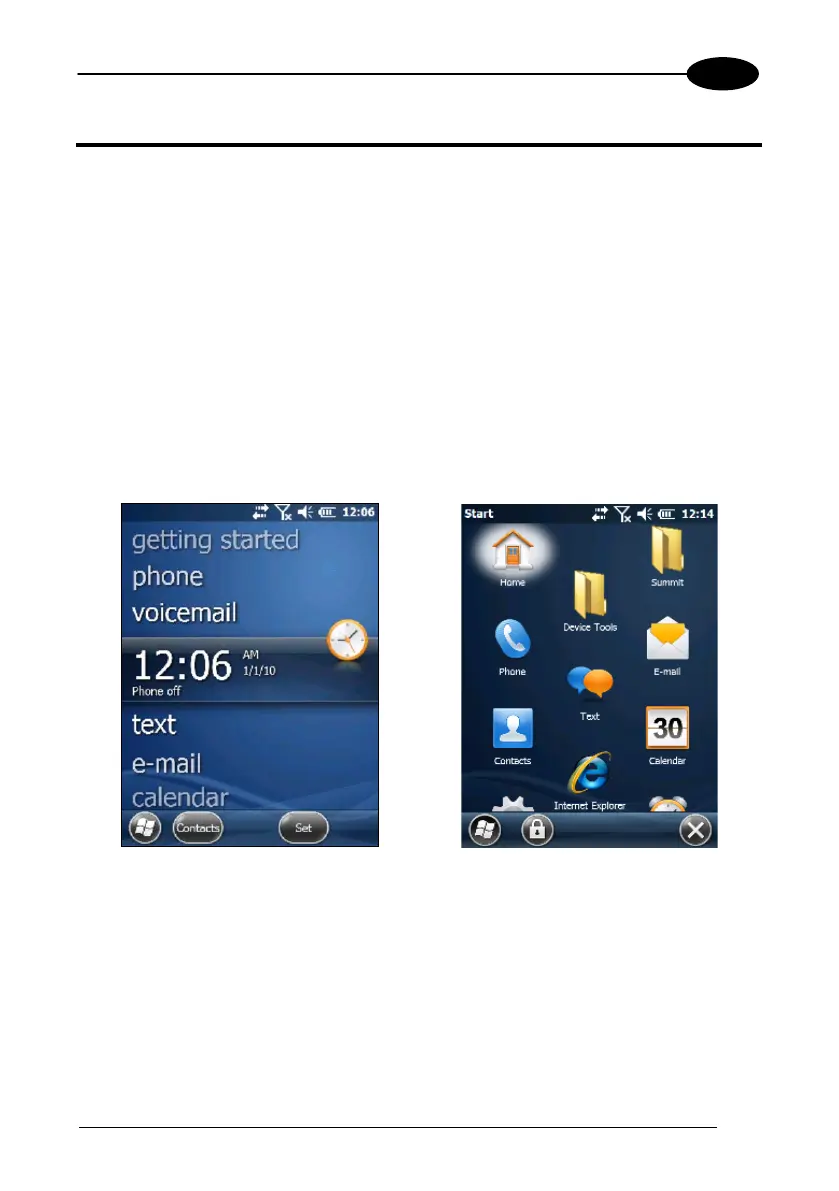

Today Screen
Start Menu
Use the stylus (par. 4.1.1) as suggested to select icons and options.
The PDA goes into power-off (low power with display and keyboard backlight off),
when it is not used for more than a programmable timeout, which is defined in the
POWER applet of the Control Panel. In this mode it can be awakened (resuming
operation) by the [ON/OFF] key.

Datalogic ELF Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	65536 colors
Internal memory	0.256 GB
Internal memory type	-
Compatible memory cards	SD, SDHC
Built-in processor	PXA310
Processor frequency	0.624 GHz
Product color	Black
Phone function	No
Keyboard layout	Numeric
Image formats supported	BMP, JPG
Bundled software	Windows Mobile 6.5 + Mobile tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile & Internet Explorer Mobile 6.0
Data network	EDGE, GPRS, GSM, HSDPA
Bluetooth version	2.0+EDR
GSM bands supported	850, 900, 1800, 1900 MHz
Operating frequency	2400 - 5200 MHz
Wireless technology	WiFi
Rear camera resolution (numeric)	3 MP
Power supply	11.10 W
Power requirements	3.7V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Key benefits	27

Weight and Dimensions

Depth	42 mm
Width	157 mm
Height	81 mm
Weight	415 g
