Datalogic ELF User Manual

vii

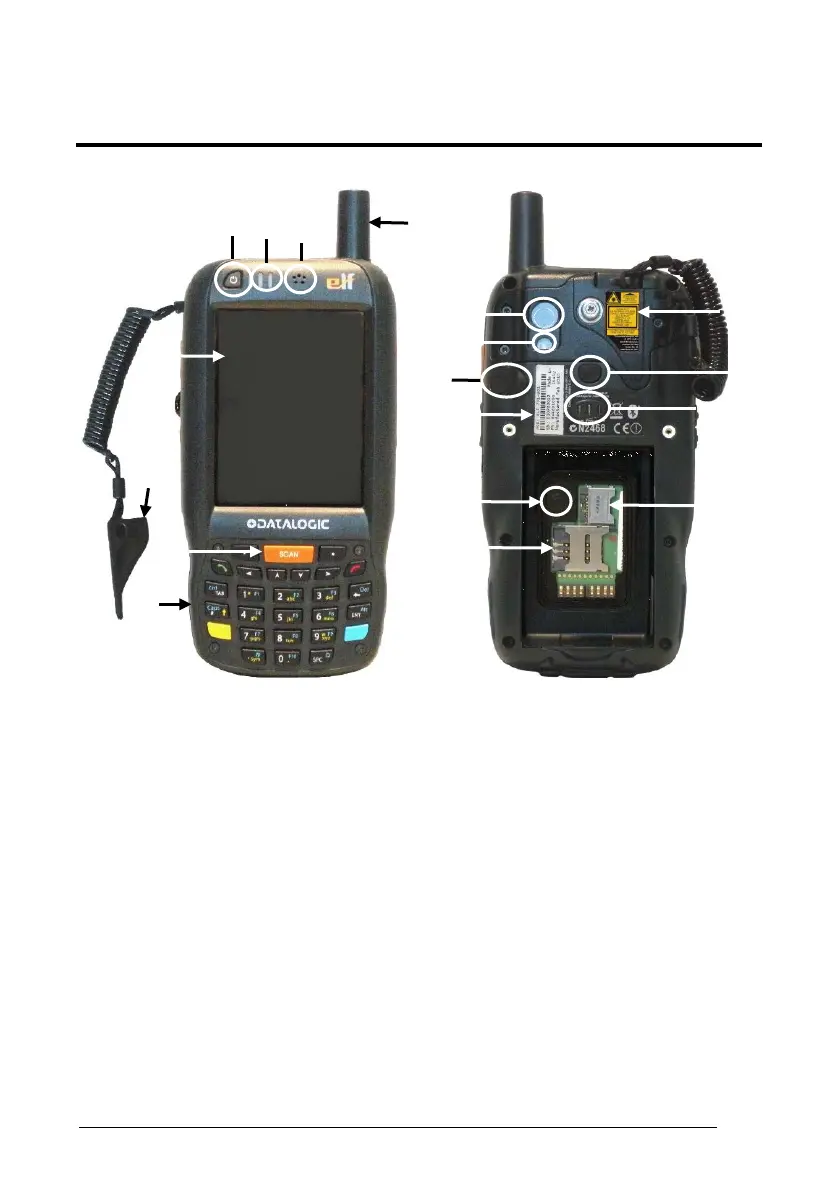

GENERAL VIEW
A) Color Display*
B) ON/OFF Power Key
C) LEDs
D) Receiver
E) Front Scan Key
F) Keyboard
G) Guitar Pick Stylus
H) UMTS antenna, present in UMTS
models only
I) Laser Safety Label
J) Trigger button (for use with the
optional pistol trigger Quick-attach
Handle - 94ACC1378)
K) Loudspeaker
L) Headset Connector
M) Color Camera
N) Flash
O) Product Label
P) Reset Key (under battery)
Q) Micro-SD Card Slot (under battery)
R) SIM Card Slot (under battery)
∗ Remove protective film cover before use
A
E
F
D
B
G
H
C
O
I
Q
R
P
K
J
L
M
N

Datalogic ELF Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	65536 colors
Internal memory	0.256 GB
Internal memory type	-
Compatible memory cards	SD, SDHC
Built-in processor	PXA310
Processor frequency	0.624 GHz
Product color	Black
Phone function	No
Keyboard layout	Numeric
Image formats supported	BMP, JPG
Bundled software	Windows Mobile 6.5 + Mobile tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile & Internet Explorer Mobile 6.0
Data network	EDGE, GPRS, GSM, HSDPA
Bluetooth version	2.0+EDR
GSM bands supported	850, 900, 1800, 1900 MHz
Operating frequency	2400 - 5200 MHz
Wireless technology	WiFi
Rear camera resolution (numeric)	3 MP
Power supply	11.10 W
Power requirements	3.7V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Key benefits	27

Weight and Dimensions

Depth	42 mm
Width	157 mm
Height	81 mm
Weight	415 g
