4.3.1 Laser Data Capture
To scan barcodes, point the Elf laser model onto the code from a distance within the
reading range while pressing the SCAN key.

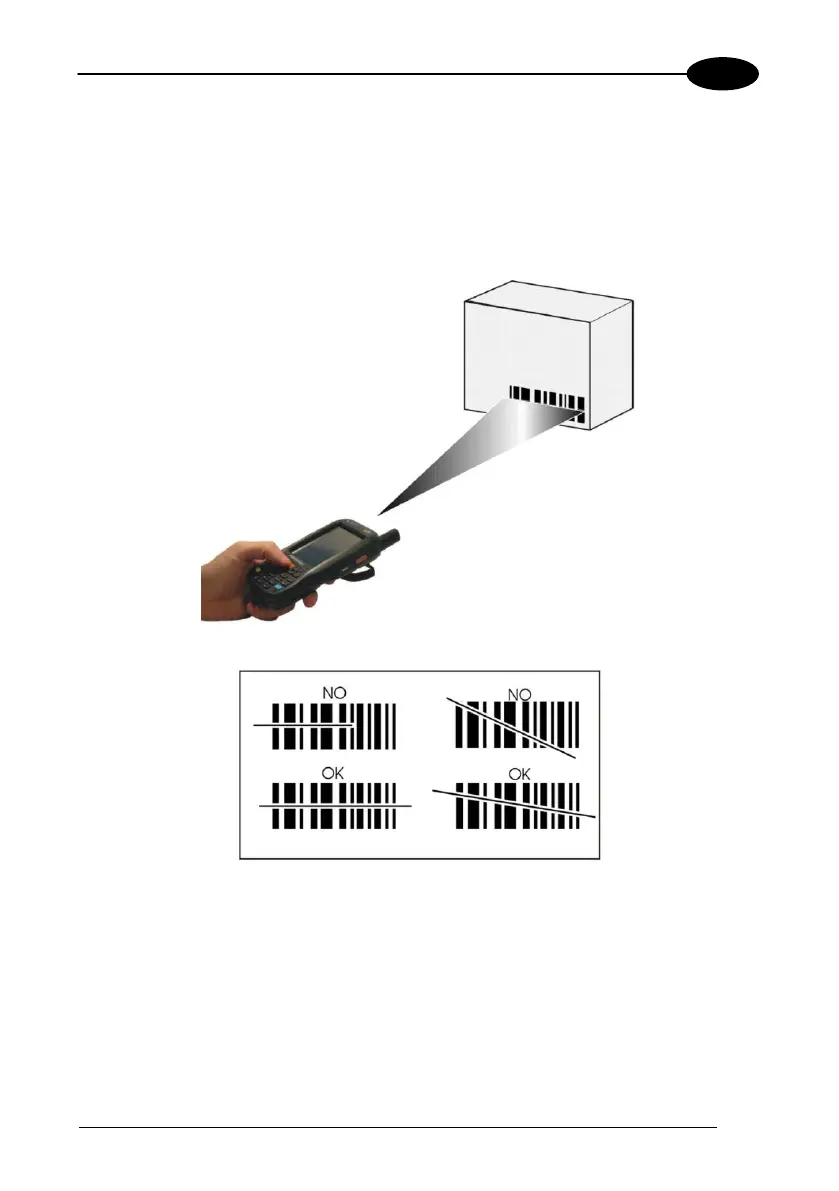

The lighted band emitted by the laser must completely intercept the barcode as
shown in the figure below.
If the scan has taken place correctly:
− the Good Read LED glows steadily Green for a configurable time;
− if enabled, the Good Read Beep plays;
− if enabled, the GreenSpot projects a green spot onto the bar code image.
