Setting Up the Scanner
Product Reference Guide 7

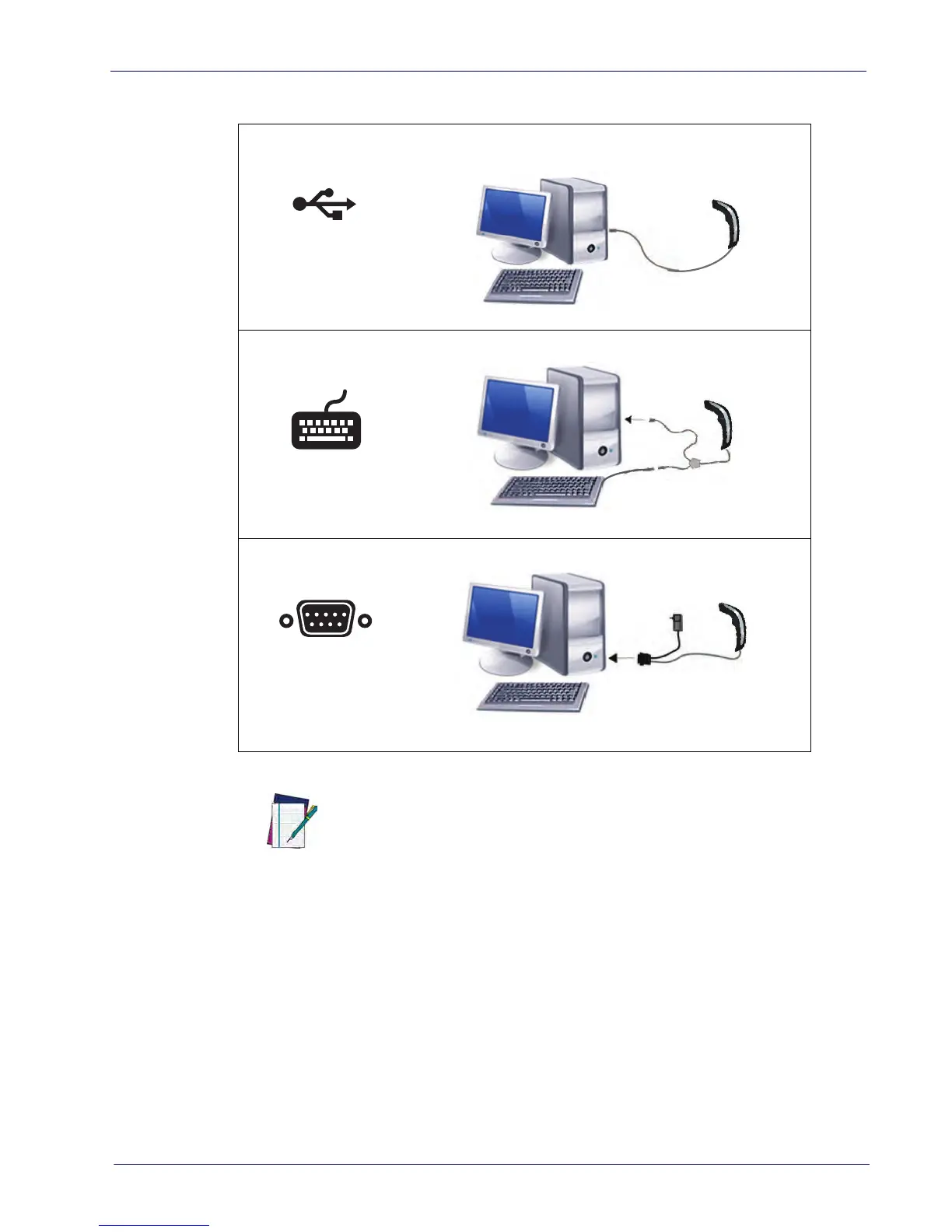

Figure 3. Connection to the Host
USB
Keyboard Wedge
RS-232
NOTE
Specific cables are required for connection to different hosts. The connec-
tions illustrated in Figure 3 are examples only. Actual connectors may vary
from those illustrated, but the steps to conn
ect the scanner remain the
same.
