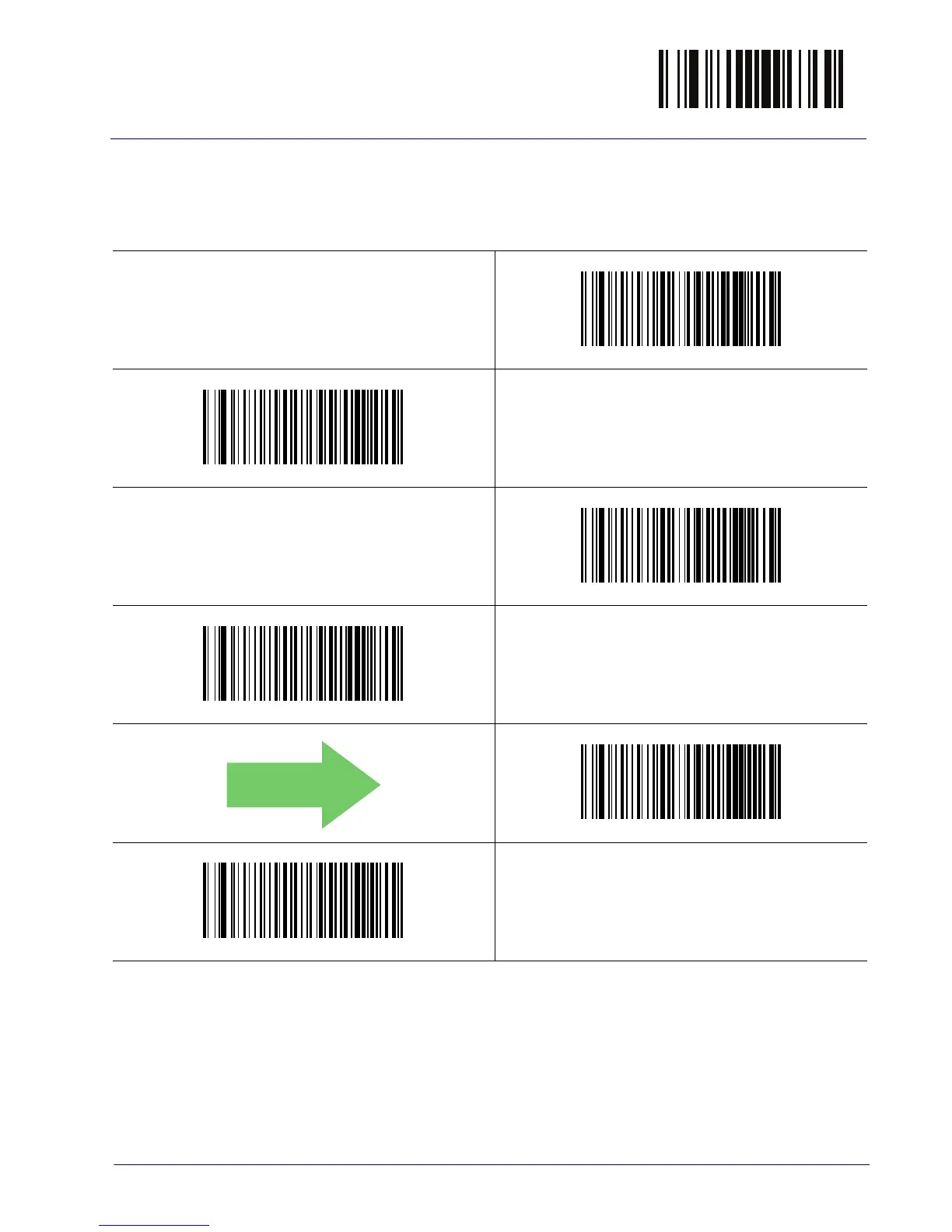

Code 11 Interdigit Ratio

This feature specifies the ratio between an intercharacter space and module for

Code 11 labels.

Code 11 Interdigit Ratio = Disable

Code 11 Interdigit Ratio = 1

Code 11 Interdigit Ratio = 2

Code11 Interdigit Ratio = 3

DEFAULT

Code 11 Interdigit Ratio = 4

Code 11 Interdigit Ratio = 5

$CC1IR00

$CC1IR01

$CC1IR02

$CC1IR03

$CC1IR04

$CC1IR05
