1.2 CONNECTION TO USB PERIPHERALS

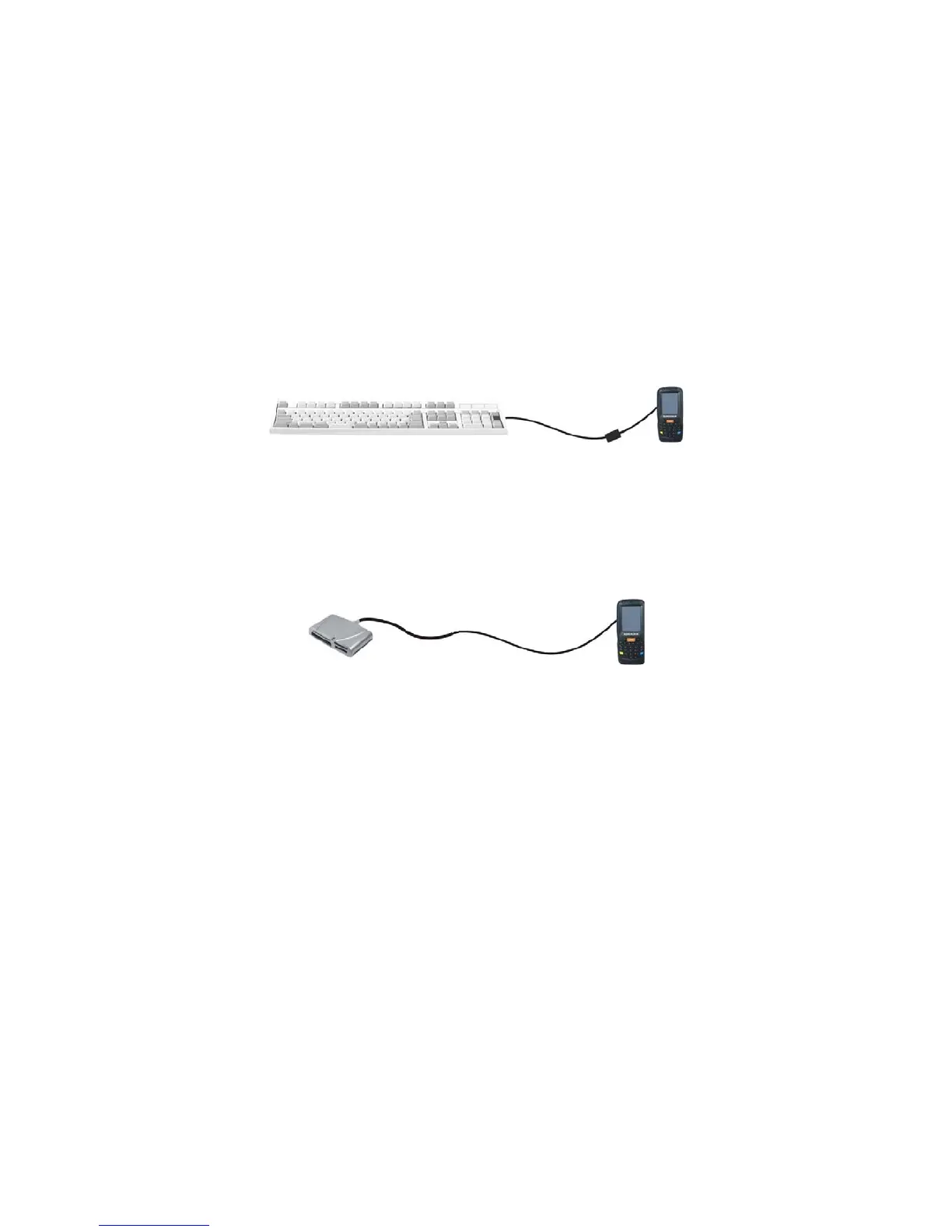

To connect the Lynx to a keyboard or a memory, connect the terminal to the
Datalogic 94A051969 cable or to the Datalogic 94A051971 cable (together with a
standard A to micro A USB cable).
For all these devices maximum current withdrawal must be below 100mA.
Key:
A Keyboard with USB interface C 94A051969 Micro USB Host Cable/
94A051971 Handylink Micro USB Host
Cable
B Lynx D Standard A to Micro A USB Cable
Key:
A USB hard drive/ external
memory source
C 94A051969 Micro USB Host Cable/
94A051971 Handylink Micro USB Host
Cable
B Lynx D Standard A to Micro A USB Cable
A
B
C
D
A
B
C
D
