Datalogic Lynx 00N0LD-1N0-MEN0 - RS232 Connection

1.3 RS232 CONNECTION

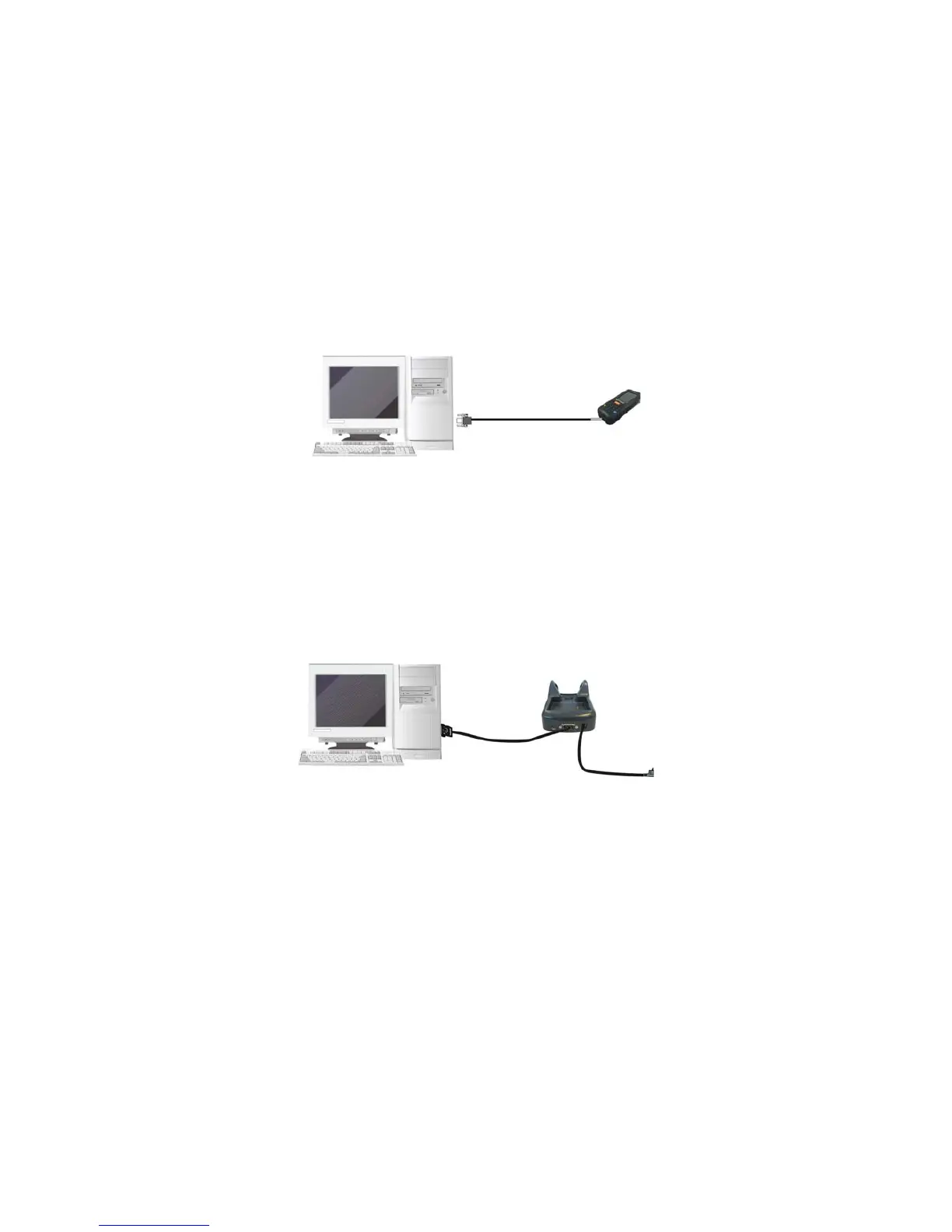

You can use the Datalogic 94A051972 cable to directly connect the Lynx to a host
computer to transfer data through the RS232 interface
Key:
A Host computer C Lynx
B 94A051972 Handylink
Micro RS232 Client Cable
The Single Slot Dock can be connected to the Host by means of a standard null
modem cable such as Datalogic 94A051020 CAB-427 for 9-pin connections.
Once the Host has been turned on, insert the Lynx PDA into the cradle.
Key:
A Host Computer C Lynx Single Slot Dock
B 94A051020 CAB-427
RS232 Null Modem Cable
D 94ACC1381 Power Adapter
A
B
C
A
B
C
D
