1.3.1 Laser Data Capture
To scan barcodes, point the Lynx laser model onto the code from a distance within
the reading range while pressing the SCAN key.

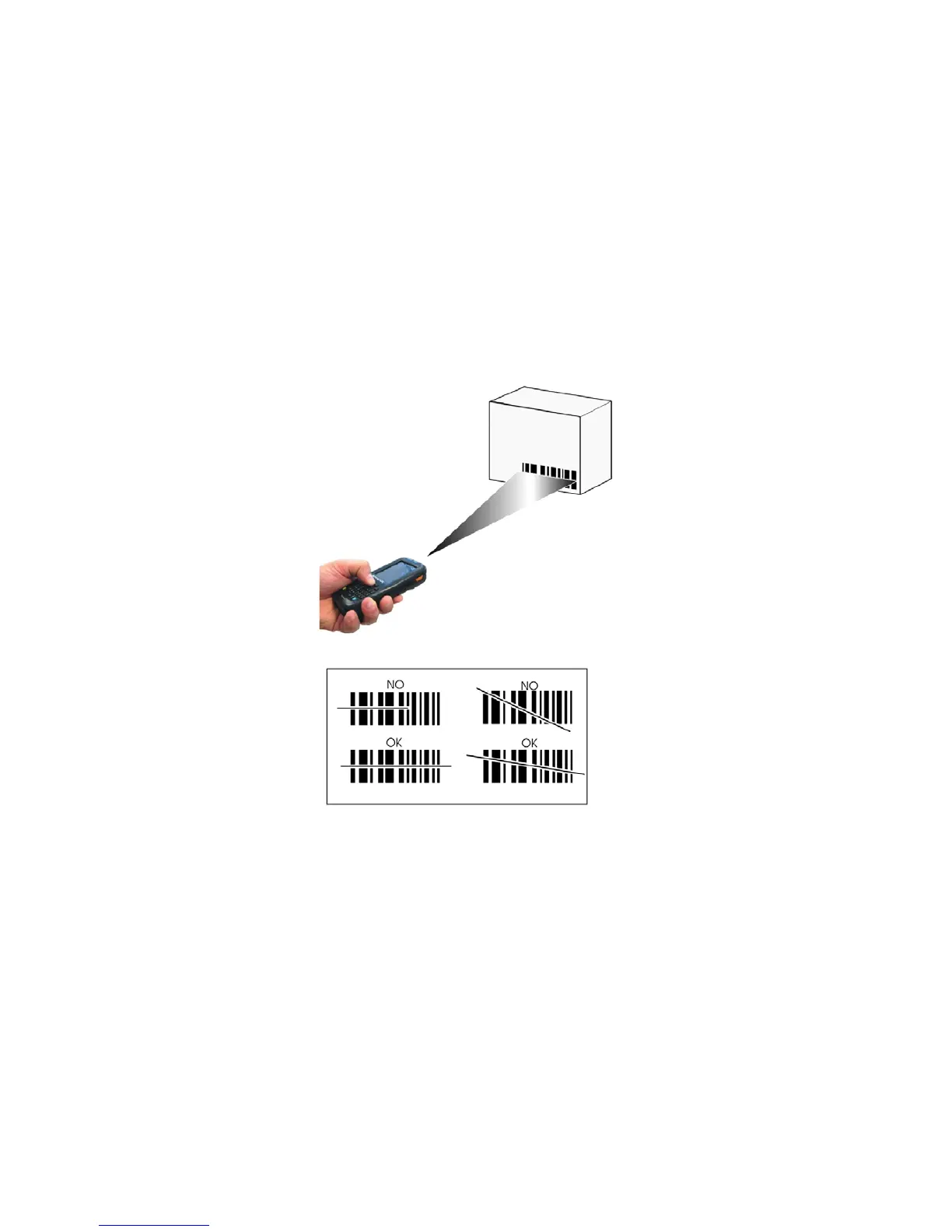

The lighted band emitted by the laser must completely cross the barcode as shown in
the figure below.
If the scan has taken place correctly:
the Good Read LED gets constant Green for a configurable time;
if enabled, the GoodReadSound emits an acoustic signal;
if enabled, the GreenSpot projects a green spot onto the bar code image.
