Symbologies

5-40 Magellan

1400i

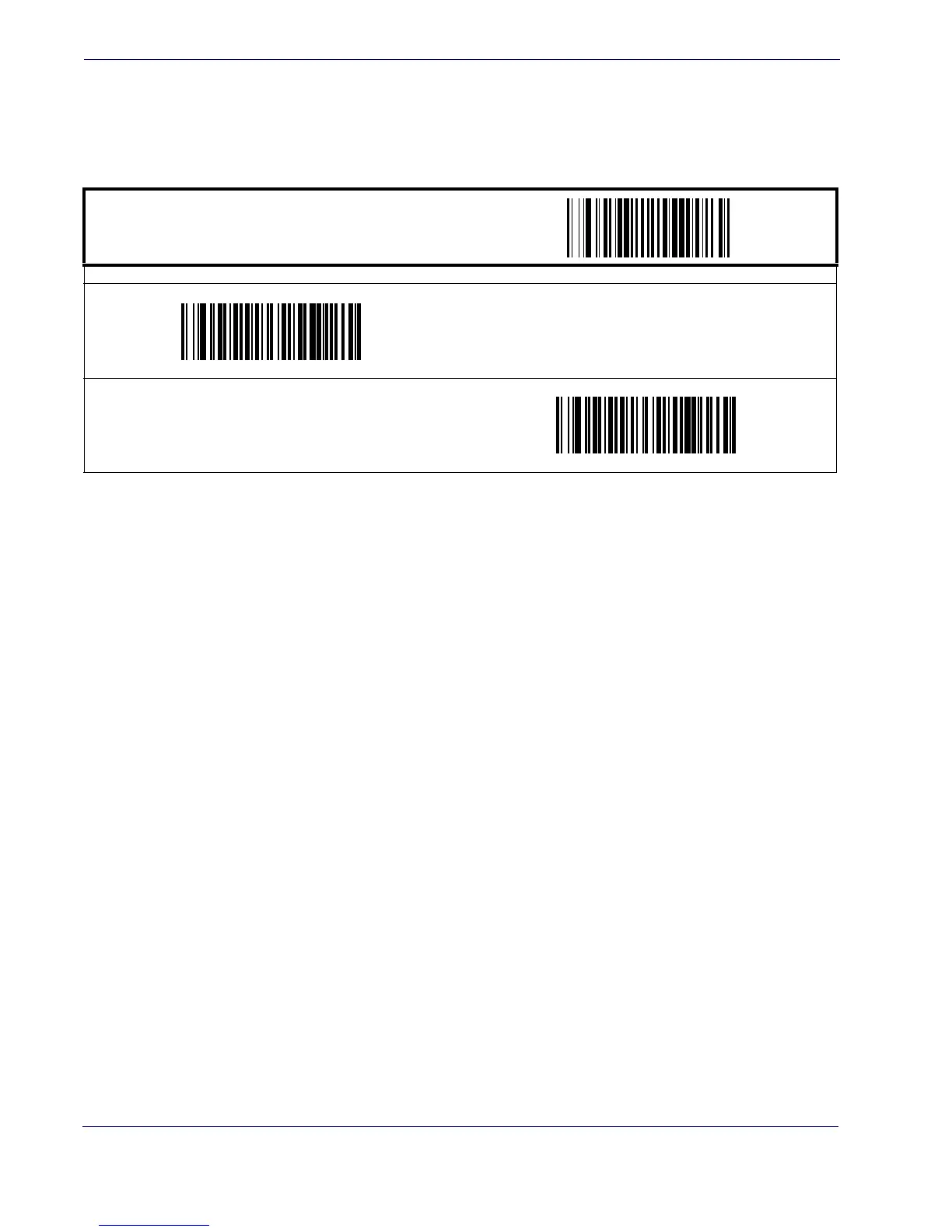

Interleaved 2 of 5 — continued

Check Digit Transmit

Enable this option to transmit the check digit with scanned barcode data.

START / END

PROGRAMMING BAR CODES

Disable Check Digit Calculation

DEFAULT

Enable Check Digit Calculation
