Scanning Features

Product Reference Guide

2-13

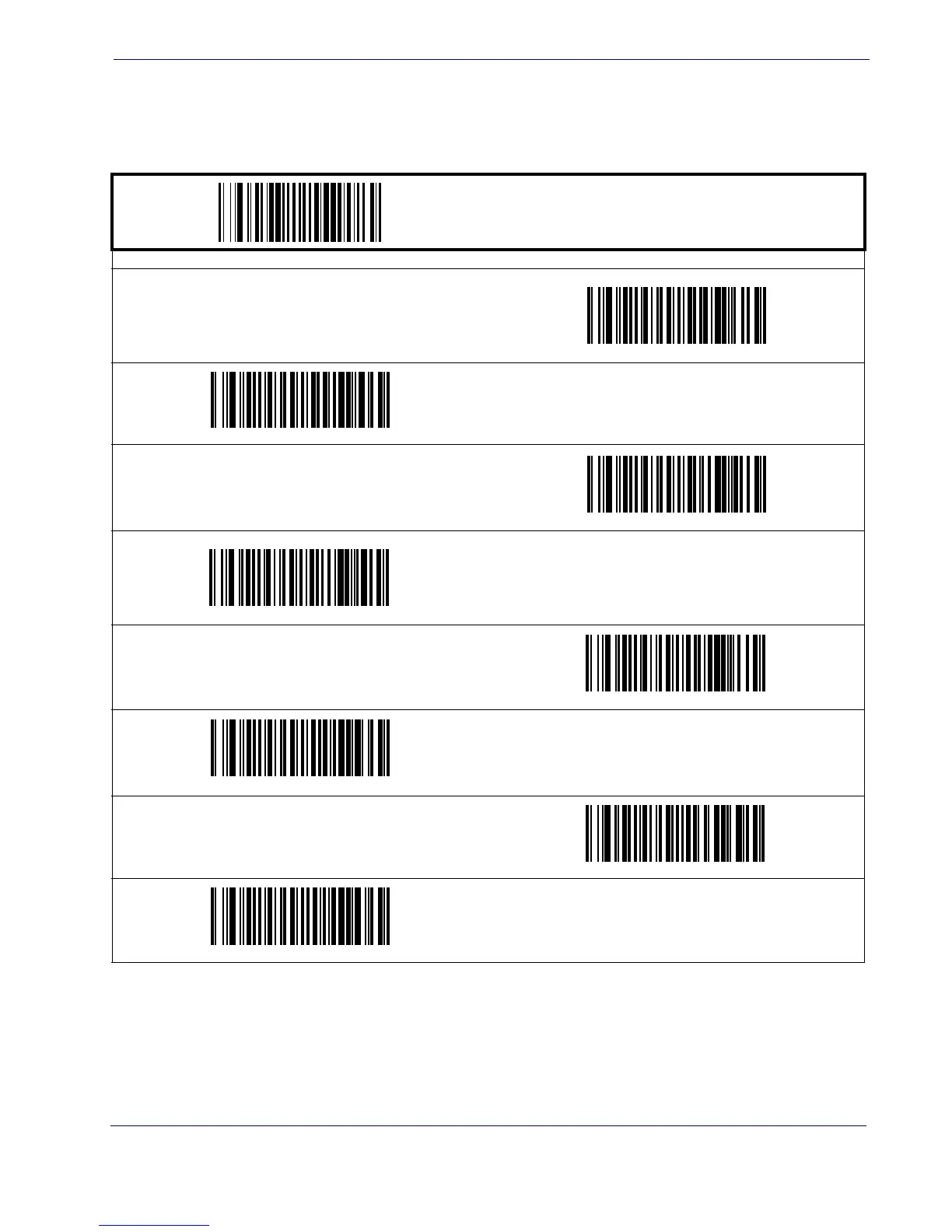

Wake Up Intensity

This feature indicates the percentage of ambient light change which will trigger the scanner to

wake up from Sleep Mode. Lower settings provide greater sensitivity.

START / END

PROGRAMMING BAR CODES

10%

DEFAULT

15%

20%

25%

30%

35%

³ 03B819
