Symbologies

5-8 Magellan

1400i

GTIN

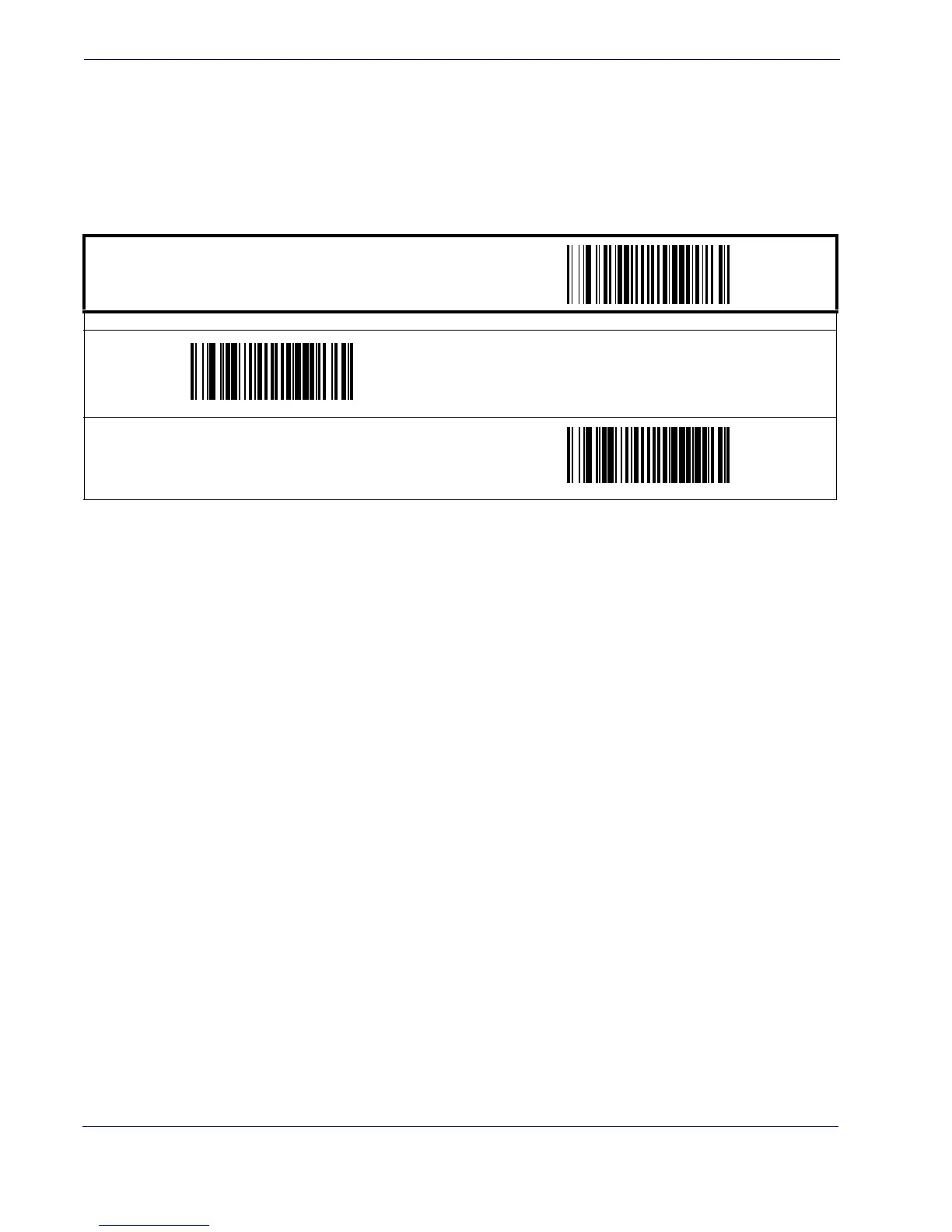

The following options apply to the GTIN label data format.

Expand UPC/EAN to GTIN

When this feature is enabled, the scanner will translate UPC/EAN labels to the 14 digit GTIN

format.

START / END

PROGRAMMING BAR CODES

Don’t Expand to GTIN

DEFAULT

Expand to GTIN
