Codabar

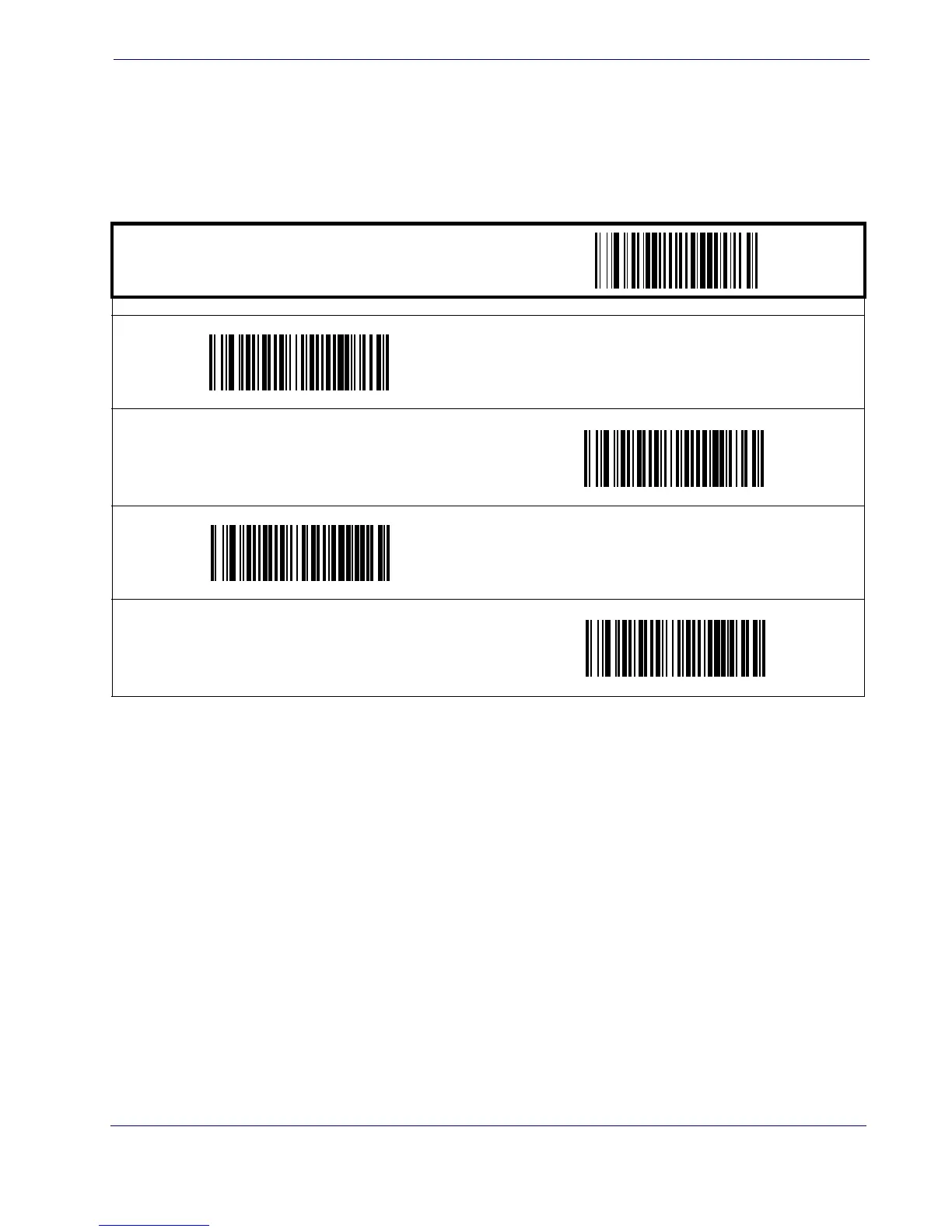

Product Reference Guide

5-51

Codabar — continued

Minimum Reads

This feature specifies the minimum number of consecutive times a Codabar label must be

decoded before it is accepted as a good read.

START / END

PROGRAMMING BAR CODES

Minimum = 1 Read

DEFAULT

Minimum = 2 Reads

Minimum = 3 Reads

Minimum = 4 Reads

Table of Contents3
Getting Started7
About this Manual7
- Manual Conventions7
Connecting the Scanner8
Programming9
- Using the Programming Bar Codes9
Resetting the Standard Product Defaults9
LED and Beeper Indicators10
Error Codes11
General Features13
1D Double Read Timeout13
1D Label Gone Timeout14
Sleep Mode15
LED and Beeper Indicators17
- Power on Alert17
- Good Read: When to Indicate18
- Good Read Beep Control19
- Good Read Beep Frequency19
- Good Read Beep Length20
- Good Read Beep Volume21
Productivity Index Reporting (PIR)21
Scanning Features22
- Aiming Pointer22
- Targeted Scanning Mode22
- Wake up Intensity25
- Interface Related Features27
Interface Selection29
Interface Features33
- RS-232 Interface Features35
- ACK NAK Error Handling49
- USB-OEM Interface Features50
- Ibm51
- Wand Emulation52
- Keyboard Wedge56
- USB Keyboard56
Data Editing Overview63
- Please Keep in Mind63
Global Prefix/Suffix64
Aim ID66
Label ID67
Case Conversion73
Character Conversion74
Upc-A75
- Disable/Enable UPC-A75
- Check Digit Transmission76
- Expand UPC-A to EAN-1376
- Number System Transmission77
- UPC-A Minimum Reads77
- UPC-A In-Store Minimum Reads78
Upc-E79
- Disable/Enable UPC-E79
- Check Digit Transmission79
- Number System Digit80
- Expand UPC-E to UPC-A80
- Expand UPC-E to EAN1381
- Minimum Reads81
- Gtin82
- Expand UPC/EAN to GTIN82
- Disable/Enable EAN-1383
- Check Digit Transmission83
- EAN-13 Flag 1 Character84
- Isbn84
- Minimum Reads85
- Disable/Enable EAN-886
- Check Digit Transmission86
- Minimum Reads87
Enable EAN Two-Label88
Enable EAN Two-Label Combined88
Add-Ons89
GS1 Databar Omnidirectional / Stacked Ominidirectional91
- Disable/Enable GS1 Databar Omnidirectional91
- GS1 128 Emulation91
- Minimum Reads92
GS1 Databar Expanded / Expanded Stacked93
- Disable/Enable GS1 Databar Expanded93
- GS1 Databar Expanded 128 Emulation93
- Length Control94
- GS1 Databar Expanded Length 1, Length 2 Programming Instructions95
- Minimum Reads96
- Coupon Read Control97
GS1 Databar Limited98
- Disable/Enable GS1 Databar Limited98
- GS1 Databar Limited 128 Emulation99
- Minimum Reads99
Code 39100
- Disable/Enable Code 39100
- Check Character Calculation100
- Check Character Transmit101
- Start/Stop Characters101
- Code 39 Full ASCII102
- Length Control103
- Code 39 Length 1, Length 2 Programming Instructions104
- Quiet Zones104
- Code 39 Stitching105
- Minimum Reads105
Pharmacode 39106
- Disable/Enable Pharmacode 39106
- Start/Stop Characters106
- Check Character Transmit107
Code 128 and UCC/EAN 128108
- Transmit Function Characters109
- Length Control110
- Code 128 Length 1, Length 2 Programming Instructions111
- Code 128 Conversion to Code 39111
- Code 128 Stitching112
- Minimum Reads112
Interleaved 2 of 5113
- Disable/Enable Interleaved 2 of 5113
- Check Digit Calculation113
- Check Digit Transmit114
- Length Control115
- Interleaved 2 of 5 Length 1, Length 2 Programming Instructions116
- Interleaved 2 of 5 Stitching117
- Minimum Reads118
Codabar119
- Disable/Enable Codabar119
- Check Character Verification119
- Check Character Transmit120
- Length Control121
- Codabar Length 1, Length 2 Programming Instructions122
- Start/Stop Character Type123
- Start/Stop Character Transmission123
- Start/Stop Character Match124
- Codabar Stitching124
- Minimum Reads125
Code 93126
- Disable/Enable Code 93126
- Length Control127
- Code 93 Length 1, Length 2 Programming Instructions128
- Code 93 Stitching129
- Minimum Reads129
Msi/Plessey130
- Disable/Enable Msi/Plessey130
- Check Digit Verification130
- Check Digit Transmit131
- Number of Check Characters131
- Length Control132
- Msi/Plessey Length 1, Length 2 Programming Instructions133
- Msi/Plessey Stitching134
- Minimum Reads135
Standard 2 of 5136
- Disable/Enable Standard 2 of 5136
- Check Digit Verification136
- Check Digit Transmit137
- Length Control138
- Standard 2 of 5 Length 1, Length 2 Programming Instructions139
- Standard 2 of 5 Stitching140
- Minimum Reads141
2D Symbologies144
- Pdf 417145
- Datamatrix148
Image Capture152
- How to Capture an Image152
- Captured Image Format152
Optical and Read Performance Parameters153
Scanner Dimensions153
Physical Properties154
Electrical Parameters154
Environmental Parameters154
Other Parameters154
Standard Cable Pinouts (Primary Interface Cables155
- IBM Port 5B/9B/17155
- Usb-Oem156
- USB, USB Keyboard & USB Std156
- Wand Emulation156
- Keyboard Wedge156
Standard Feature Defaults159
Keyboard Model Cross Reference171
Accepting RS-232 Commands177
- Sample Symbols179
- Ascii Chart183
