Datalogic Magellan 2300HS Quick Reference Guide

Quick Reference Guide 1
Quick Reference Guide
Introduction
This guide offers a summary of basic scanner operation for first time users. Install-
ers, system managers and other technical personnel can find installation, program-
ming and further advanced information in the Product Reference Guide. Up-to-
date revisions of publications can be viewed, printed and downloaded from the
website listed on the back cover of this manual. Printed manuals can also be
ordered from your dealer/distributor.
Connection

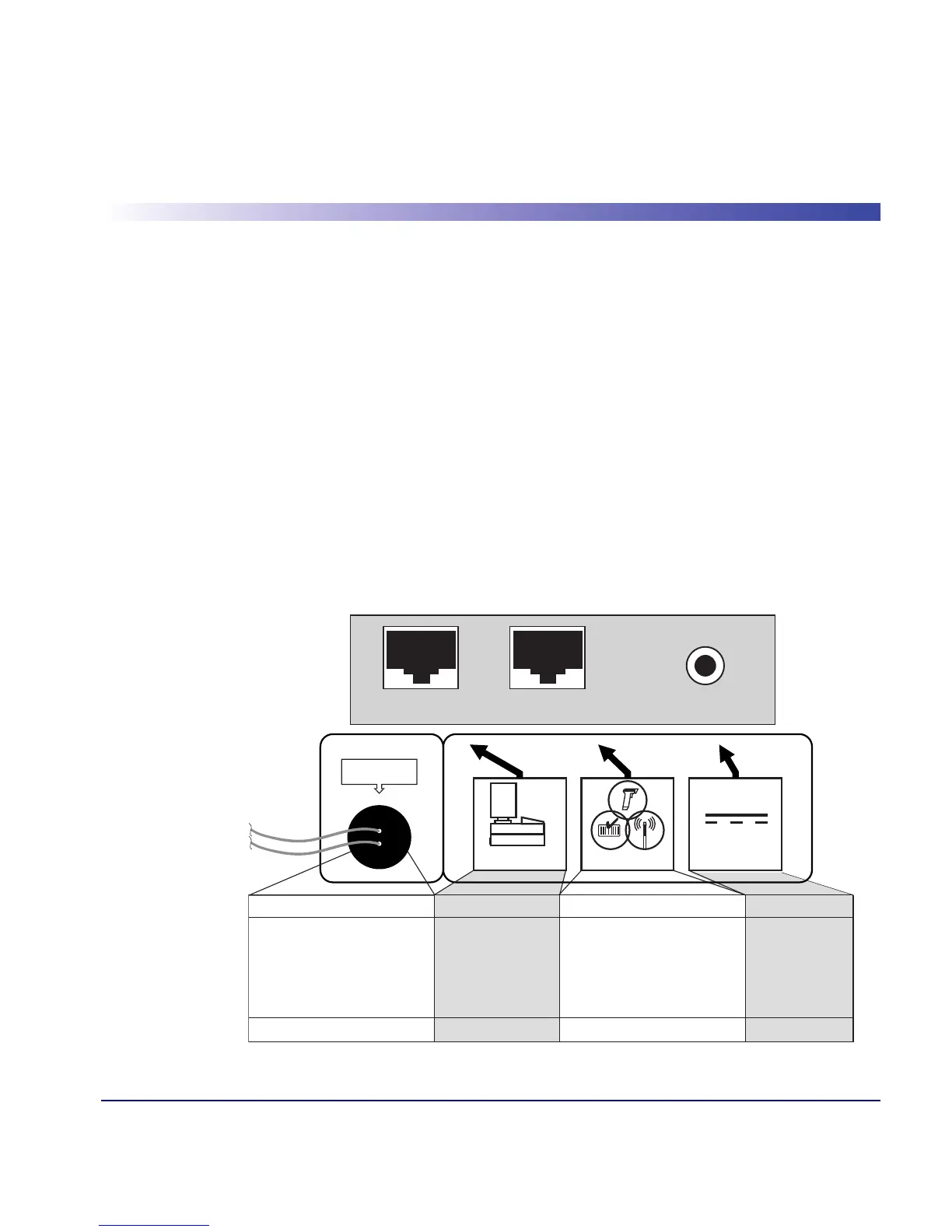

For your convenience, Figure 1 shows scanner connections and their functions.
Figure 1. Connections
POS TERMINAL AUXILIARY PORT POWER
Connection to this port is Optional
· DC Brick Input· Label Data
· Application Download
(where appropriate)
· Test Port
· On Screen
Programming (OSP)
· Application Download
· RS-232 Handheld Scanner Input
· Auxiliary RS-232 Label Data Output
EAS Connection
Connection to this port is Optional
· Electronic Article Surveillance
Connection
Power
EAS Opening
Aux. PortScanner Host

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
