Datalogic Magellan 2300HS Quick Reference Guide

2 Magellan
®
2300HS/2300HSΩ
Operation
Scanning Items
The scanner is mounted so its scan window is flush with the countertop. This
allows for maximum working space, and also permits the user to slide items over its
surface without having to grasp or pick them up. Bar codes are effortlessly scanned
when swept through the zone projected from the substantial scan window as
shown in
Figure 2a.
With FirstStrike
TM
decoding software, the scanner can read most hard-to-read
codes quickly and without excess orientation.

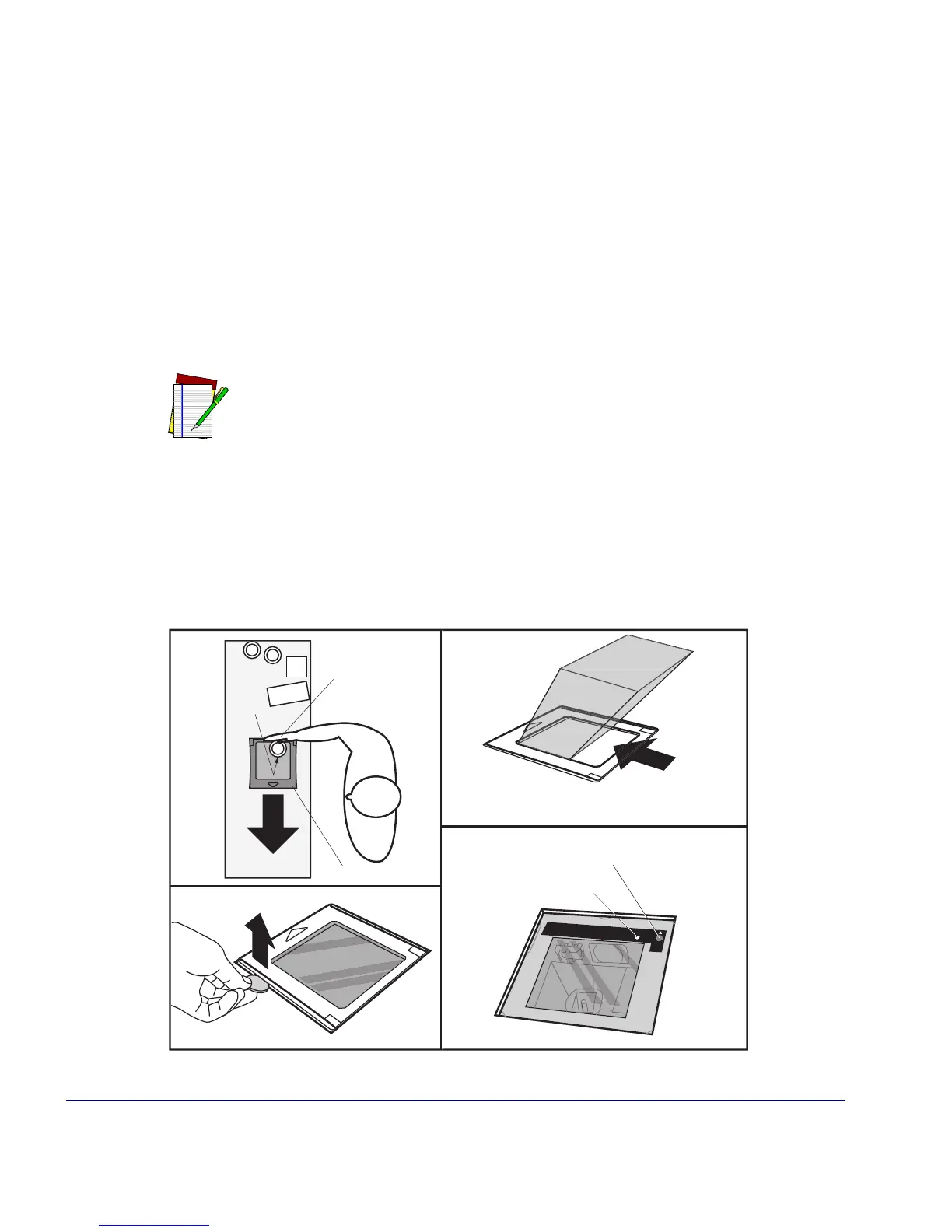

Figure 2. Operating the Scanner
NOTE
Facing bar code labels in the direction of scanning, or toward the scan
window will optimize the scan rate. The arrow on the scanner’s top
cover indicates the direction scanned items should be moved (see
Figure 2b).
S
canne
r
Item
Bar
Code
Items are
pushed or
slid past
scanner
Pr
oduct
Flow
Scan Volume
G
reen LE
D
Volume
/
Tone Push Butto
n
a
c
b
d

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
