MATRIX-2000™ QUICK GUIDE
9

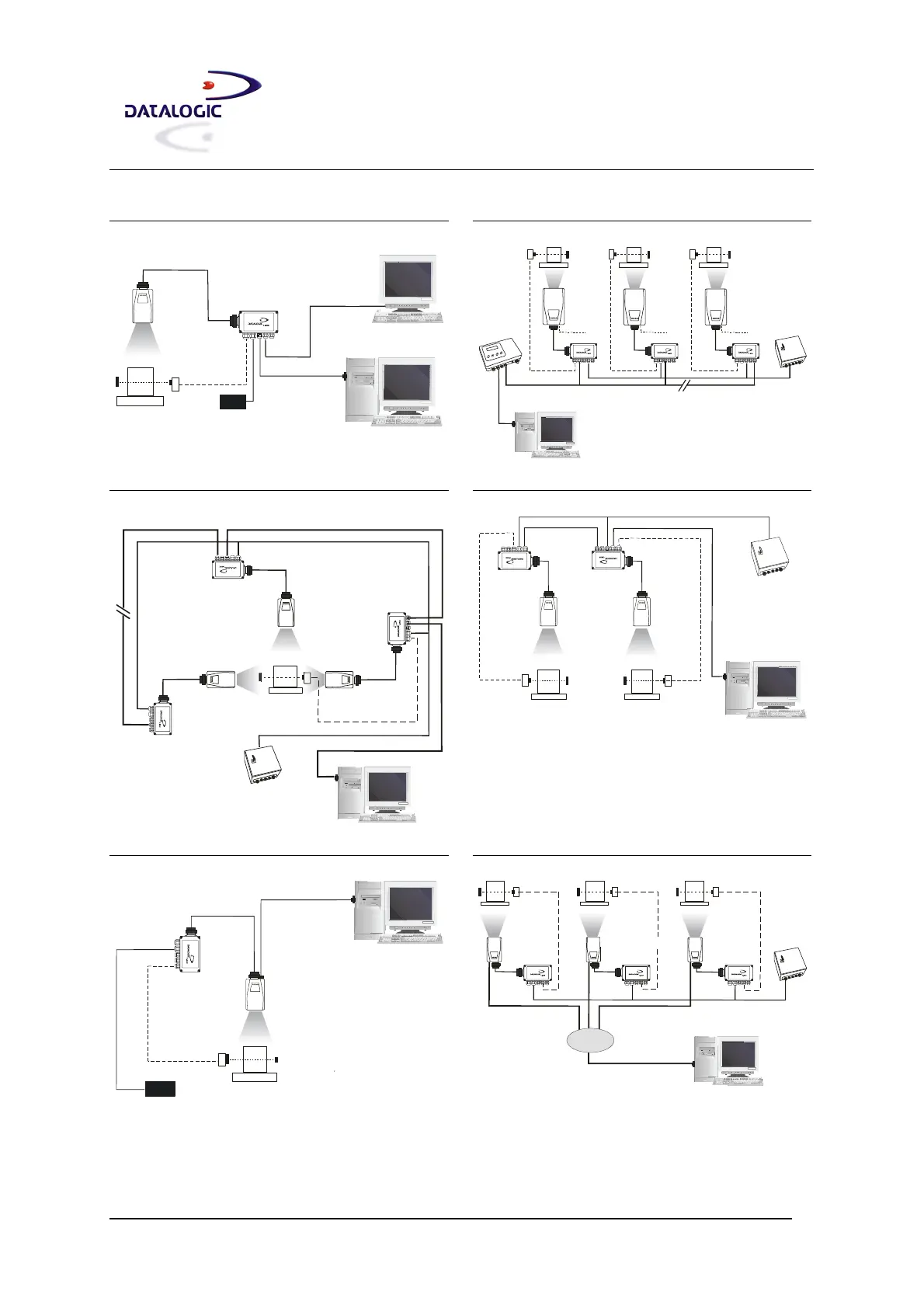

Connectivity
Point-to-Point Multiplexer
RS232 Master/Slave Pass Through
Ethernet Point-to-Point Ethernet Network
c Multidrop Network -
RS485 HD Main Interface
d RS232 Auxiliary Interface (Local Echo)
e External Trigger
C-BOX 100
PowerMX4000
Matrix-2000™
Host
0
1
31
C-BOX 100
C-BOX 100
c
d
e
d
d
e
e
c Main Serial Interface
d Auxiliary Serial Interface
e External Trigger
C-BOX 100
Master
Slave
Slave
Matrix-2000™
Power
Host
c
d
e
c
c
d
c Main Serial Interface
d Auxiliary Serial Interface
e External Trigger
Matrix-2000™
Power
Local Host
C-BOX 100
P.S. P.S.
c
d
e
c
e
c Main Serial Interface
d Auxiliary Serial Interface
e External Trigger
c
d
e
C-BOX 100
Matrix-2000™
Terminal
Local Host
P.S.
PG6000
CAB-600X
d
c
Local Host
C-BOX 100
Matrix-21XX™
c Ethernet Connection (Cross Over Cable)
d Power Connection
e External Trigger
CAB-600
X
e
P.S.
PG6000
c Ethernet Connection (Straight-Through Cable)
d Power Connection
e External Trigger
C-BOX 100
Matrix-2000™
c
e
d
d
d
c
c
e
e
POWER
NETWORK
HOST
P.S.
