MATRIX 410™ QUICK GUIDE
10
RESET READER TO FACTORY DEFAULT (OPTIONAL)
If it ever becomes necessary to reset the reader to the factory default values, you can perform this procedure by
holding the X-PRESS™ push button pressed while powering up the reader. You must keep the X-PRESS™
push button pressed until the power up sequence is completed (several seconds) and all LEDs blink
simultaneously 3 times.
All LEDs remain on for about 1 second, then off for one second, the Configuration and Environmental parameters
are reset, and the status LED remains on. If connected through a CBX500 with display module, the message
"Default Set" is shown on the display.
STEP 7 – INSTALLING VISISET™ CONFIGURATION PROGRAM
VisiSet
™
is a Datalogic reader configuration tool providing several important advantages:
 Setup Wizard for rapid configuration and new users;
 Defined configuration directly stored in the reader;
 Communication protocol independent from the physical interface allowing to consider the reader as a remote
object to be configured and monitored.
To install VisiSet™, turn on the PC that will be used for the configuration, running Windows: 98/2000, NT
4.0, XP, Vista or 7, then insert the VisiSet™ CD-ROM, wait for the CD to autorun and follow the installation
procedure.
This configuration procedure assumes a laptop computer, running VisiSet™, is connected to the reader's auxiliary
port.
After installing and running the VisiSet™ software program the following window appears:

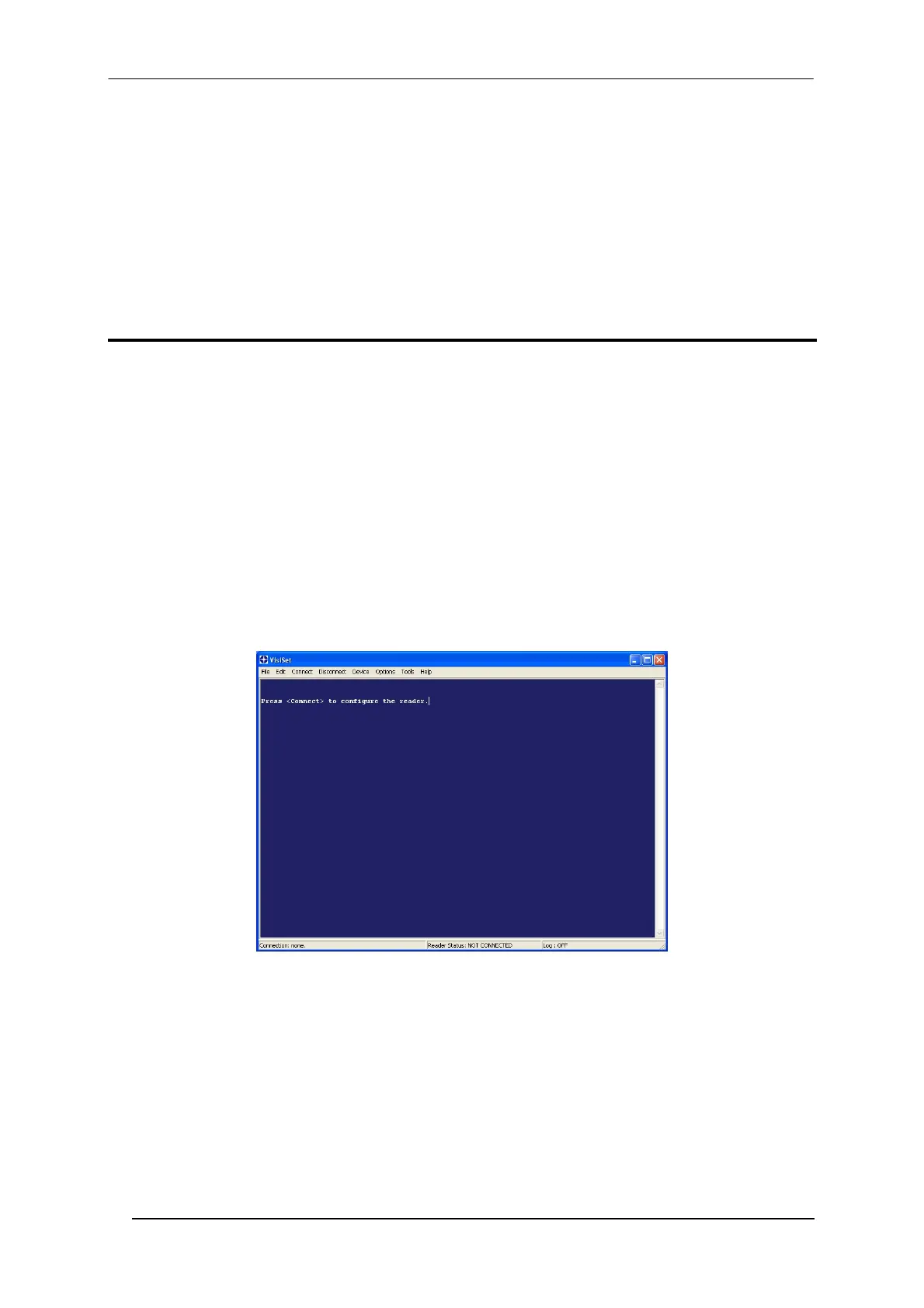

Figure 15 - VisiSet™ Opening Window
Set the communication parameters from the "Options" menu. Then select "Connect", the following window
appears:
