MATRIX 410™ QUICK GUIDE
11

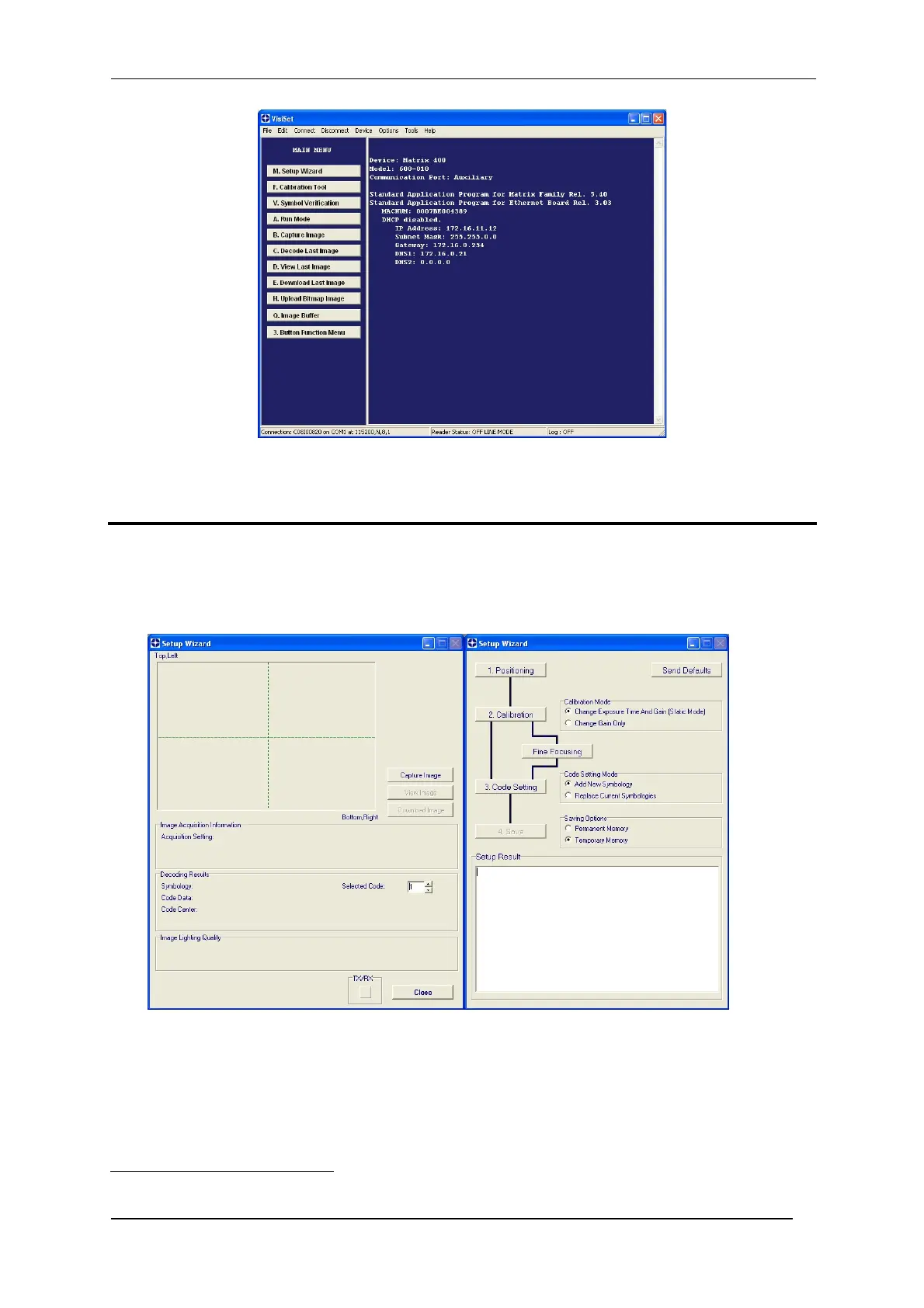

Figure 16 - VisiSet™ Main Window After Connection
STEP 8 – CONFIGURATION USING SETUP WIZARD
The Setup Wizard option is advised for rapid configuration or for new users. It allows reader configuration in a few
easy steps.
1. Select the Setup Wizard button from the Main menu.
2. Remove the lens cover in order to focus the reader and loosen the two Locking Knobs on the lens.
Adjust the Focus ring to the "Far position" and the Diaphragm ring to the "F4"
1
number setting which is the
preferred setting for installation.
Place the Grade A Barcode Test Chart in front of the reader at the correct reading distance (see step 3 and
the Optical Accessory Selection table in the Appendix of this Quick Reference Guide).
1
For far reading distances, the Diaphragm ring can be set to values between F2 and F4 to increase image lighting.
