MATRIX 410™ QUICK GUIDE
7
STEP 4 – FOCUS THE READER
Matrix 410™ provides a built-in tool called Blue Diamonds™ to aid focusing the reader. The Blue Diamonds™ are
accessed through the X-PRESS™ Interface.
1. Remove the lens cover in order to focus the reader.
2. Prepare the correct accessory lens for your application:
a. Loosen the two Locking Knobs on the lens.
b. Adjust the Focus ring to the "Far position" and the Diaphragm ring to the "F4"
1
number setting which is
the preferred setting for installation.
3. Power the reader on. During the reader startup (reset or restart phase), all the LEDs blink for one second. On
the connector side of the reader near the cable, the “POWER ON” LED (blue) indicates the reader is correctly
powered.
4. Enter the Focus function by pressing and holding the X-PRESS™ push button until the Focus LED is on.
5. Release the button to enter the Focus function. The Blue Diamonds™ turn on.
The procedure is as follows:
a. Adjust the Focus ring towards the "Near position" until the Blue
Diamonds™ are perfectly in focus, see Figure 8.
At long focal distances a "skew" angle may cause a noticeable
difference in focus between the two diamonds, in this case select
the best possible focus (both diamonds slightly out of focus).
Tighten the Focus Locking Knob.
b. Tighten the Diaphragm Locking Knob.
READ
Y
green
green
y
ellow
y
ellow
red
SETUP
FOCUS
TEST
LEARN
GOOD
TRIGGER
COM
STATUS

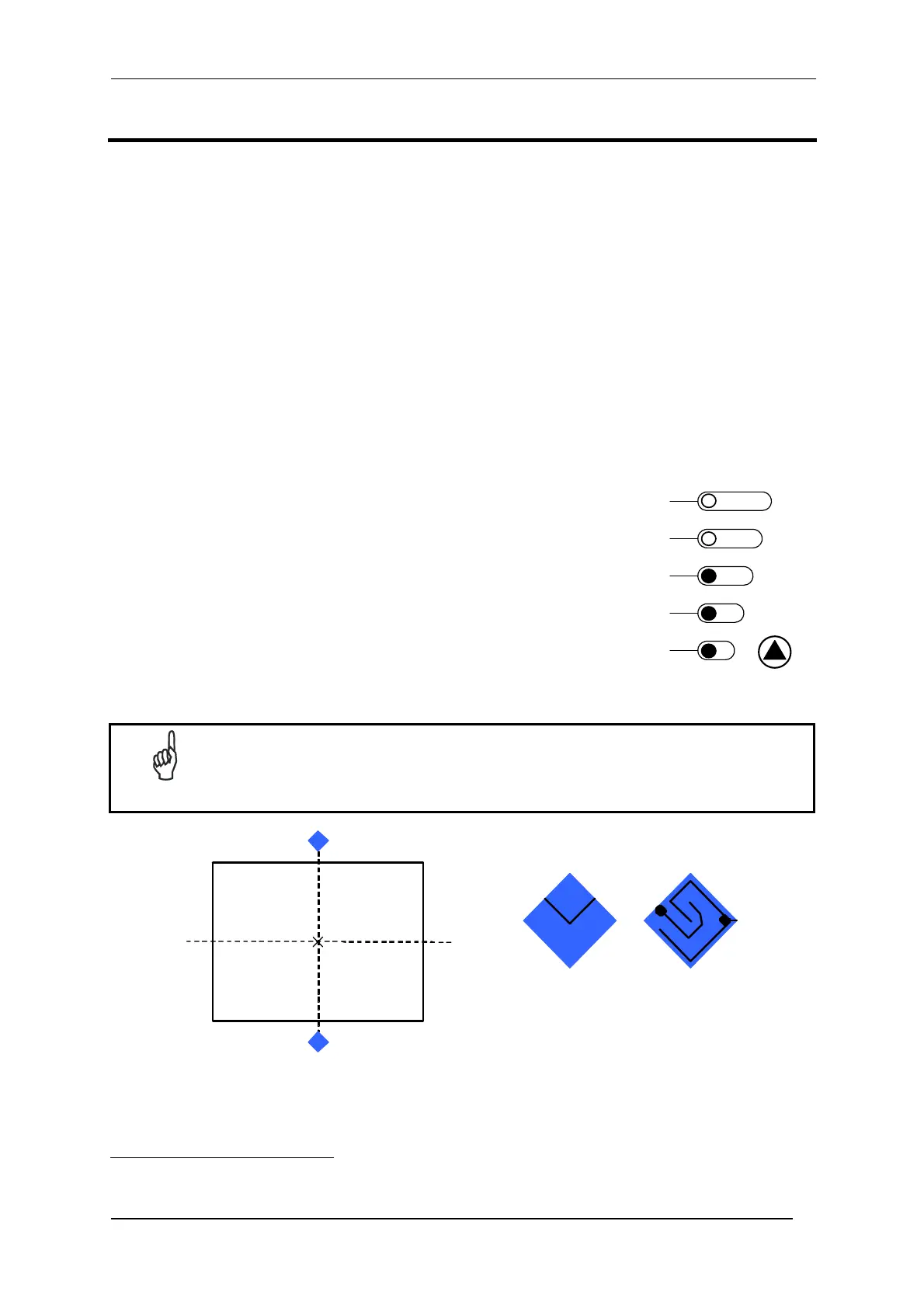

Figure 7 – X-PRESS™ Interface:
Focus Function
NOTE
If necessary you can use the Fine Focusing Tool in the VisiSet™ Setup Wizard for fine
focusing. See Step 8.
FOV
Your reader can have one of the
above types of Blue Diamonds™.
Blue Diamond™
in focus
Figure 8 – Focus Function Using Blue Diamonds™
6. Exit the Focus function by pressing the X-PRESS™ push button once. The Blue Diamonds™ turn off.
7. Replace the lens cover, screwing it tightly to the base.
1
For far reading distances, the Diaphragm ring can be set to values between F2 and F4 to increase image lighting and Blue
Diamond™ visibility.
