MATRIX 410™ QUICK GUIDE
6

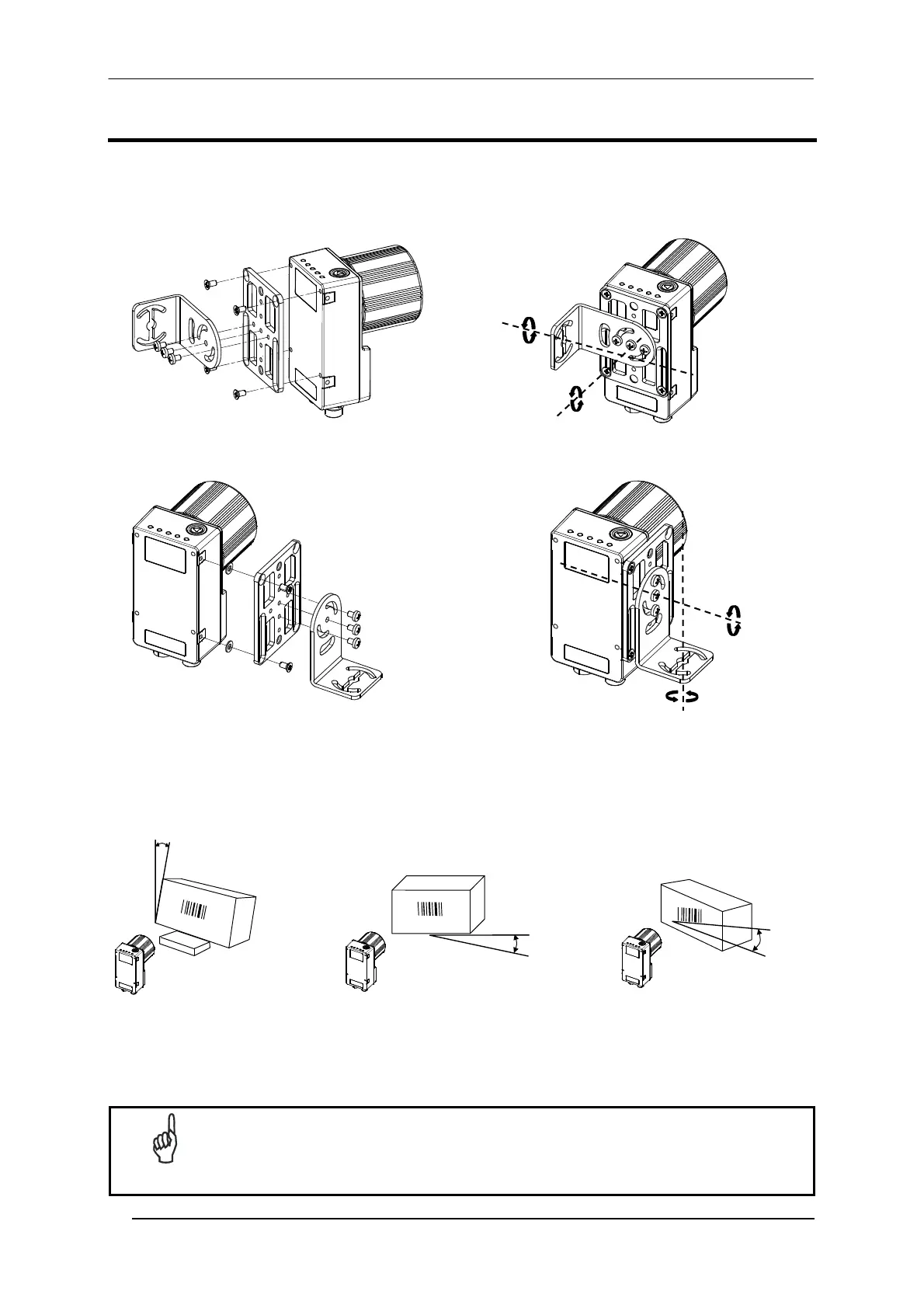

STEP 3 – MOUNT AND POSITION THE READER
1. To mount the Matrix 410™, use the mounting brackets to obtain the most suitable position for the reader.
Two of the most common mounting configurations are shown in the figures below. Other mounting solutions
are provided in the Matrix 410™ Reference Manual.
Figure 4 –Positioning with Mounting Bracket (Back)
Figure 5 –Positioning with Mounting Bracket (Side)
2. When mounting the Matrix 410™ take into consideration these three ideal label position angles: Pitch or Skew 10°
to 20° and Tilt 0°, although the reader can read a code at any tilt angle.
P
S
T
Minimize Assure at least 10° Minimize
Figure 6 – Pitch, Skew and Tilt Angles
3. Refer to the Optical Accessory Selection table in the Appendix of this Quick Reference Guide for FOV
calculation and minimum distance requirements according to the base/lens combination used for your
application.
NOTE
Rapid Configuration of the Matrix 410™ reader can be made either through the X-PRESS™
interface (steps 4-6) which requires no PC connection, or by using the VisiSet™ Setup
Wizard (steps 7-8). Select the procedure according to your needs.
Skew
Pitch
Tilt
Pitch
