MATRIX 410™ QUICK GUIDE
5
CBX100/500 Terminal Block Connectors
Main Interface
RS232 RS485 Full-Duplex RS485 Half-Duplex
TX TX+ RTX+
RTS TX- RTX-
RX
*RX+
CTS
*RX-
SGND SGND SGND
* Do not leave floating, see Reference Manual for connection details.
CAUTION
Do not connect GND, SGND and REF to different (external) ground references. GND, SGND
and REF are internally connected through filtering circuitry which can be permanently
damaged if subjected to voltage drops over 0.8 Vdc.
19-pin Connector Pinout for Matrix 410™
The table below gives the pinout of the 19-pin M16 male connector for connection to the power supply and
input/output signals. Use this pinout when the Matrix 410™ reader is connected by means of the 19-pin
connector:

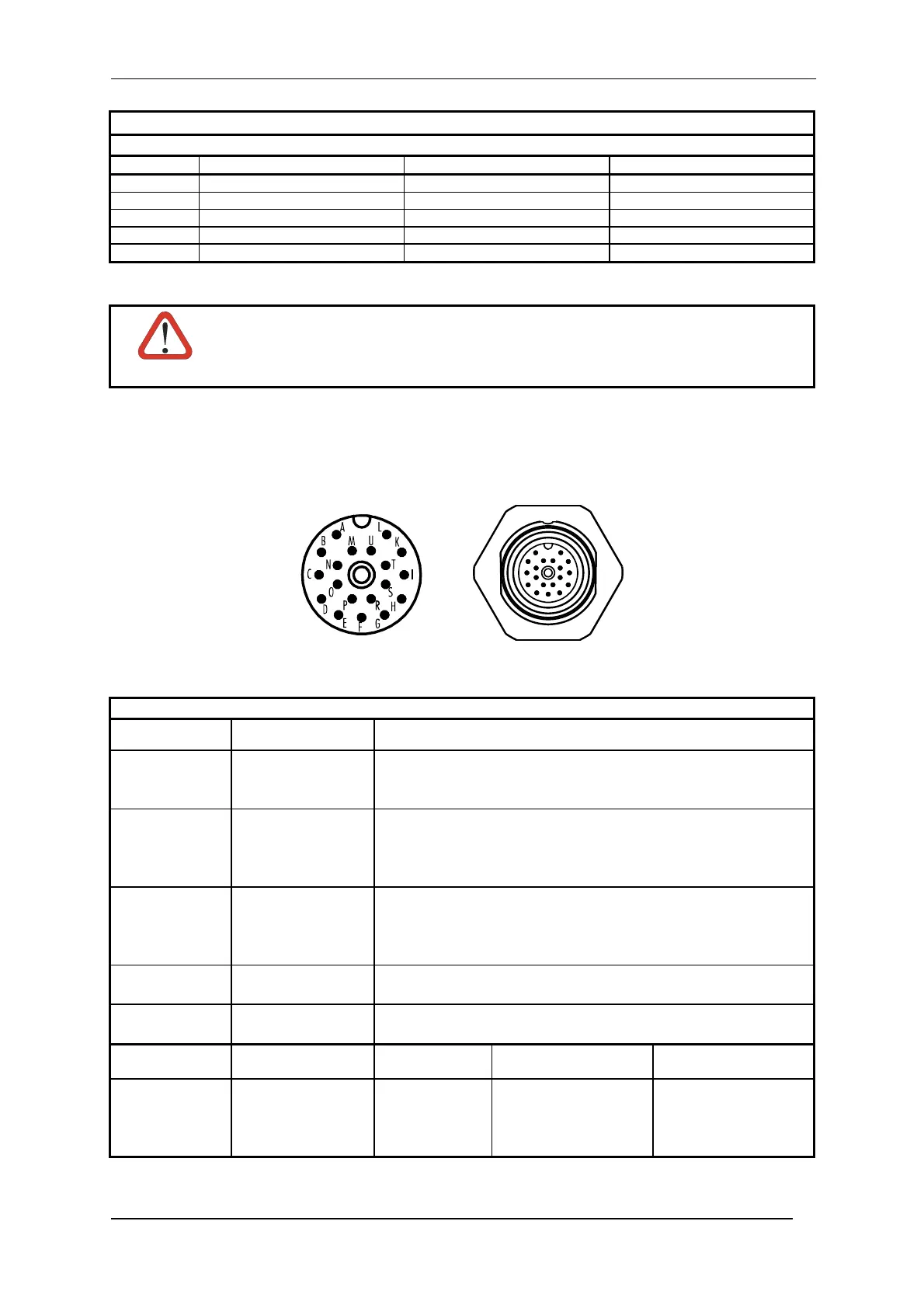

Figure 3 - 19-pin M16 Male Connector
19-pin M16 male connector pinout
Pin Name Function
A Vdc Power supply input voltage +
L GND Power supply input voltage -
K CHASSIS Cable shield internally connected by capacitor to the chassis
B I1A External Trigger A (polarity insensitive)
C I1B External Trigger B (polarity insensitive)
D I2A Input 2 A (polarity insensitive)
E I2B Input 2 B (polarity insensitive)
H O1+ Output 1 +
F O1- Output 1 -
G O2+ Output 2 +
I O2- Output 2 -
S RX Auxiliary RS232 RX
O TX Auxiliary RS232 TX
R ID+ ID-NET™ network +
P ID- ID-NET™ network -
Pin Name RS232
RS485
Full-Duplex
RS485
Half-Duplex
M TX TX+ RTX+
U RX
*RX+
N RTS TX- RTX-
T
MAIN INTERFACE
(SW SELECTABLE)
CTS
*RX-
* Do not leave floating, see Reference Manual for connection details.
