MATRIX 410™ QUICK GUIDE
17
ADVANCED READER CONFIGURATION
For further details on advanced product configuration, refer to the complete Reference Manual on the installation
CD-ROM or downloadable from the web site at www.automation.datalogic.com.
The following are alternative or advanced reader configuration methods:
ADVANCED CONFIGURATION USING VISISET™
Advanced configuration can be performed through the VisiSet™ program by selecting Device> Get Configuration
From Temporary Memory to open the Parameter Setup window in off-line mode. Advanced configuration is
addressed to expert users being able to complete a detailed reader configuration. The desired parameters can be
defined in the various folders of the Parameter Setup window and then sent to the reader memory (either
Temporary or Permanent):

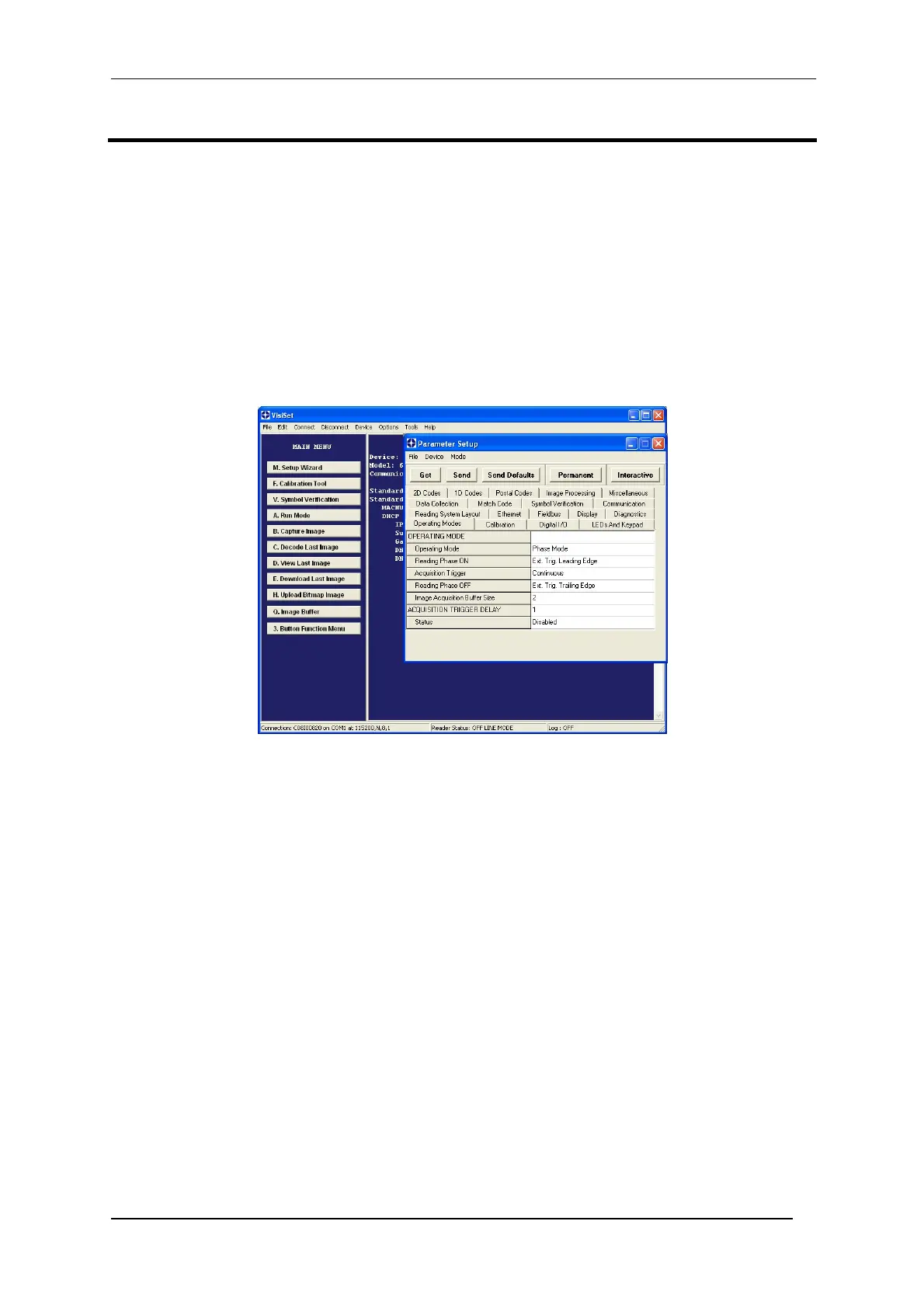

Figure 18 - VisiSet™ Parameter Setup Window
HOST MODE PROGRAMMING
The reader can also be configured from a host computer using the Host Mode programming procedure, by
commands via the serial interface. See the Host Mode Programming file on the CD-ROM.
ALTERNATIVE LAYOUTS
If you need to install an Ethernet network, ID-NET™ network, Fieldbus network, Pass-Through network,
Multiplexer network or an RS232 Master/Slave refer to the Matrix 410™ Reference Manual.
The reader can also be setup for alternative layouts by reading programming barcodes. See the "Setup
Procedure Using Programming Barcodes" printable from the CD-ROM.
CODE QUALITY VERIFICATION
Matrix 410™ can be used as a Code Quality Verifier according to the ISO/IEC 15415, ISO/IEC 15416, AS9132,
and AIM DPM Standards. For more details see the Matrix 410™ Code Quality Verifier Solution manual on the
CD-ROM.
