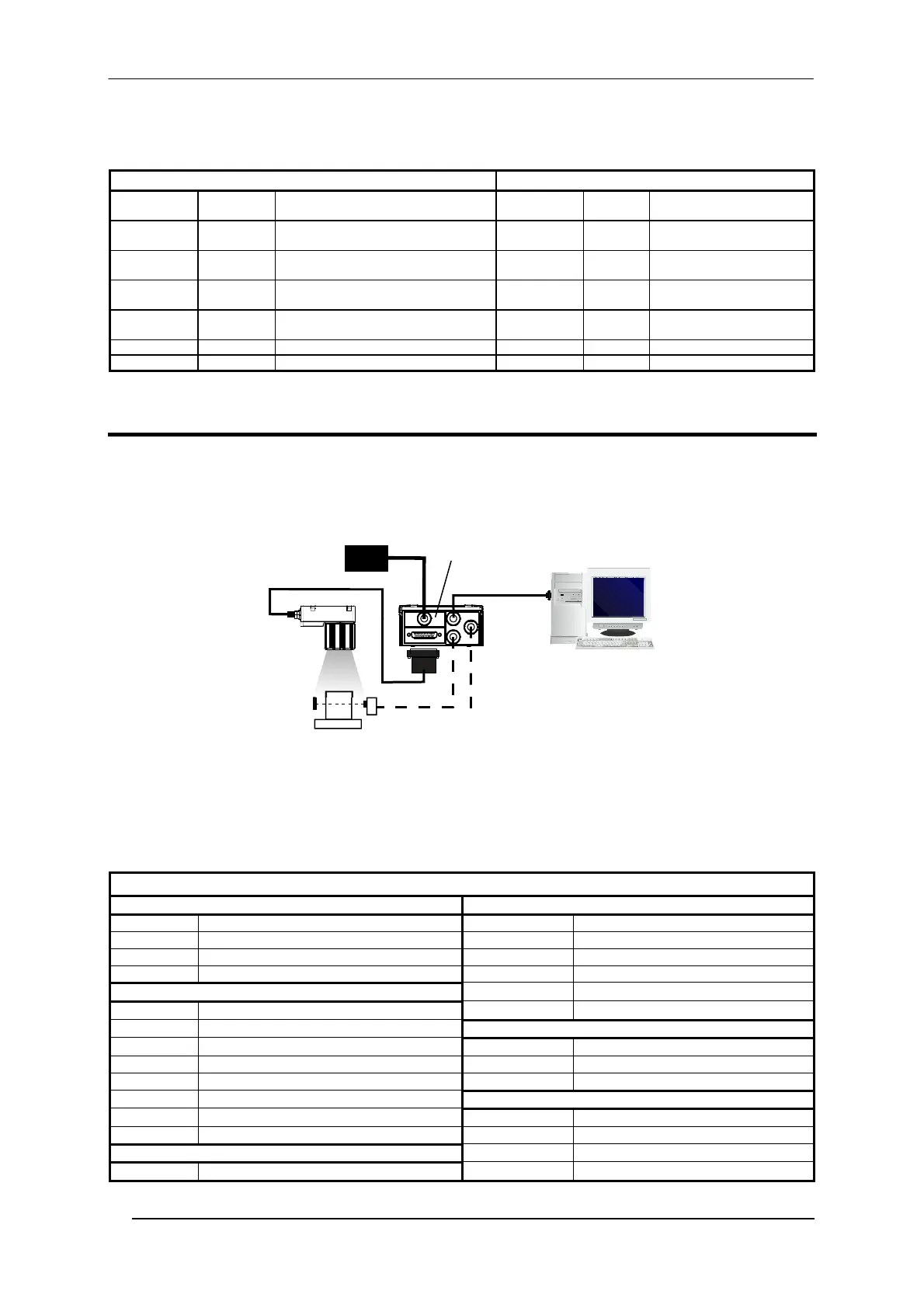

MATRIX 410™ QUICK GUIDE
4
REQUIRED ACCESSORIES
The following table shows the correct lens/illuminator combinations to be used for Matrix 410™ imager assembly.
Lenses Internal Illuminators
93ACC1793 LNS-1006 6 mm C-Mount Lens
(only for Matrix 410 600-0x0 models)
93A401020
93A401022
LT-002
LT-004
Red Wide Angle
White Wide Angle
93ACC1794 LNS-1109 9 mm C-Mount Lens 93A401020
93A401022
LT-002
LT-004
Red Wide Angle
White Wide Angle
93ACC1795 LNS-1112 12.5 mm C-Mount Lens 93A401020
93A401022
LT-002
LT-004
Red Wide Angle
White Wide Angle
93ACC1796 LNS-1116 16 mm C-Mount Lens 93A401019
93A401021
LT-001
LT-003
Red Narrow Angle
White Narrow Angle
93ACC1797 LNS-1125 25 mm C-Mount Lens 93A401019
93A401021
LT-001
LT-003
Red Narrow Angle
White Narrow Angle
93ACC1798 LNS-1135 35 mm C-Mount Lens 93A401024 LT-006 Red Super Narrow Angle
93ACC1799 LNS-1150 50 mm C-Mount Lens 93A401024 LT-006 Red Super Narrow Angle
STEP 2 – CONNECT THE SYSTEM
To connect the system in a Stand Alone configuration, you need the hardware indicated in Figure 2. In this layout
the data is transmitted to the Host on the main serial interface. Data can also be transmitted on the RS232
auxiliary interface independently from the main interface selection. When One Shot or Phase Mode Operating
mode is used, the reader is activated by an External Trigger (photoelectric sensor) when the object enters its
reading zone.
Figure 2 – Matrix 410™ in Stand Alone Layout
CBX100/CBX500 Pinout for Matrix 410™
The table below gives the pinout of the CBX100/CBX500 terminal block connectors. Use this pinout when the
Matrix 410™ reader is connected by means of the CBX100/CBX500:
CBX100/500 Terminal Block Connectors
Power Outputs
Vdc Power Supply Input Voltage + +V Power Source - Outputs
GND Power Supply Input Voltage - -V Power Reference - Outputs
Earth Protection Earth Ground O1+ Output 1 +
O1- Output 1 -
Inputs
O2+ Output 2 +
+V Power Source – External Trigger O2- Output 2 -
I1A External Trigger A (polarity insensitive)
Auxiliary Interface
I1B External Trigger B (polarity insensitive) TX Auxiliary Interface TX
-V Power Reference – External Trigger RX Auxiliary Interface RX
+V Power Source – Inputs SGND Auxiliary Interface Reference
I2A Input 2 A (polarity insensitive)
ID-NET™
I2B Input 2 B (polarity insensitive) REF Network Reference
-V Power Reference – Inputs ID+ ID-NET™ network +
Shield
ID- ID-NET™ network -
Shield Network Cable Shield
Matrix 410™
Host
PG 6000
P.S.
*
* External Trigger or Presence Senso
r
(for One Shot or Phase Mode)
CBX
Main Interface
CAB-MS01
I/O, AUX
