MATRIX 410™ QUICK GUIDE
14

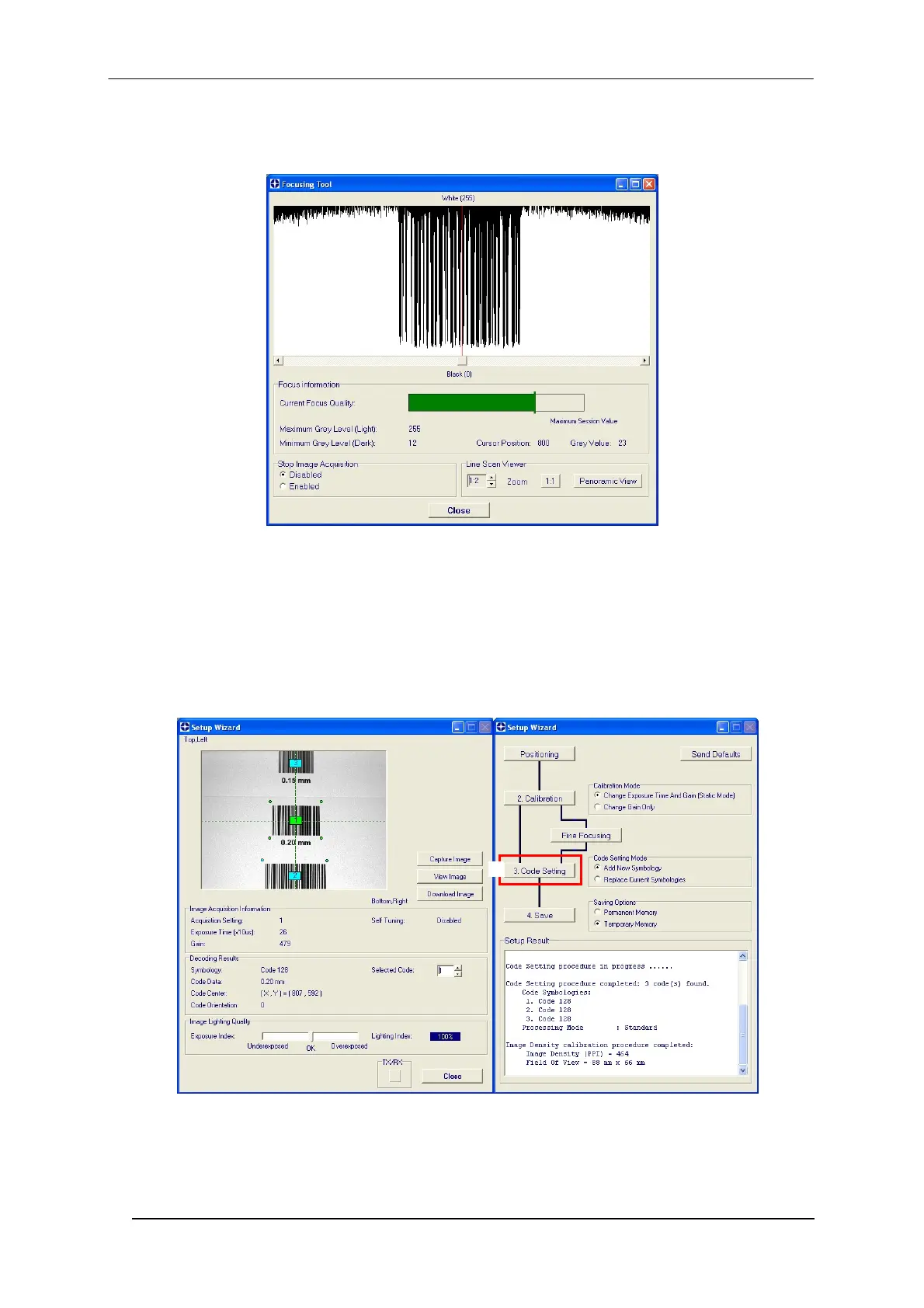

Rotate the Focusing ring in the opposite direction. The Current Focus Quality Bar (green) increases towards
the vertical optimal focus line (green) until the optimal focus is reached; the Current Focus Quality Bar
touches the vertical optimal focus line (indicating the best focus).
Tighten the Locking Knobs on the lens and press the "Close" button to return to the Setup Wizard.
6. Select a Code Setting Mode choice and press the "Code Setting" button.
Using the Grade A Barcode Test Chart, this step performs image density calibration in order for Matrix
410™ to function correctly and to the fullest extent of its capabilities.
The Setup Result section of the Setup Wizard window shows the code type results and the image density
calibration settings.
6
