Datalogic QuickScan Lite QW2400 Quick Reference Guide

2 QuickScan™ Lite QW2400
Setting Up the Reader
Follow the steps below to connect and get your reader up
and communicating with its host.
1. Connect the Cable to the reader and the Host as
shown below.
2. Configure the Interface (see page 8).
3. Program the Reader starting on page 22 (optional, as
needed).

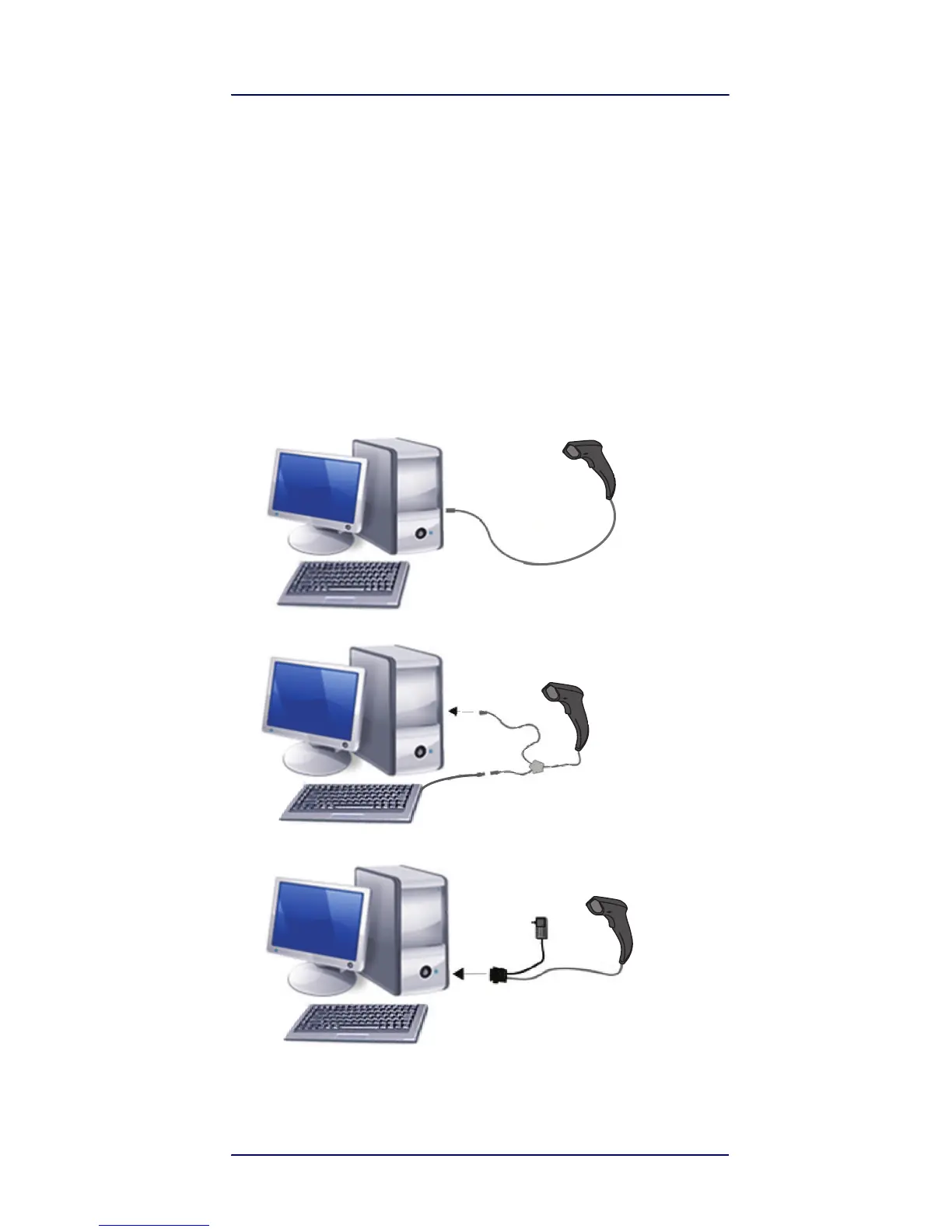

Connecting to the Host Interface
USB
QW2420
only
QW2470
only
WEDGE
RS-232
QW2470
only

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
