Datalogic QuickScan Lite QW2400 Quick Reference Guide

4 QuickScan™ Lite QW2400
Using the QuickScan Lite QW24XX
The QuickScan Lite QW24XX normally functions by captur-
ing and decoding codes. The aiming system is activated on
trigger pull and indicates the center of the field of view
which should be positioned over the bar code:

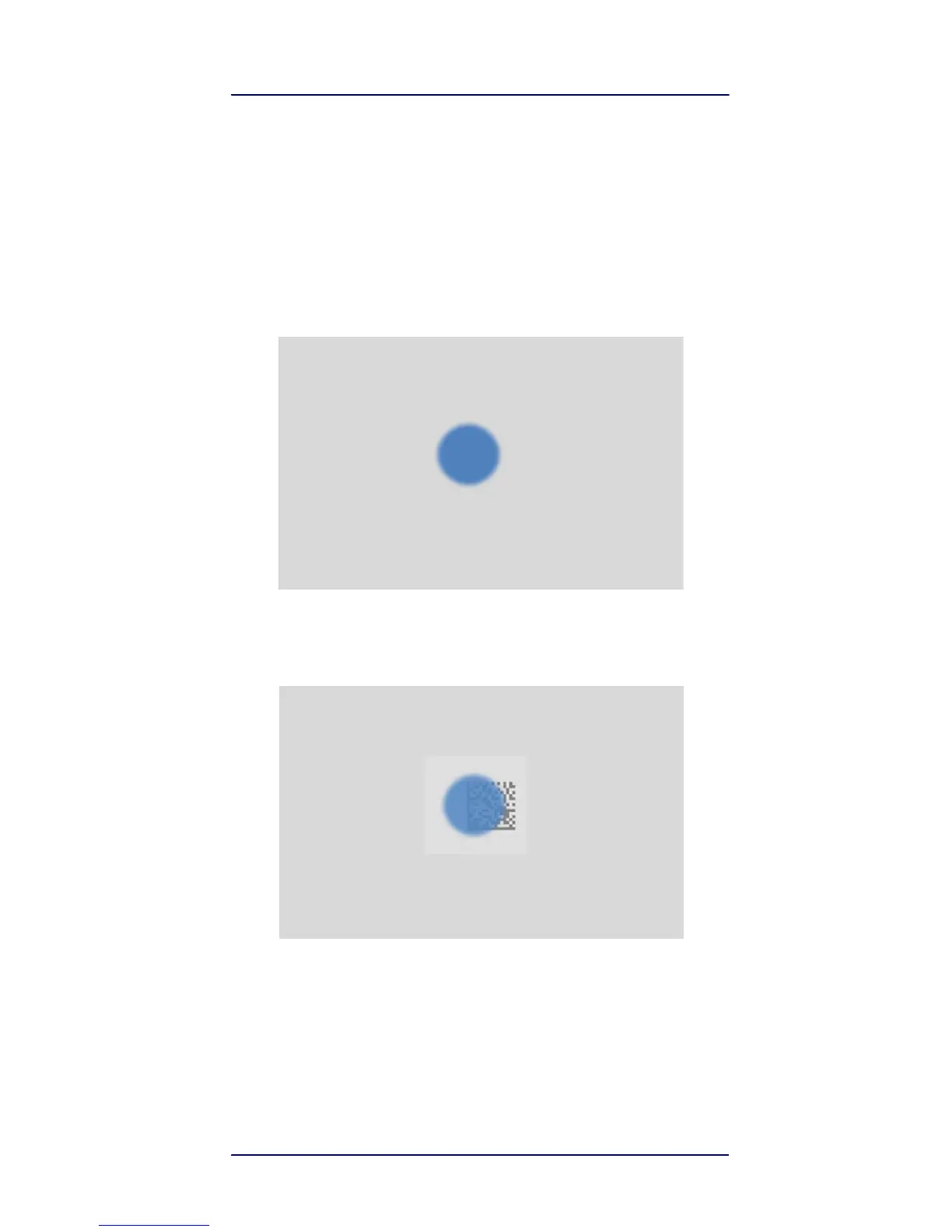

Aiming System
Relative Size and Location of Aiming System Pattern
2D Matrix Symbol

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
