Datalogic QuickScan QM2430 User Manual

Connecting the Base Station
Quick Reference Guide 7
Using the BC2030™ Radio Base
Radio Base LEDs
LEDs on the QuickScan Base provide information about the
Base as well as battery charging status, as shown in Figure 6.

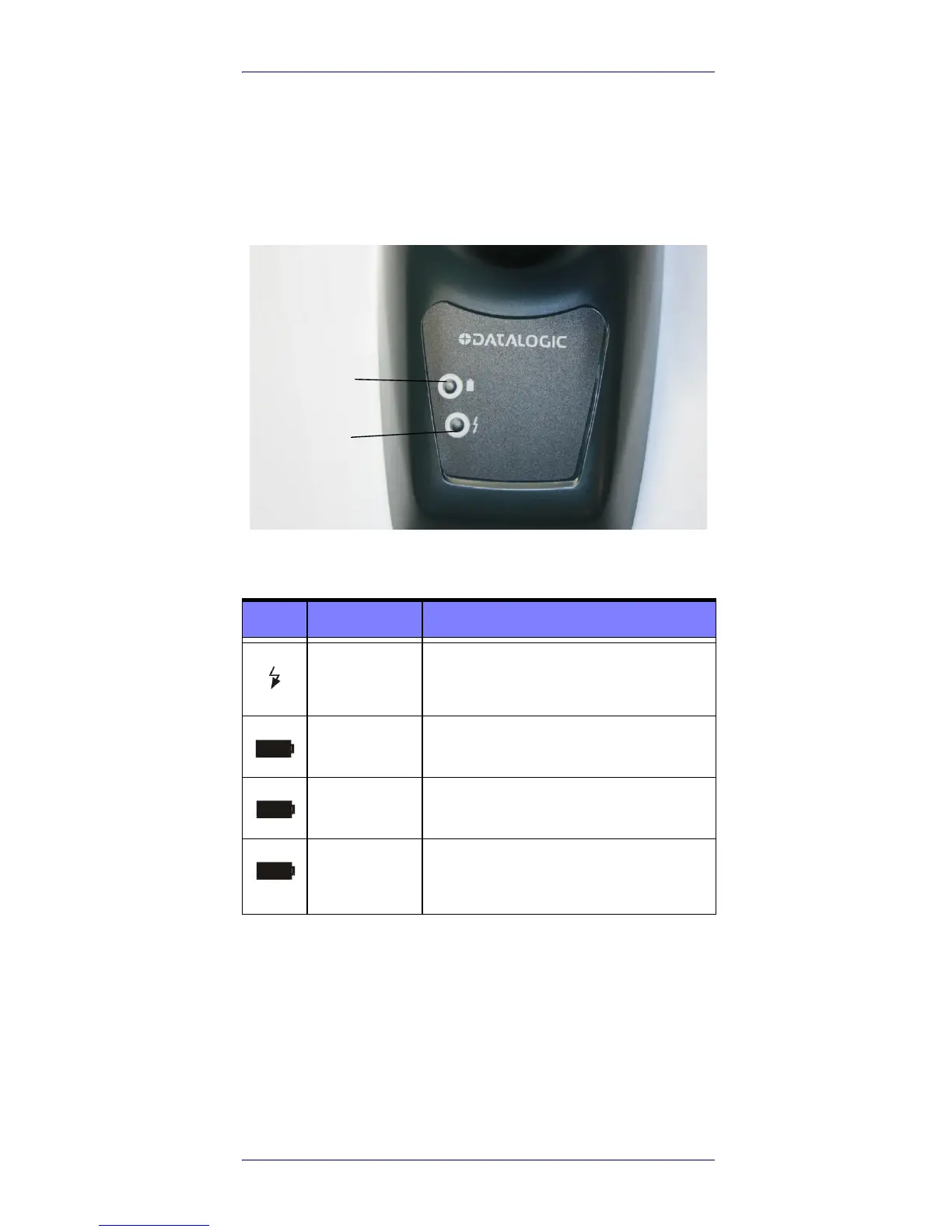

Figure 6. QuickScan Base LEDs
Table 1. Radio Base LEDs
LED STATUS
Power on /
Data
Yellow On = Base is powered
Yellow Blinking = Base receives data and
commands from the Host or the Reader.
Charging Red On = the Battery is charging.
Charge com-
pleted
Green On = the Battery is completely
charged.
Charging +
Charge com-
pleted
Red and Green Blinking together = the
Reader is not correctly placed onto the
Base.
Yellow LED
Red LED /
Green LED
