Charging the Batteries
Quick Reference Guide 9

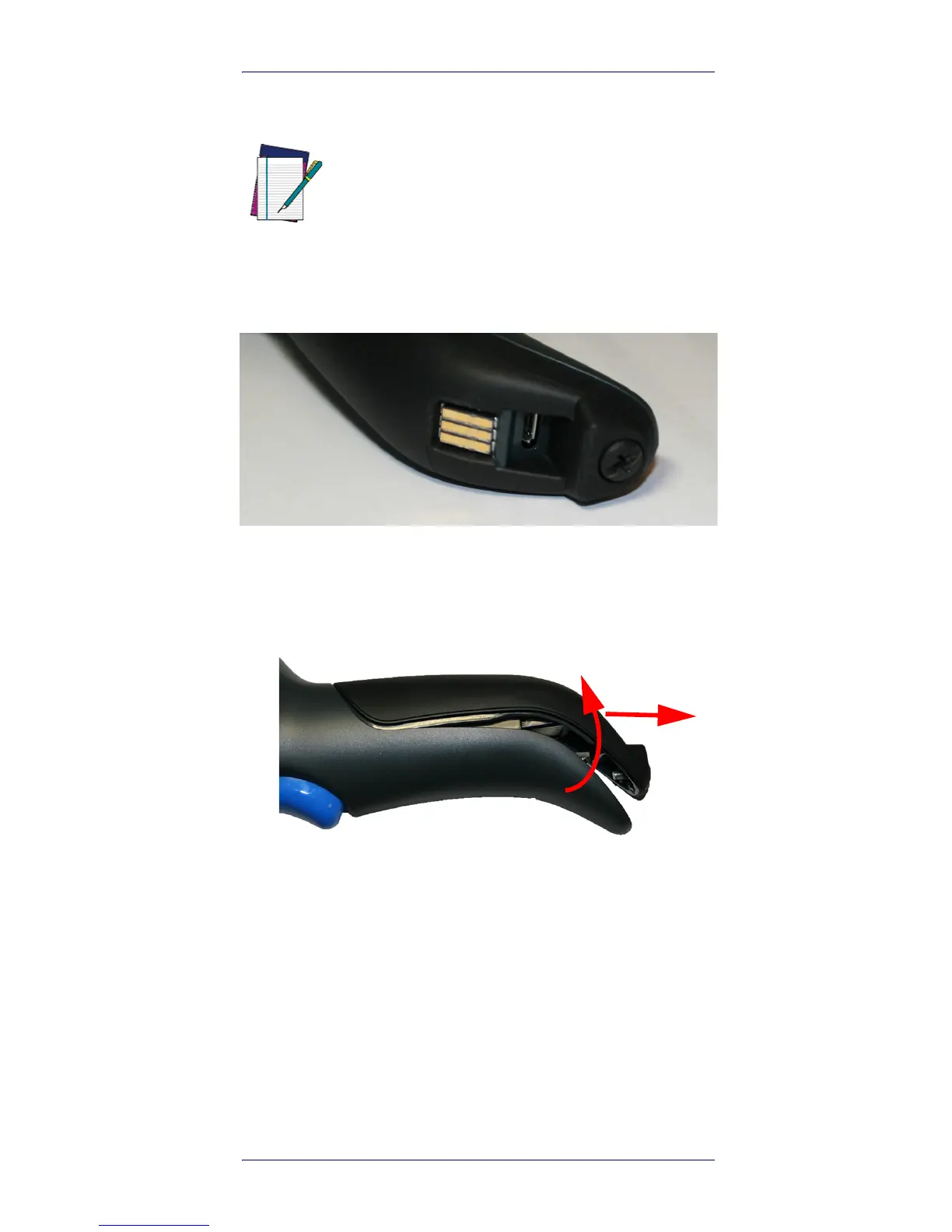

Replacing the Battery Pack
1. Using a coin or a screwdriver, unscrew the captive
screw located on the bottom of the battery pack until it
is disengaged.
The battery pack will rise slightly in the rear, pushed by
the contact springs.
2. Extract the battery pack by slightly rotating the pack
and pulling away from the reader.
To mount the new battery pack reverse the process:
1. Insert the top of the new pack inside the reader’s han-
dle.
2. Rotate the battery pack downward while pressing the
bottom side of the battery pack (to seat securely into
the contact springs) so that the edges of the pack and
the handle board are aligned, while tightening the cap-
tive screw in the bottom of the handle.
NOTE
Before proceeding, read “Battery Safety” in
the Regulatory Addendum for this manual.
Datalogic recommends annual replacement of
rechargeable battery packs to ensure maxi-
mum performance.
