Datalogic QuickScan QS2500 User Manual

Product Reference Guide 19
Inverted Image Scan: With this option enabled, the QS2500 will scan
black/white bar codes with a white/black background.
CTS Trigger: This operation enables an external device to control scanning
by applying an external trigger signal to the CTS input. When active, this
signal causes scanning to begin as the QS2500’s trigger is depressed.
Visible Scan Field Indicator: This function allows a visible indicator to be
emitted when the trigger is pulled.

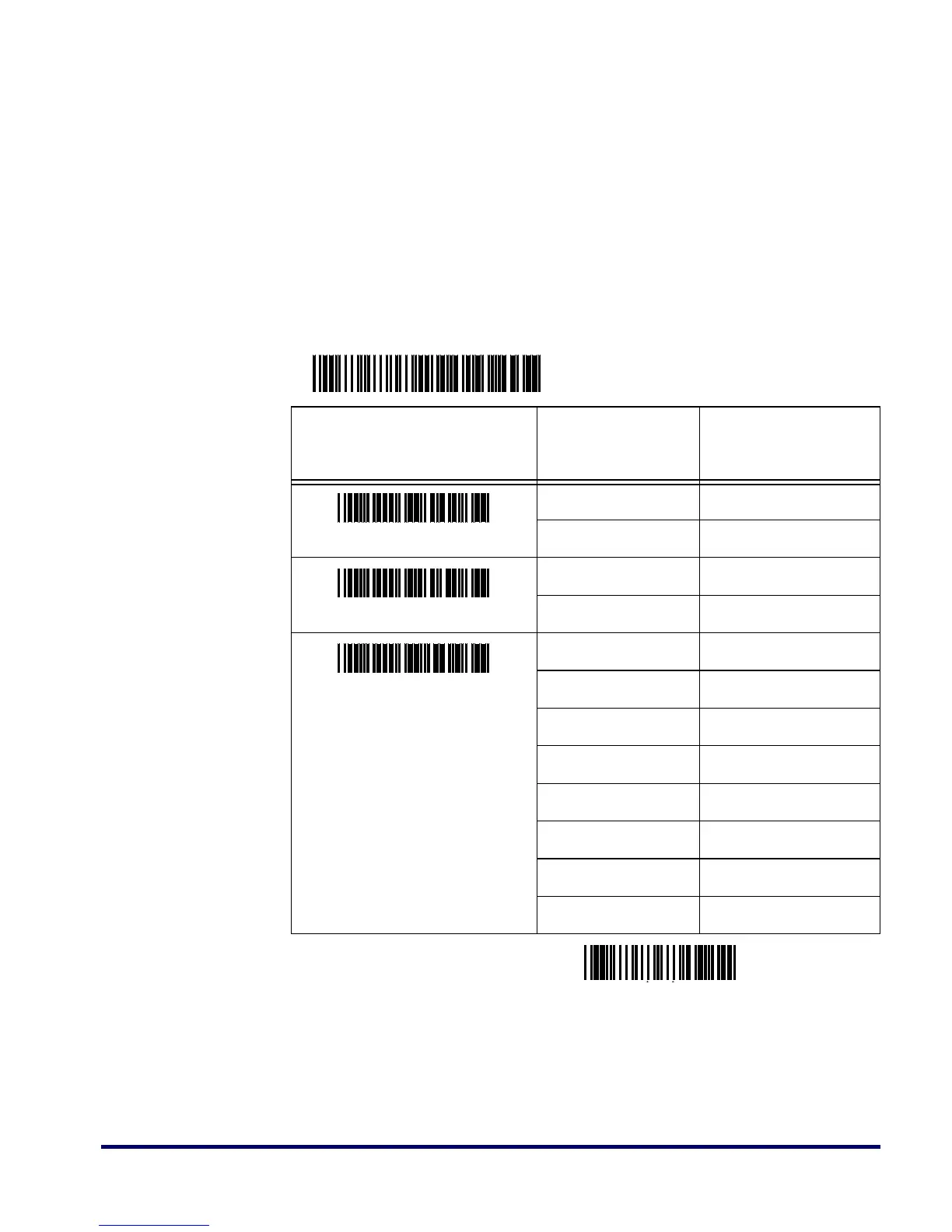

Option Bar Code Option
Alphanumeric
Entry
Inverted Image Scan
Disable 00*
Enable 01
CTS Trigger
Disable 00*
Enable 01
Visible Scan Field
Indicator
Disable 00*
30 second 01
60 second 02
90 second 03
120 second 04
150 second 05
180 second 06
Continuous 07
Start Program
$$
Exit

Datalogic QuickScan QS2500 Specifications

General

Wavelength	660 nm
Maximum scan area	102/127 mm
Yaw reading angle	-75 - 75 °
Decoding standards	UPC A, E / EAN 8, 13 / JAN 8, 13, Code 128, Code 93, Pharmacode 39, Code 39, Codabar, Interleaved 2 - 5, Industrial 2 - 5, Matrix 2 - 5, GS1 DataBar, UK/Plessey, MSI/Plessey, Code 16K, Telepen, PDF-417, Code 11
Pitch reading angle	-60 - 60 °
Input voltage	5 V
Power consumption	250 mA
Dimensions (WxDxH)	74 x 114 x 185 mm
Certification	UL, cUL, FCC-A, EN 55022-B, VCCI-A, IEC 60825 Class 1 LED, EU RoHS
Product color	Gray
Storage temperature (T-T)	-30 - 65 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	179 g
