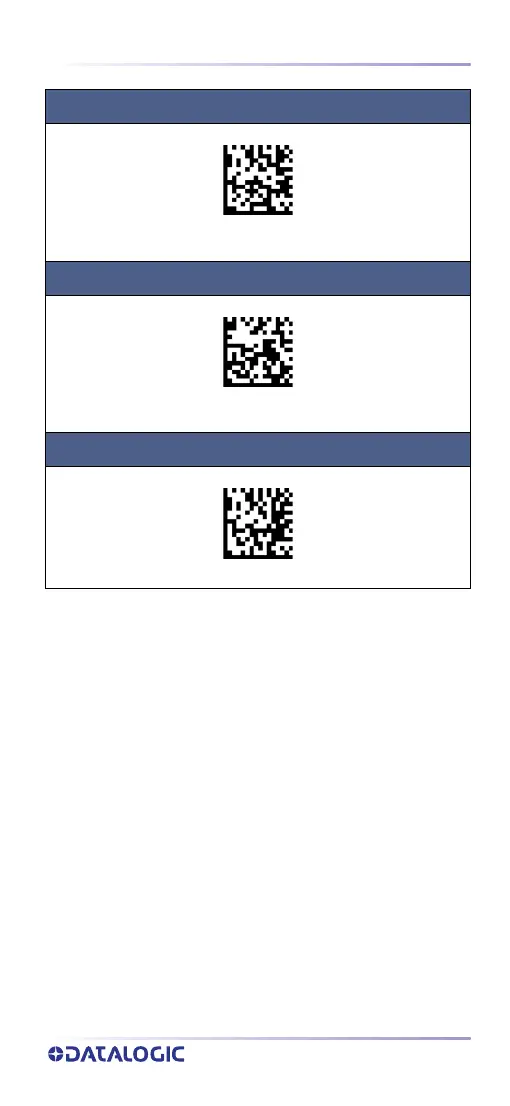

Configuring the Interface

QUICK REFERENCE GUIDE

USB-OEM

Select USB-OEM

USB-OEM (can be used for OPOS/UPOS/JavaPOS)

USB-COMPOSITE

Select USB-Composite

USB-Composite (Keyboard + COM)

IBM46XX

Select IBM46xx Port 9b

a. Available only for QuickScan

™

QD2500

Default Chapter3
- Table of Contents3
End User Software License Agreement5
- Software Product Policy10
About the Scanner11
- Omni-Directional Operating12
- Decoding12
- Imaging12
- Hands Free Stand/Holder13
- End-Cap Cover14
- End-Cap Cover Disassembly Procedure14
Setting up the Reader15
- Connecting to the Host Interface15
- Disconneting the Cable16
Using the Quickscan™ 250017
- Quickscan™ QD250017
- Relative Size and Location of Quickscan™ Qd2500'S Aiming System Pattern on Linear Bar Code18
- Quickscan™ QW250018
Quickscan™ Qw2500'S Aiming System18
- Relative Size and Location of Quickscan™ Qw2500'S Aiming System Pattern on 2D Matrix Symbol18
- Relative Size and Location of Quickscan™ Qw2500'S Aiming System Pattern on Linear Bar Code19
- Relative Size and Location of Green Spot (QD2500 and QW2500)19
Parts of the Reader20
Selecting the Interface Type20
- Interface Selection20
Configuring the Interface21
- Keyboard Interface24
- Scancode Tables25
- Country Mode25
Programming29
- Using Programming Bar Codes29
- Configure Other Settings29
- Resetting Product Defaults29
Numlock30
Caps Lock State31
Reading Parameters32
- Aiming System32
- Good Read Green Spot Duration32
Operating Modes33
- Scan Mode33
Pick Mode36
Multiple Label Reading36
Technical Specifications37
LED and Beeper Indications40
Troubleshooting41
Warranty42
Ergonomic Recommendations43
Technical Support43
- Support through the Website43
- Reseller Technical Support43
Cleaning Procedure44
- Common Cleaning Solutions44
- Cleaning Enclosure and Window Surfaces45
