14 E-4203/E-4204/E-4304
3.3.1 Loading Media for Peel Configuration
1. Open the cover.
2. Push the Printhead Latch down and raise the Printhead Carrier
Assembly.
3. Place a roll of media (labels facing up) on the Media Hub and insert
them into the printer. Slide the Media Hub Flange with its smooth
side towards media onto the Media Hub.
4. Pull the Peel Lever forward to the ‘Open’ position.

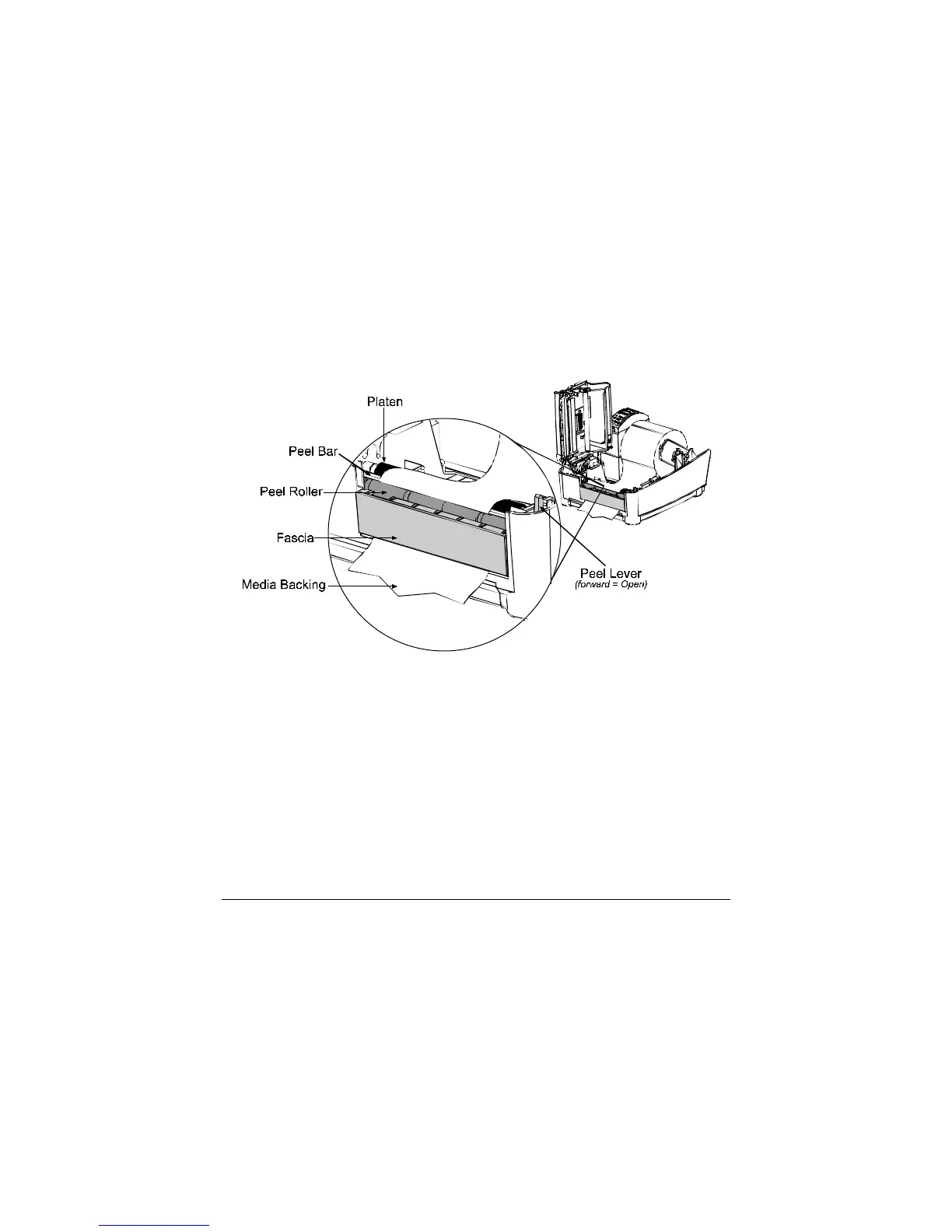

5. Remove 6 (152 mm) of labels from the backing. Route the Media
Backing over the Platen and Peel Bar and behind the Peel Roller and
Fascia as shown below.
6. Push the Peel Lever back to the ‘Closed’ position.
7. Close the Printhead Carrier Assembly and press down until it locks
into place.
8. Close the cover and press the Feed button several times to advance
the media and ensure proper tracking. The labels will separate
automatically as it is fed through the printer. (If the printer does not
correctly sense the top of each label, as denoted by the FAULT Light,
it may be necessary to perform the Calibration Procedure, Section
4.6.)
