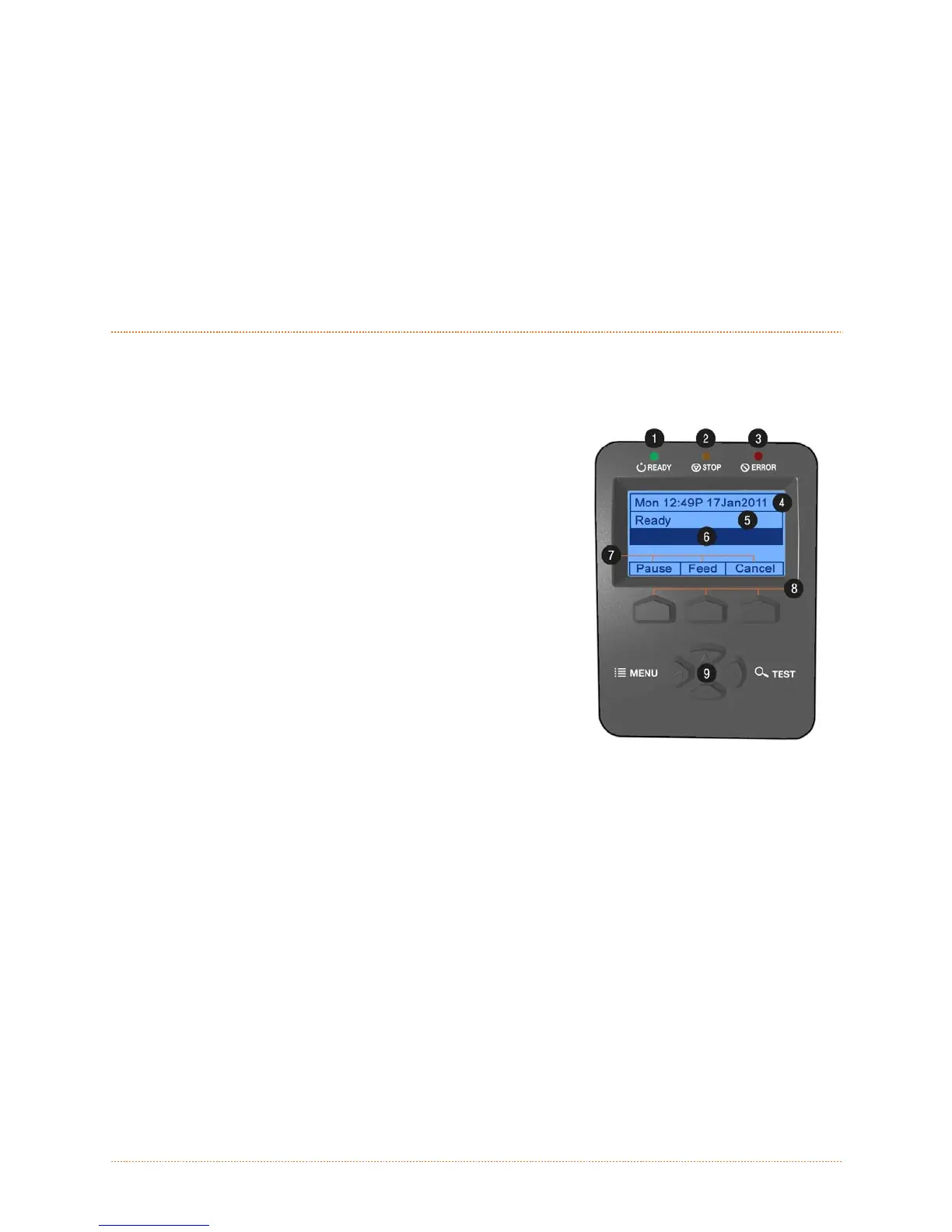

The Control Panel is an event-driven interface composed of a graphic display and keypad. In
addition to providing current printer information, the mode-dependent panel allows the items in
the main display area and the key functions to change as operational events require.
 Ready/Receiving Data
 Stop/Paused
 Fault/Error
 Time and Date
 Status Line
 Icon Status Line (see section 3.1.1)
 Soft Key Labels
 Soft Keys
 Menu Navigation and Control Buttons (see chapter 4)

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
