Printhead Pressure Adjustment should only be performed after attempting to improve print quality
through the use of other print quality controls.
A. With media loaded, download your label format (or use a Test Menu format) then begin
printing a small batch of labels.
B. While observing the printed output, turn each Pressure Adjustment Screw (use a small coin or
screwdriver) by the same amount until the image is complete, with even contrast:
 Counterclockwise (+) to increase applied pressure, or;
 Clockwise (-) to decrease applied pressure.

Ensure that each arrow points in the same direction.


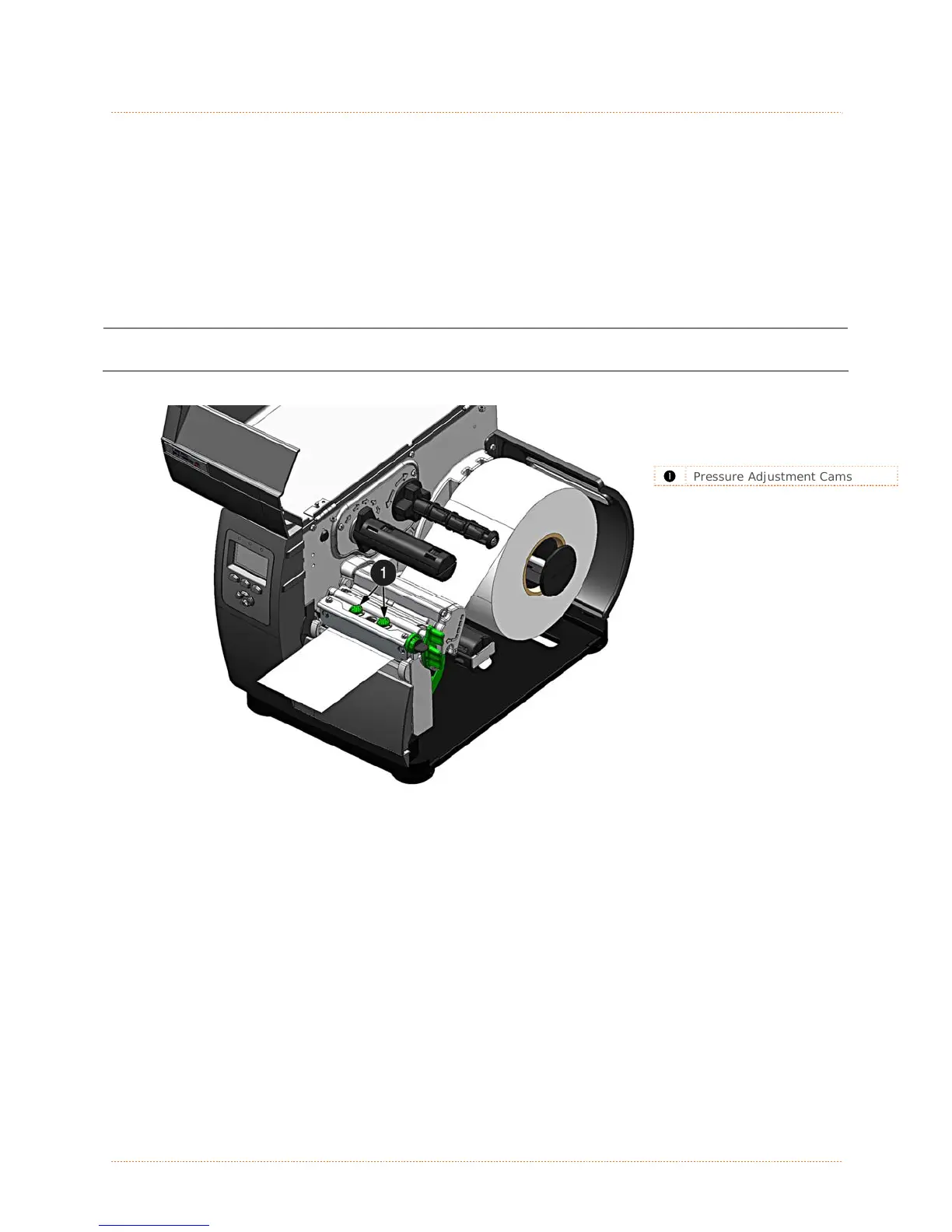

Pressure Adjustment Cams

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
