2: Installation
2-10 PRC1077-MSOP
To install the PRC1077 on the OA3633/VRC adapter (refer to the figure
above):
1. Remove rubber protective cap from the power/control connector at the
back of the mount. Slide the OA3633/VRC adapter onto the
MT-1029/VRC shock mount and clamp in place with the two mounting
clamps.
2. Slide the PRC1077 transceiver onto the OA3633/U adapter and clamp in
place with the two mounting clamps.
3. On the PRC1077, remove the protective cap from the POWER connector.
Connect the CX-4655/GRC cable, provided with the OA3633/VRC
adapter, to the PRC1077 POWER connector and to the OA3633/VRC
adapter SET POWER connector.
4. Continue with standard 24 Vdc 5W mobile system installation procedure
(steps 4 to 6) above.

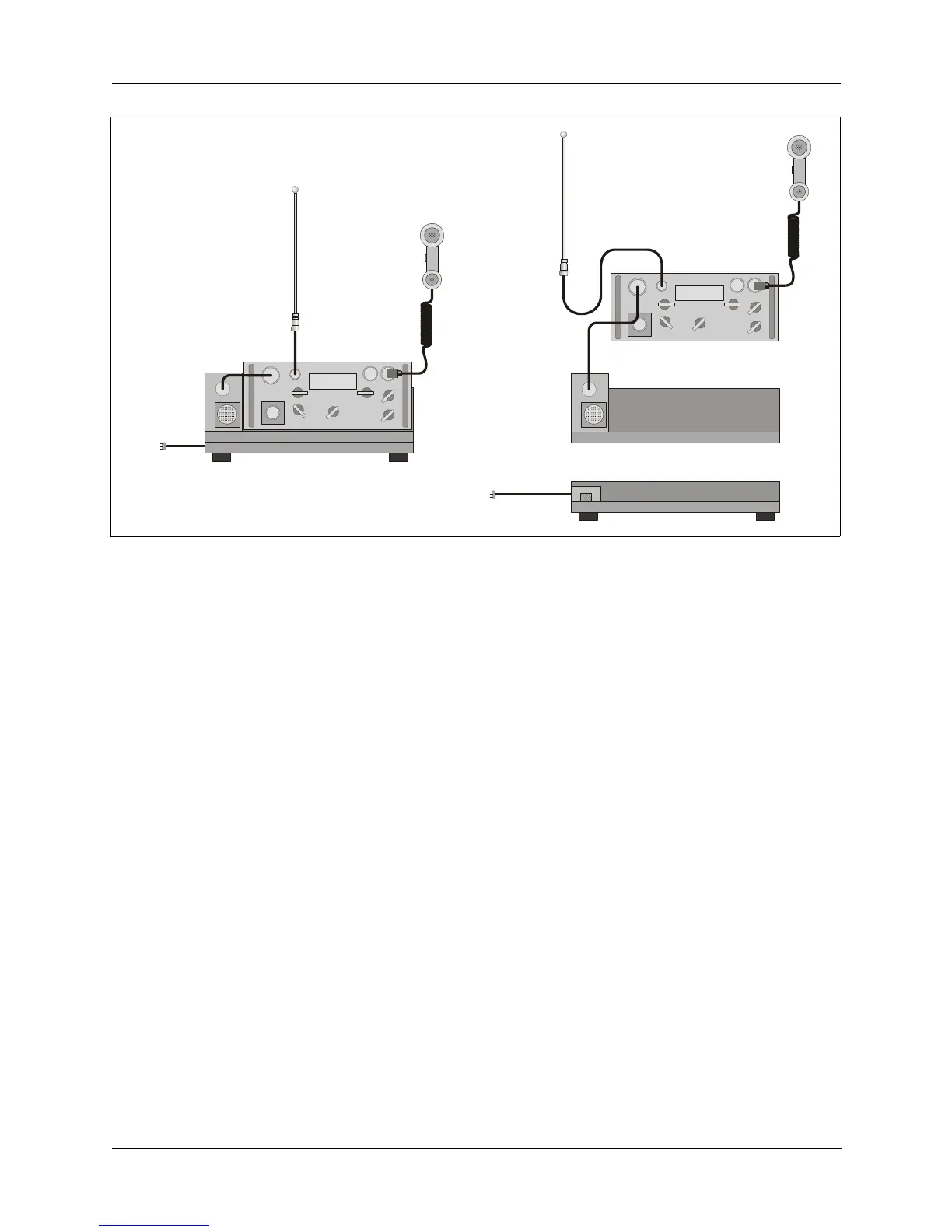

Figure 2-6. 5W 24 Vdc Mobile System with OA3633/VRC Adapter
MH
S
PRC1077
C991577
OA3633/VRC
C991580
to
+24 Vdc
source
PRC1077
C991577
4242-MK2
MHS
MT-1
0
2
9/
VR
C
CX-4655/GRC
4242-MK2
C991577
to
+24 Vdc
source
