PRC1077-MSOP 3-1
CHAPTER 3
OPERATION
Quick Start
For basic operation, the PRC1077 needs a battery, an antenna, and a handset. To
operate the PRC1077:
1. Install a fully charged battery.
2. Install an antenna.
3. Install a handset.
4. Turn the Power switch to the desired power level:

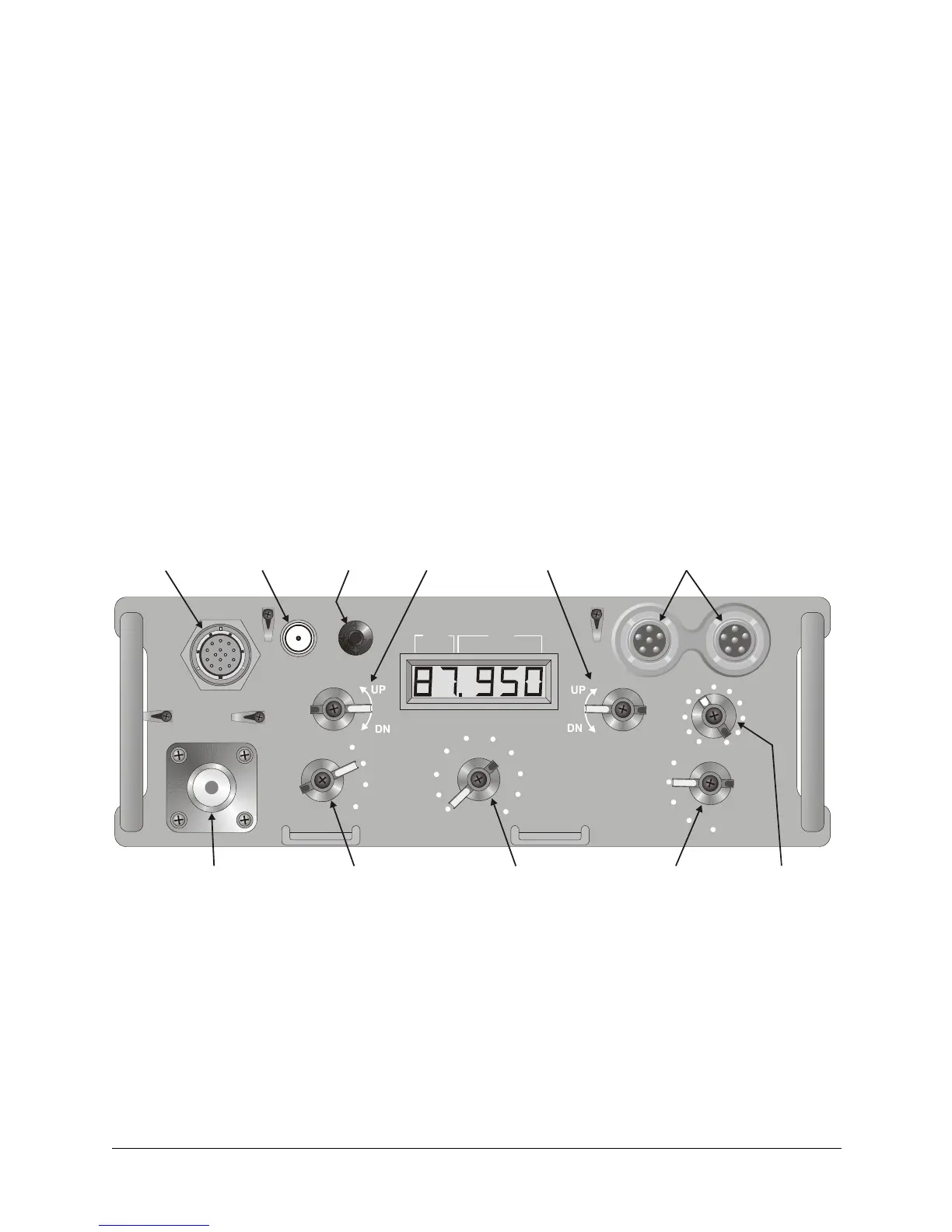

Figure 3-1. Front Panel Controls
ANT
CHAN
SET
MHz
KHz
ANT
MHz KHz
OFF
LO
HI
MAN
CHANNEL
LITE
RETX
SQUELCH
TONE
RX TEST
VOLUME
POWER
MED
AUDIO
0
10
5
5
6
7
8
9
1
2
3
4
Power
Switch
Function
Switch
Channel
S
wit
c
h
Tuning
Control
MHz
Tuning
Control
kHz
Channel
Set
Volume
Control
Audio
Connectors
Power
Connector
Antenna
Mount
Antenna
Connector
• LO (0.5W)
• MED (2.0W)
• HIGH (5.0W)
