2: Installation
2-22 PRC1077-MSOP
PRC-SPU-10
Solar Power
Generator
The PRC-SPU-10 Solar Power Generator can recharge a BB-LA6 battery
directly or while installed in a PRC1077.
To recharge a BB-LA6 battery:
1. Unfold the PRC-SPU-10 Solar power generator and position it for
maximum exposure to the sun.
2. Connect the C991613 cable to the PRC-SPU-10 and to the PRC1077 with
a BB-LA6 battery installed (refer to the figure above) or connect a
C991617 to the PRC-SPU-10 and directly to a BB-LA6 battery (refer to
the figure on page 2-23).
3. Allow several hours for charging a fully depleted battery.

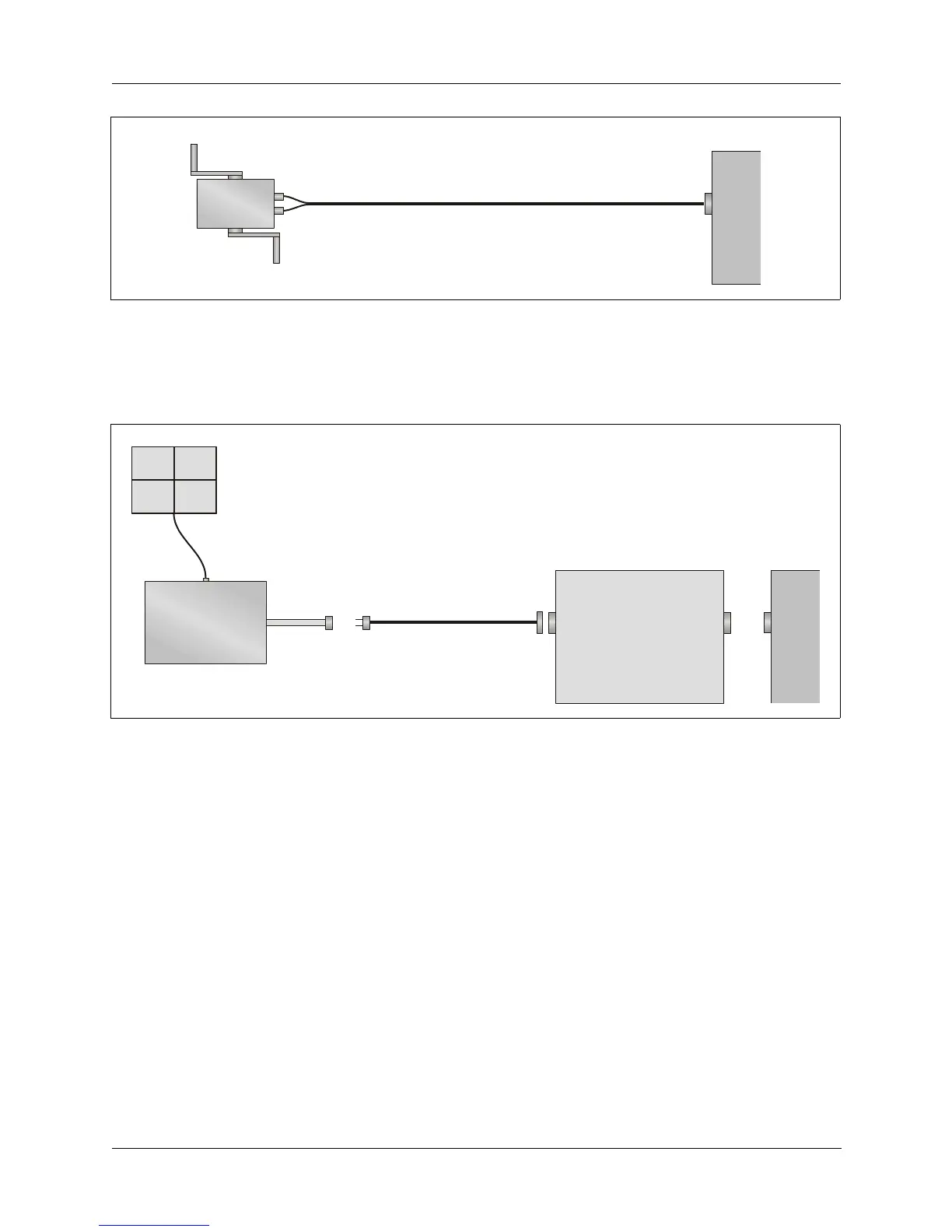

Figure 2-14. PRC-HC-30 Hand Crank Generator with Battery Connected Directly
BB-LA6
C991618
PRC-HC-30
Figure 2-15. PRC-SPU-10 Solar Power Generator with Battery Installed
J4
PRC1077
BB-LA6
C991613
POWER
PRC-SPU-10
