2: Installation
PRC1077-MSOP 2-17
50W Systems The PRC1077 50W fixed base system uses the same adapters and mounts as
the mobile systems, however the system includes a 28 Vdc power supply that
connects to 110 Vac source. The fixed base system also uses the same RF
amplifier and converter as the mobile system.

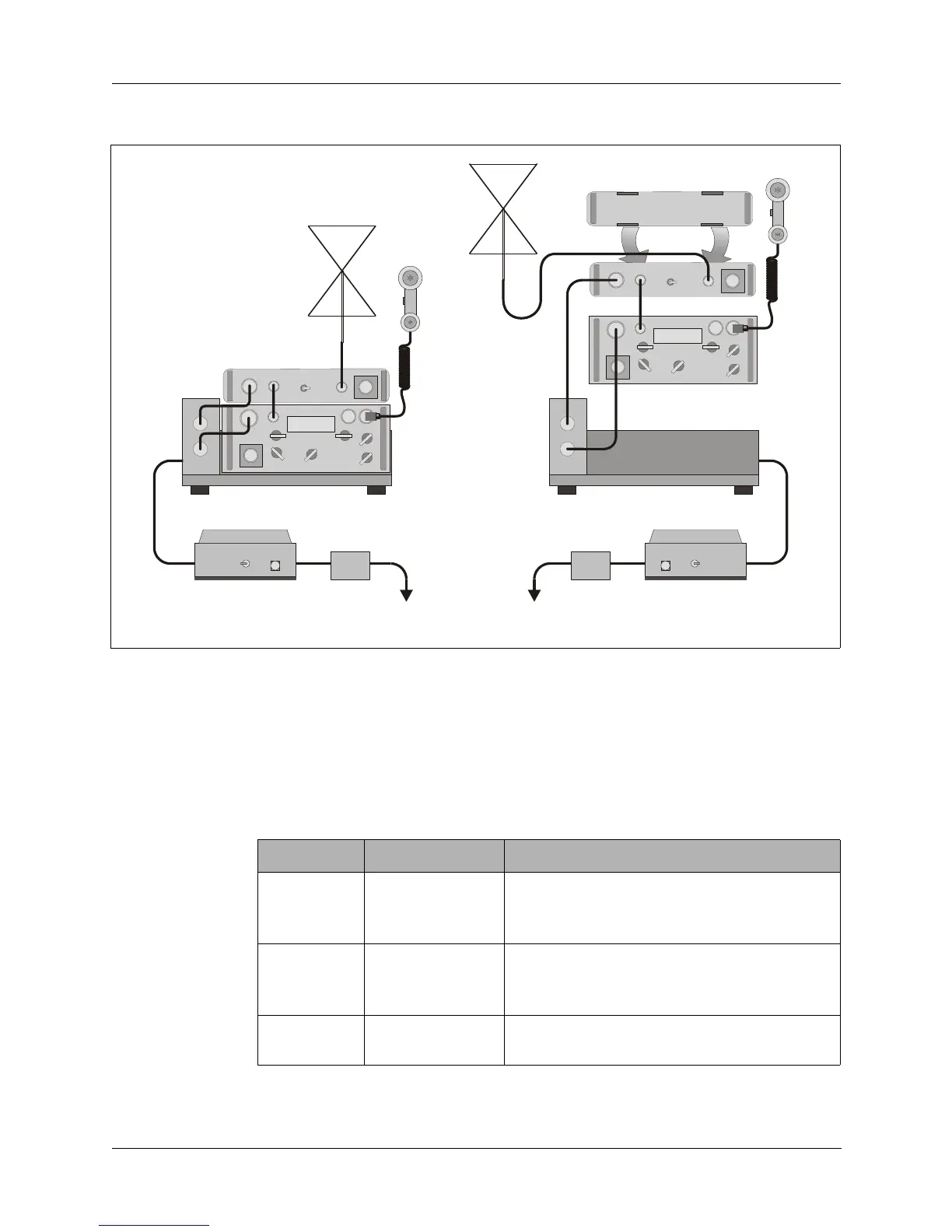

Figure 2-10. 50W Fixed Base System
MH
S
PRC1077
C991949
MT-1077-24
PRC1077
MHS
OE-254/GRC
OE-254/GRC
UPF7000A-28
ACLP120-15
to
110 Vac
sou
r
ce
to
110 Vac
sou
r
ce
A
M-1077ADPT
C991575
A
M-1077
C991577
C991579
C991575
C991614
AM-1077
Accessory Part Number Description
Antenna OE-254/GRC VHF antenna kit including 30 MHz to
87.975 MHz omni-direction antenna with
mast and transit bag
Adapters MT-1077-24 24 Vdc vehicular adapter with integrated
shock mount, includes antenna tuning
control and loudspeaker
Amplifier AM-1077 50W RF power amplifier (30 MHz to
87.975 MHz (24 Vdc power source only)
