Datron PRC1077 - Fixed Base Installation Guide

2: Installation
PRC1077-MSOP 2-15
Fixed Base Installation
The PRC1077 can be used in 5W and 50W fixed base station applications.
5W Systems The PRC1077 5W fixed base system uses the same adapters and mounts as the
mobile systems, however the system includes a 28 Vdc power supply that
connects to a 110 Vac source.

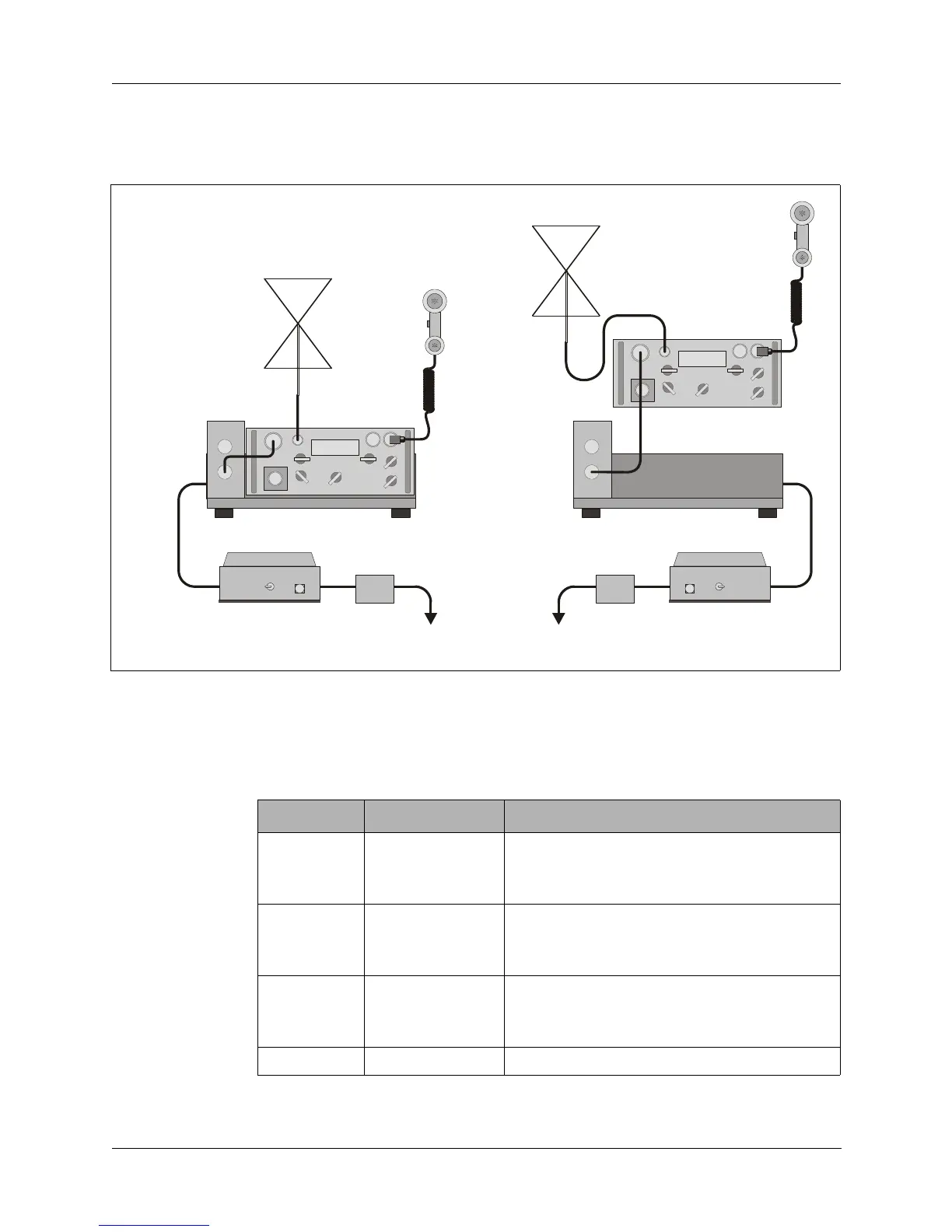

Figure 2-9. 5W Fixed Base System
MH
S
PRC1077
C991577
C991949
MT-1077-24
PRC1077
C991577
MHS
OE-254/GRC
OE-254/GRC
UPF7000A-28
ACLP120-15
to
110 Vac
sou
r
ce
to
110 Vac
sou
r
ce
C991614
Accessory Part Number Description
Antenna OE-254/GRC VHF antenna kit including 30 MHz to
87.975 MHz omni-direction antenna with
mast and transit bag
Adapters MT-1077-24 24 Vdc vehicular adapter with integrated
shock mount, includes antenna tuning
control and loudspeaker
Power
source
UPF7000A-28 28 Vdc power supply for radio with
ACLP-120-15 AC Surge Suppressor (120
Vac/15A)
Handset MHS H-189/U military handset
