Datron PRC1099A - Mode Knob Operation; Channel Knob Operation; Digit Knob Functionality

Figure 2-3
PRC1099A Mainframe

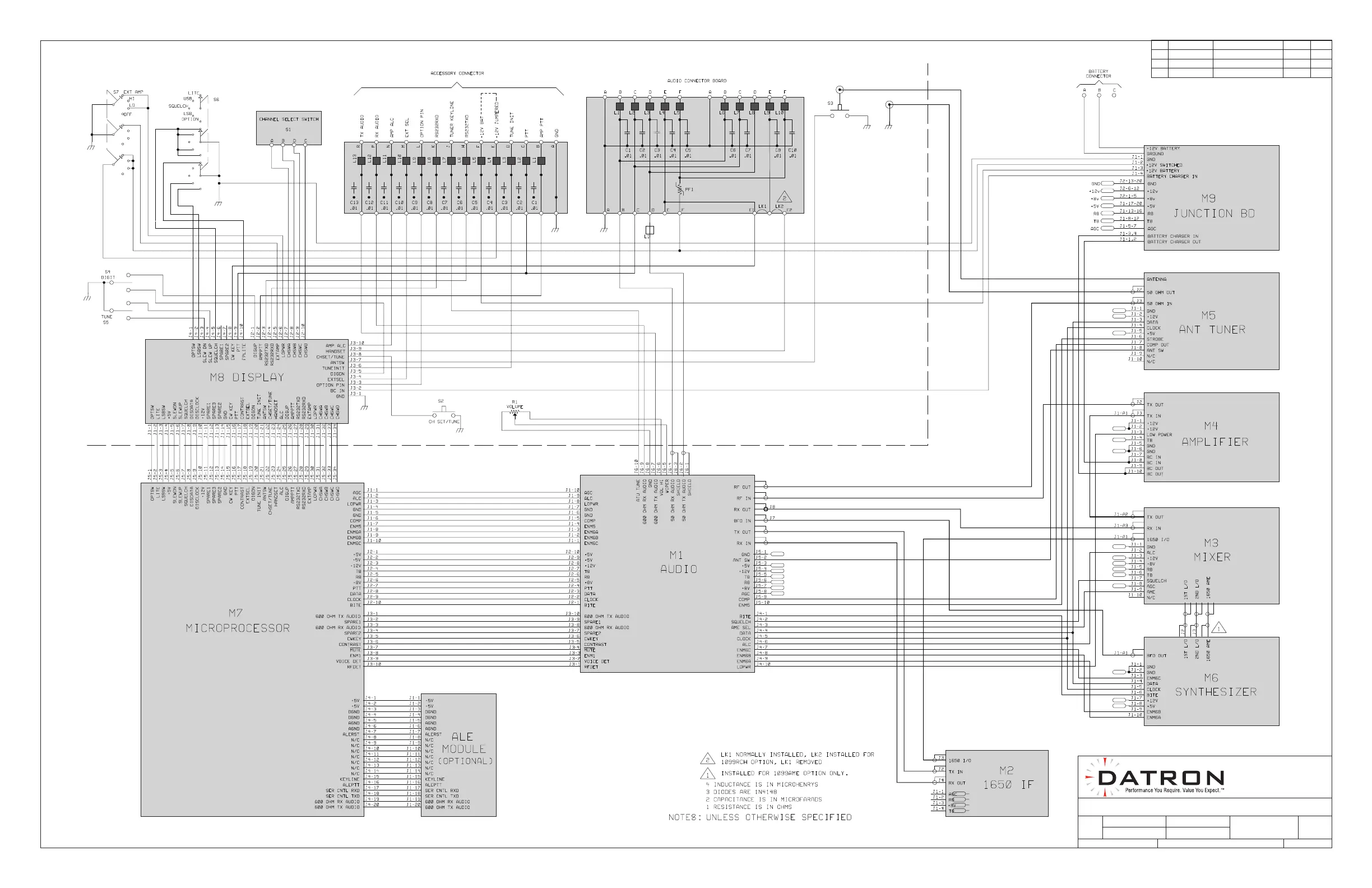

Wiring Diagram
(994171 Rev. C)
2-15
PRC1099A-MS
PRC1099 MAINFRAME
April 92
994171
C
Title:
Scale: NONE
Rev:
D
Schematic
Date:
Date:
Appr:
Drawn:
Size:
Drawing Number:
Sheet:
1 of 1
Datron World Communications, Inc.
3055 Enterprise Ct.
Vista CA 92081-8362
TEL:(760) 597-1500
FAX:(760) 597-1510
HALVERSON
REV ECN
DESCRIPTION
DATE
APPR
A
B
C
PRC1099-287
RELEASE
PRC1099-373
ADD FILTER TX AUDIO
9-21-92
11-9-95
10-20-10
10-0539
SEE ECN
